From Fredenstein Professional Audio

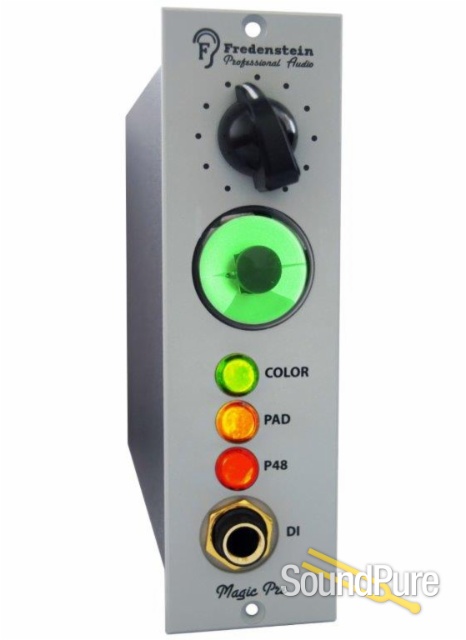

The MAGIC PRE microphone preamplifier's most obvious feature is the green glowing “magic eye” vintage vacuum tube for output level indication. The “Magic Eye” tube is perhaps the most attention grabbing visual feature of this preamp and something everybody notices in any rack. Besides being just fun and another way to impress clients, this visual treat complements the rich vintage character of the preamp. The “eye” closes near optimal output levels.
The preamp follows what may be thought of as a very traditional topology that uses both an input transformer and an output transformer. Both are high quality American made transformers. The steel-core output transformer in particular is a very important sound shaping component which helps produce a smooth vintage touch without being dark or just “mid-rangy” or mushy.
A single discrete amplifier is used for the active gain element and there are no chip based amplifiers in the signal path. To achieve an unusual high level of performance the circuit is based on our OPA2 discrete audio operational amplifier. As in all Fredenstein products, the OPA2 is not a copy of an older design, but is a completely new design manufactured in SMT technology with matched and integrated dual input transistors to guarantee vastly improved specifications compared to older designs. The OPA2, in the tradition of similar modules, is socketed and can be exchanged without tools. The industry standard pin-out makes it compatible with many other amplifier modules.
A 2 MOhms high impedance direct input is located on the front-panel, it accepts unbalanced signals, the rear microphone input is automatically disconnected when a plug is inserted in the DI connector.
The features include a maximum gain of 70 dB, a 20 dB Pad, and Phantom-Power support, plus a new feature simply labeled “Color”. The “Color” switch is intended to produce some tube-like harmonic content that, while not calling attention to itself, can bring some sounds to life and bring them forward in the mix and seem to make them sound more detailed and dimensional. While the color circuit does increase distortion, the audible effect is subtle enough that few people would ever describe the effect as “distorted”.
As all Fredenstein products, the Magic Pre is designed by a German-American team and manufactured in Taiwan.
- Frequency Response
- 20 Hz – 40,000 Hz, +/- 1 dB
Distortion
- 1kHz
- < 0.03% at +4 dBu output level
: < 0.015% at +20 dBu output level
: < 0.04% at +26 dBu output level (clips at +28 dBu)
- 50Hz
- < 0.08% at +4 dBu output level
: < 0.08% at +20 dBu output level
- 10kHz
- < 0.02% at +4 dBu output level
: < 0.05% at +20 dBu output level
- Input Noise
- < -127 dB
- Input Impedance
- > 1600 Ohms
- DI Impedance
- > 2 MOhms
- Max. Input Level
- + 10 dBu, Pad activated
- Max Input Level DI
- + 18 dBu unbalanced
- Output Impedance
- 600 Ohms Max.
- Output Level
- + 26 dBu
- Input Attenuator
- - 20 dB (switchable)
- Maximum Gain (XLR)
- 70 dB
- Minimum Gain
- 35 dB
- Minimum Gain 20 dB PAD engaged
- 15 dB
- Maximum Gain (DI)
- 42 dB
- Minimum Gain
- 8 dB
- Minimum Gain 20 dB PAD engaged
- -12 dB
- Current draw
- +100mA, -160mA
- Color Engaged Distortion
- approximately 0.1% at -10 dBu output level approximately 1% at -5 dBu output level approximately 3% at 0 dBu output level approximately 4.5% at +24 dBu output level
- Frequency Response
- : 20 Hz – 20,000 Hz, +/- 1 dB
