Fredenstein F602 500-Series Tube Compressor From Fredenstein
The F602 is a true tube compression powerhouse, with daisy-chaining, wet/dry mixing and internal tube preservation!
Special ends:
$919.20
Retail: $1,269.00
$229.80 Price Drop!
The price for this item has been lowered. Don't miss your opportunity to save!
"Experience the Difference"
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Rating: 4.8
Payments as low as $25/mo.
Manufacturer's Description from Fredenstein

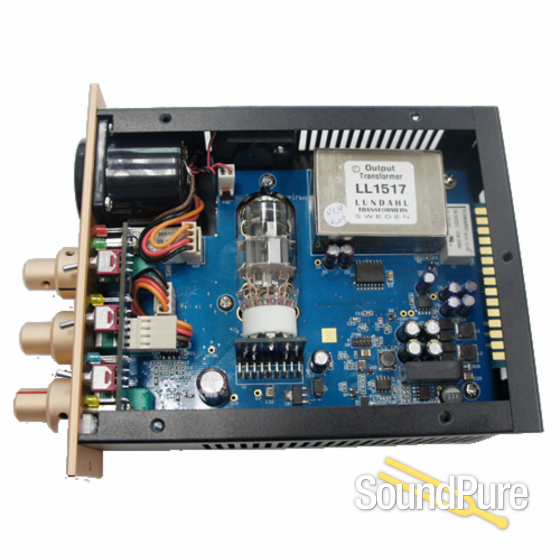

The F602 Compressor is a true variable transconductance (often falsely called “variable mu”) high performance tool for professional recording and mastering engineers. The F602 features the original remote cutoff double triode tube used in many vintage designs (Gates, Fairchild, and GE to name a few) called 6386LGP. The signal path is very short and delivers the smoothness you would expect from a great piece of vintage equipment. The innovative transformer-less input circuit yields clarity while the Lundahl output transformer adds character. The extreme low output impedance with its high current design allows even the most difficult and complex loads to be driven without sonic impact. A wet (compressed) and try (uncompressed) mixer further enhances the flexibility of the F602 Tube Compressor. In addition a true hard bypass, which also works, if the unit is powered down, was implemented as well as a standby switch allowing to shutdown the tube circuitry if the F602 is not in use while the rack is still powered, therefore extending the tube life cycle.
Up to ten units can be linked together to form a true multichannel compressor. The engineer can easily change the compression characteristics by tuning threshold, ratio, attack and release times as well as selecting an automatic release mode, which adjusts the release time dynamically according to the source material and input level. The main compression behavior can be switched between hard- and soft-knee. Up to 20dB of make-up gain is provided to compensate for the gain reduction.
The VU meter is selectable between gain reduction and output level. A clip LED indicates output levels above +24dBu. The whole package is delivered a single space API 500 series form factor. Due to the high powerconsumption of about 8W, not all lunch-boxes and racks are suitable for this module. Of course, Fredenstein boxes and racks are well equipped to handle these loads. As all Fredenstein products, the F602 is designed by a German-American team and manufactured in Taiwan.
About Manufacturer
Think about what is sonically missing in today's audio equipment and how you could achieve better results in recording and mastering? Now, many go back to well proven classic pieces of audio gear to fight the shortcomings of digital recording. Could that be the ultimate solution? Did the improvements in technology during the last 50 years really don't apply to recording? Using technologies from vacuum tubes to Digital Signal Processors, often in the same product, Fredenstein products combine the strength of each technology and avoiding their weaknesses. In addition we strongly believe in Zero-Negative-Feedback, negative feedback is a technique to make amplifiers more linear, but at the same time making them sounding harsh. This is one of the reasons modern equipment sounds so similar. Omitting negative feedback and using an internally and externally balanced designs which are very linear by design will yield a natural sound on a different level, warm, not dull or muffled, instead with a rich silky top-end and an impulse response will simply blow you away. Don't get us wrong, we are not talking about 「esoteric designs」, we believe very strongly in a scientific engineering approach.
We also provide pieces of long neglected equipment like precision analog meters. Even if you are working mostly inside the 「box」, metering your analog signal before it hits your converters is still very important and a great foundation for good recording. Fredenstein's state-of-the-art audio technology will help you throughout your chain to achieve truly outstanding results.
In addition, Fredenstein believes recording engineers deserve to have a more user friendly, more convenient and efficient pieces of equipment making the studio life easier and generate a more comfortable working environment. By minimizing the number of buttons and switches without sacrificing the functionality we deploy a clean user interface allowing you to get instantaneously familiar with the products.
Fredenstein Professional Audio Products are designed for audio professional in recording and broadcast studios as well as independent engineers and producers in their own facilities.
Fredenstein is focused to make a difference in Professional Audio. You can expect superior sound and high-end built quality from each of our products
Specifications
Reference Level: 0 db = +4 dBu (American Studio Standard)
Make-up Gain: 0 to +20 dB
Threshold: -25 dB to +9 dB
Attack Time Range: 250 us to 15.5 ms
Release Time Range: 12 ms to 5 s
Compressions Ratio: 2:1 to 20:1
Frequency Response: 20Hz – 20,000Hz, +/- 1dB
Distortion: < 0.01%
S/N Ratio: > 90dB at 0dB gain
Input Impedance: > 10KOhm
Max. Input Level: + 24 dBu
Output Impedance: 20 Ohm
Max. Output Current: +/- 200 mA
Max. Output Level: + 26 dBu
Power Consumption: +16 V +250 mA, -16V -200 mA
Downloads
Action
Name
Description
F602 Manual
Manufacturer's Manual.
