Manufacturer's Description from Ferrofish
The Center of Your Audio Universe

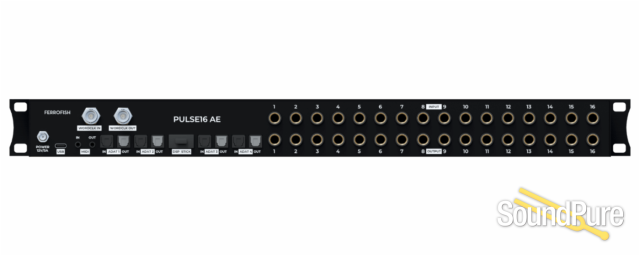

The Ferrofish PULSE16 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. With 16 high-quality balanced analog inputs and outputs, it ensures precise and clean signal conversion. The PULSE16 AE offers full visual control via its vibrant front-panel displays, simplifying real-time monitoring and configuration.
Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a 19″ 1HU rack form factor.
Studio-Grade Audio
Intuitive Visual Monitoring
The high-resolution front panel display provides immediate visual feedback of all input and output signals, offering professional-grade metering and system status at a glance. Multi-colored level meters ensure precise level monitoring in any environment.
Premium Conversion Architecture
Experience pristine audio quality through carefully selected ESS converters and temperature-compensated clock design. The PULSE16 AE maintains Ferrofish's reputation for exceptional sound quality, delivering crystal-clear conversion up to 192kHz with professional +20dBu headroom.
Professional Remote Control
Take command of your audio routing and settings through the comprehensive RemoteFish software for Mac and PC. The USB-C connection provides instant access to all parameters, while MIDI I/O enables integration into larger systems and ensures easy firmware updates for continued improvement.
Flexible Integration Hub
Beyond simple conversion, the PULSE16 AE serves as a versatile routing solution with its comprehensive ADAT connectivity and word clock synchronization options. The unit seamlessly bridges analog and digital domains, making it an ideal centerpiece for both studio and live applications.
Advanced Headphone Monitoring
The dedicated headphone output, powered by a separate ESS DAC, delivers exceptional monitoring capabilities with precise 1dB-step volume control. Four-stage amplification ensures compatibility with any headphone impedance, making it perfect for critical listening and tracking sessions.
Future-Proof Expandability
Thanks to its modular design, the PULSE16 AE is ready for tomorrow's challenges with DSP expansion capability. The optional DSP stick slot allows for future processing power upgrades, protecting your investment while offering a path to enhanced functionality.
About Manufacturer
Advanced Audio Applications. High-quality audio hardware. Innovative concepts for practical solutions.
Specifications
Analog I/O
- 16 balanced TRS inputs (¼-inch / 6.3 mm)
- 16 balanced TRS outputs (¼-inch / 6.3 mm)
- Headphone Output (¼-inch / 6.3 mm)
ADAT Connectivity
- 4 ADAT input ports
- 4 ADAT output ports
- Supports SMUX for higher sample rates:
- 32 channels at 48 kHz, 16 channels at 96 kHz, 8 channels at 192 kHz
Clocking
- Word Clock input and output (BNC connectors)
- Internal high-stability clock or external sync via ADAT or Word Clock
Routing
-
Per-channel routing
Signal Monitoring
- High-resolution front-panel displays for input and output level monitoring
- Multi-colored LED meters for clear visual feedback
Controls & User Interface
-
Front-panel control knob and buttons for quick navigation and setup
Connectivity
- USB-C and TRS-MIDI Type A for remote control via Ferrofish RemoteFish software, remote control via MIDI CC and for firmware updates
- Remote control via MIDI controller commands (MIDI CC)
- MIDI port for firmware updates and future features
Headphone Output:
- 6.3mm jack output
- Amplification power adjustable in four stages
- Digital volume control with 1 dB resolution
- Dedicated monitoring path via a separate ESS DAC
DSP Processing
-
Expandable via optional DSP stick
Digital-to-Analog Conversion
- DAC: ESS ES9017
- 32-bit / 192 kHz
- DNR: 120 dB
- THD+N: –110 dB
- Output impedance: 110 Ω
Analog-to-Digital Conversion
- ADC: ESS ES9840Q
- 32-bit / 192 kHz
- DNR: 116 dB
- THD+N: –108 dB
- Input impedance: 6 kΩ
Headphone Output
- ¼-inch / 6.3 mm jack output
- Amplification adjustable in four stages
- Digital volume control with 1 dB resolution
- Supported impedance range: 15 – 600 Ω
Dedicated monitoring path via separate DAC ES9023
Internal Word Clock
- 125 MHz high-precision oscillator
- Initial accuracy: ±1.5 ppm
- Temperature drift: ±2.5 ppm
- Aging: ±1 ppm
PLL (Phase-Locked Loop)
- Digitally controlled PLL with active jitter reduction
Power Supply
- Voltage: 12 V DC / 3 A
- Power consumption: 12 VA (nominal), <1 VA (standby)
- Connector: 2.54 mm barrel jack with locking screw
- Center-positive connector
- Included in the package
Fuse
- Internal polyfuse, self-resetting
Operating Conditions
- Temperature range: +5 °C to +45 °C
- Humidity: <75 %, non-condensing
Form Factor
- Rack-mountable 19“/1HU
- Dimensions: 50 × 4.4 x 19 cm
- Weight 2 kg
