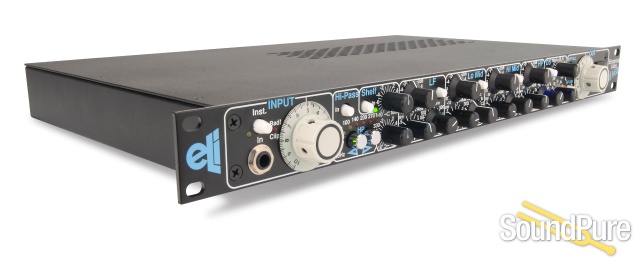

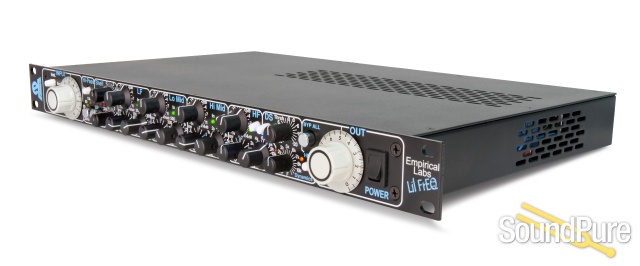

Empirical Labs Lil' FrEQ EQ  From Empirical Labs

Single channel 4 band EQ

Empirical Labs

$2,499.00

Retail:  $2,699.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $56/mo.

Manufacturer's Description from Empirical Labs

As with ELI’s other signal processors, the Lil FrEQ Equalizer takes a somewhat unique approach to its job.  Instead of daisy chaining several equalizers and frequency processors, we combined most of the sound sculpting tools an engineer needs into a compact single rack space box, while still offering the highest performance of any design in its class.

The EQ Sections

There are eight sections of processing – what other EQ offers that?  Even better - in addition to a master bypass, each of the Lil FrEQ’s sections features its own dedicated bypass switch, letting you instantly A/B the effect of each section as you adjust and fine-tune them.

HIGH PASS - The High Pass section is a really easy to use sharp filter that cuts all content below one of eight preset frequencies from 30-330 Hz. This filter is very steep and has a special shape that prevents frequencies from thinning out just above the cutoff point. The corner frequency is selected using up/down buttons, and indicated by LEDs that glow softly when the section is bypassed, and brightly when the section is engaged.

HIGH & LOW SHELVING - These two knobs function similarly to the familiar “bass and treble” tone controls found on many consumer audio playback systems; however, these are designed to a much higher performance standard, providing exceptionally smooth and musical boost and cut on the high and low frequencies.

PARAMETRIC EQ - The Lil FrEQ has four sections of fully parametric EQ (LF, Lo Mid, Hi Mid and HF), with each section featuring individual gain, bandwidth (Q) and frequency controls.  It may be the cleanest parametric EQ section ever produced, operating below .0007% THD (Total Harmonic Distortion) even at extremely high audio levels. Try finding those specs anywhere else!

DS (DYNAMIC EQ) - The DS section provides the highest performance, easiest to use, and possibly most natural sounding “De-esser” ever built.  This powerful tool combines tunable filters with a compressor-like circuit that can help contain and control excessive high frequency content such as sibilants or other sharp transients, especially in the absence of other lower frequency content.  It can also function as a one of a kind soft knee High Frequency limiter, which is one of the main things responsible for the Lil FrEQ becoming the go-to vocal EQ for engineers everywhere.  It has been used on many acclaimed albums and major live performances all over the world, becoming the “go to” EQ for key tracks like lead vocals, snares, and bass.  There are now dozens of hit record vocals that were processed through the Lil FrEQ.

We’ve packed an awful lot of power and flexibility into the Lil FrEQ. We know you will love it!

Empirical Labs

About Manufacturer

Empirical Labs Inc. (ELI), designs and produces professional audio equipment and software. This includes equipment used in recording studios, live sound, broadcast studios and other audio production facilities etc. We also make software for digital signal processors. Most of you are here because you have heard about or used our Distressor. This product, which is our first hardware product, was designed in 1994, tested and revised for several years, and released in early 1996. The Distressor is the first in a series of audio products from ELI that will offer original features, ease of use, long product life, and a very musical audio path. Empirical Labs was started in 1988 and functioned mainly as a recording studio and electronics consulting firm. The founder, Dave Derr, was also employed at the time by Eventide as an audio engineer. Dave was part of the core design team for the H3000, H3500, and DSP4000. His experience at Eventide proved valuable for his later work. While working alongside Ken Bogdanowicz and Bob Belcher (both now at Wave Mechanics), Dave was exposed to great engineering and the modern world of digital signal processing (DSP).

Specifications

• Freq. Response - 5 Hz to 140 kHz on transformerless inputs and outputs.

• Transformer Output response is 10 Hz to 110 kHz .

• Dynamic Range - 120 dB from maximum output (.1% clipping) to minimum output. Greater than 110 dB signal to noise.

• Distortion Ranges between .00056% and .005% depending on mode and settings. DS section has THD < .005%.

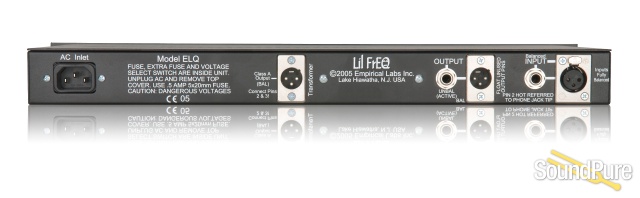

• DC coupled Input and Outputs and one transformer coupled output.

• High quality audio caps used internally.

• Dynamic Time Constants - Attack is approximately .5 mS. Release .04 sec, fixed internally.

Downloads

Action

Name

Description

Lil FrEQ Owner's Manual
