Dr. Z Z-PLUS 15w 1x12 Combo #43188 - Used  From Dr. Z

Built in collaboration with Joe Walsh and taking into account his love of small, tweed amps, the Z-PLUS is a truly modern take on classic sounds.

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Dr. Z Amplification

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

What We Think

Condition: Used, Excellent

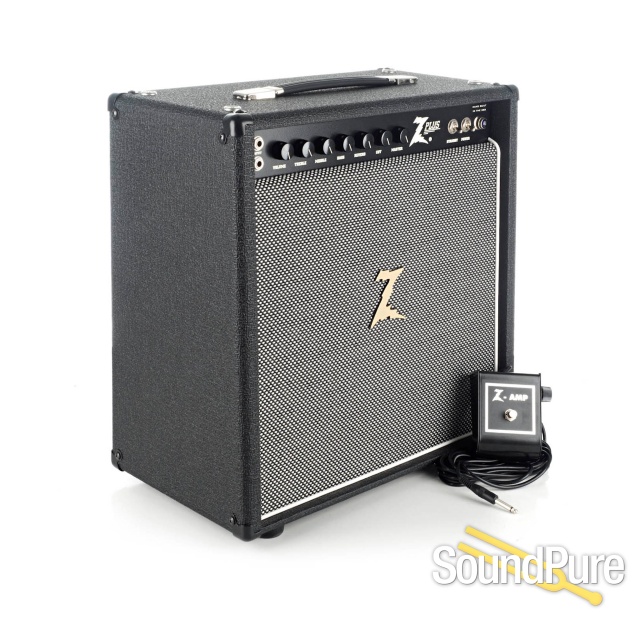

The Z-Plus is the combo that can really do it all. Rooted in the American amp-building tradition, but capable of so much more. Plenty of headroom and shimmering harmonic content in the 15 watt setting, with the ability to switch over to the 7 watt mode for more grit. This amp also comes with a great boost pedal that delivers absolutely killer lead tones. The Dr. Z Z-Plus can handle just about anything you throw at it, from the bedroom to the stage!

Manufacturer's Description from Dr. Z

When Joe Walsh approached Dr. Z for a new amp to use on the latest Eagles’ tour, he harkened back to the legendary recordings with the James Gang, where Joe was using small, single ended Tweed combos. Never one to be satisfied with rehashing old designs, Dr. Z and Joe Walsh upped the ante by looking to hi-fi audio amplifiers; from this the Z-PLUS was born.

The Z-PLUS is a parallel, single-end amplifier in true Class A configuration, which yields a rich clean tone that smoothly overdrives into gritty, harmonic-laden distortion. Single-ended, Class A operation produces full even-order harmonics which are typically cancelled in traditional push-pull, Class A/B tube amp designs. The result is sparkling and satisfying tone with the full range of 2nd and 4th order harmonics with clarity akin to an full bodied, acoustic guitar. While typically class A designs are limited by lower clean headroom, the Z-PLUS utilizes two 6V6 power tubes in parallel which increases clean headroom, per Joe Walsh’s request.

For the best of both worlds, the inclusion of a half-power switch drops the second 6V6 out of operation, rewarding you with touch responsive drive, dynamic compression, and lowered headroom. All of the typical Dr. Z features are included: full EQ with master volume and cut, hi and lo sensitivity inputs, an effects loop, a rich reverb circuit, and our variable boost footswitch. The output transformer is a special design for this amp, constructed with the highest grade M-6 stacked laminates, coupled with our custom all-aluminum chassis, and built like a tank to UL-60065 specifications. The Z-PLUS is available in our standard Ultra-Lite 1×12 combo or smaller studio-lite combo with either a ceramic Z12 Eminence designed speaker, or an upgraded Celestion Alnico Blue.

Dr. Z Amplification

Specifications

Model: Z-PLUS

Serial: 43188

Year:

Power Output: 7/15 Watts (half power mode)

Output Tubes: 2 x 6V6 (Class A, Cathode Biased)

Preamp Tubes: 4 x 12AX7, 1 x 12AT7

Rectifier: 1 x 5AR4

Speaker: Celestion G12M 12" Speaker

Controls: Volume, Treble, Mid, Bass, Cut, Master Volume, Reverb

Other: 4, 8, 16 Ohm / Effects Loop / Variable Boost Footswitch / Parallel, Single-Ended Design

Width: 19 1/4"

Depth: 10 1/2"

Height: 19 1/2"

Weight: 38.5 lbs
