Sound Pure's Take
Condition: Used, Excellent
From Sequential
It’s a Polyphonic Mopho Keyboard!
The Mopho x4 builds upon the same award winning voice architecture of the Mopho and Mopho Keyboard, the Mopho x4 boasts huge sound and 4 voice polyphony in an ideally sized, portable, and elegantly designed package. Use it to create huge unison basses, creamy leads, percolating sequences, and ethereal pads.
4 Times the Voice 4 Your Pleasure
Each of Mopho x4’s four voices is composed of two analog oscillators, two sub octave generators, selectable 2- or 4-pole famed Curtis low-pass filter, three 5-stage envelope generators, four LFOs, a re-latchable arpeggiator, and a 16 x 4 step sequencer. Its voice also comes packed with 20 modulation sources and almost 50 destinations!
FM the filter to create metallic bell-like sounds and use the feedback path to add subtle or destructive harmonic content to your sound. Mopho x4’s 100% analog signal path is powerful, monstrous, and sonically dynamic!
Work Less, Play More

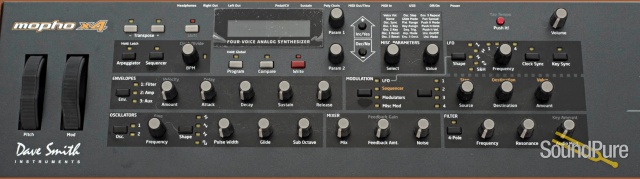

Mopho x4 is intuitive and inviting. Every parameter is fully programmable and editable from the front panel. The controls are logically laid out, lending themselves to quick access so you can tweak knobs without missing a beat. The x4’s full sized 44-note semi-weighted keyboard has aftertouch and velocity sensitivity. The sturdy full sized pitch and mod wheels are freely assignable and sport smooth reliable action.
The Mopho x4!
Dave Smith Instruments is the only company pioneering and producing fully programmable polyphonic analog synthesizers. In fact Dave’s been at it for 35 years!
Designed and manufactured in San Francisco, Mopho x4 has the high quality sound and build for which DSI is renowned. From its feature packed analog voices and unmatched sonic versatility to its refined design and engaging interface, you won’t find a polyphonic analog synthesizer like this anywhere else.
Mopho x4 Specifications
100% analog signal path
Two oscillators per voice capable of producing sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync
Two sub-octave generators per voice (one octave below oscillator 1 and two octaves below oscillator 2)
One classic Curtis low-pass filter per voice (switchable 2- or 4-pole) with audio rate modulation, self-oscillating in 4-pole mode
Analog VCAs
Three envelope generators per voice (ADSR plus delay)
Feedback loop per voice with programmable level and gain
White noise generator
4 LFOs per voice
Gated 16 x 4 step sequencer per voice (one sequence per program)
Arpeggiator
- Glide (portamento)
- separate rates per oscillator
Full-sized, 44-note (F to C), semi-weighted keyboard action with velocity and aftertouch
Full-sized modulation wheel and spring-loaded pitch wheel
Fully programmable with four banks of 128 read-only factory programs and four banks of 128 user programs (1,024 total)

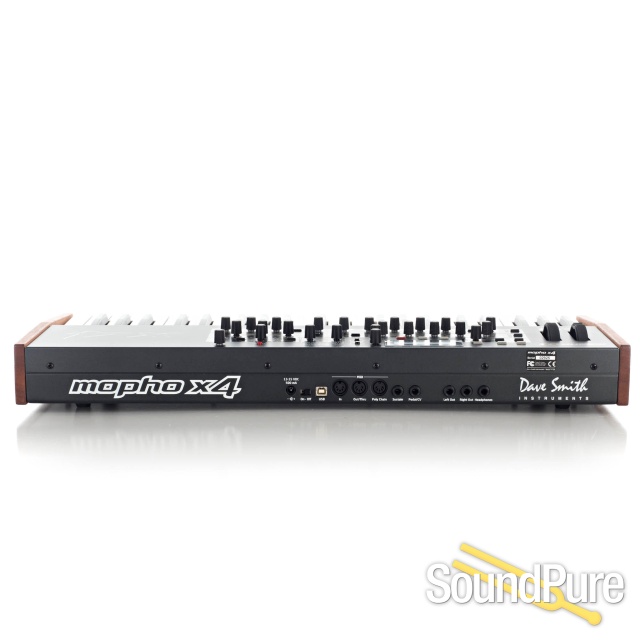

IN/OUT
USB type B receptacle
MIDI In, Out/Thru, and Poly Chain
- Left and Right audio outputs
- 1/4″ phone jack (unbalanced)
Sustain pedal input (accepts normally on or off momentary footswitch with 1/4″ phone plug)
Expression pedal/control voltage (3.3 VDC max.) input (1/4″ TRS phone jack)
- Headphone output
- 1/4″ TRS stereo phone jack
PHYSICAL SPECS
- Dimensions
- approximately 25.2″ L x 11.1″ W x 3.6″ H (64 cm x 28.2 cm x 9.1 cm)
- Weight
- 13.5 Lbs
INCLUDED Power supply for 100V – 240V AC operation
Operation manual
Free software editor for Mac OS and Windows available from SoundTower
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
