The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16® digital snake and audio distribution systems. Digital audio transmitted to the AN-16/o v.4 via Aviom's A-Net® Pro16 digital audio transmission protocol is converted to analog using 24-bit, 48kHz converters.

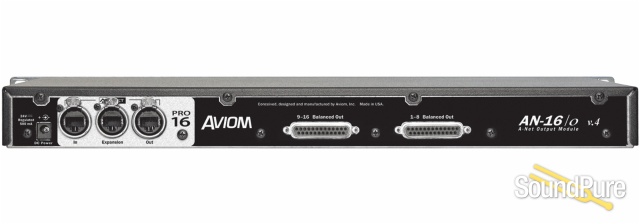

Sixteen balanced outputs are provided on the rear panel via DB25 multi-pin connectors. The DB25 connectors are wired to the analog standard, allowing you to purchase whatever cable length and connector format suits your application. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.
Connecting to Wireless In-Ear Monitors
In personal mixing systems using the A640 and/or A360 Personal Mixers with the D800 or D800-Dante A-Net Distributors, the AN-16/o v.4 simplifies connections to wireless IEM systems.
Each A640 or A360 Personal Mixer sends its stereo mix output back into the network which appears as a pair of channels on the AN-16/o v.4. Each AN-16/o v.4 supports up to eight A640 or A360 mixers. Simply patch the analog outputs on the AN-16/o v.4 into the IEM transmitter's inputs. No analog cables are required at the A640 or A360 on stage. Learn more about Network Mix Back.
Digital Snakes and Audio Networks
Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.
- Audio Outputs: 16 channels, balanced
- Outputs:
- DB25 multipin connectors (2); Tascam® analog audio pinout
- Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu
- Breakout cables are not included
- D/A Conversion: 48kHz sample rate, 24 bit
- Frequency Response: 4Hz-22kHz
- A-Net Input/Output: one EtherCon Category 5 (RJ45 connector)
- A-Net Expansion: one EtherCon Category 5 (RJ45 connector)
- Output Level Settings:
- Four-position switch, per channel pair;
- +24dBu, +18dBu, +4dBu, and Mic
- Channel LED Indicators: Signal Present and Clip, per channel
- MeteringLEDs; green: Signal Present; red: Clip; per channel
- Maximum Output Level: +24dBu
- Output Impedance: 226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
- Freq. Response: 4Hz-22kHz +0.2dB/-3dB
- THD +N: < 0.004%
- Crosstalk: -90dB
- Bit Error Rate (BER): 10(-12)
- Signal to Noise (unweighted):
- 92dB typical, A/D to D/A
- Measured from AN-16/i to AN-16/o v.4 Output Module
- Digital Connections:
- A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
- Neutrik EtherCon connectors
- A-Net Pro16:
- A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable;
- uses unshielded Cat-5e UTP (or better) cable
- Latency: <0.620 msec (measured from analog input to analog output)
- Power Supply: External, DC, universal switching type
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: 24 VDC, 0.5 amp
- Plug Size: 2 mm
- Power: 24 VDC, 500mA
- Dimensions:
- 19" (482.6 mm) wide x 5.75" (146 mm) deep;
- 1U high
- Weight: 6.8 lbs. (3.08 kg)
- Options:
- SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
- DB25 breakout cables
