Item selected is discontinued (details below). Related products available now:

Avalon M5 Single Channel Solid State Mic Preamp Used  From Avalon

Single Channel Solid State Mic Pre, the predecessor to the AD 2022. Includes the Avalon RM-1 Rack System.

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Avalon Design

Discontinued, No Longer Available

This item has been discontinued and is no longer available. Sometimes we will get our hands on a leftover or used unit.

Our experts can recommend to you the best alternative for your needs and keep in touch about used arrivals.

Want to know if one shows up?

Notify Me

Want to discuss alternatives?

What We Think

A no bells, no whistles, straight forward, high-end single channel raw preamplifier from Avalon. This box is very clean, and quite is transparent. Unfortunately, due to the introduction of the sonically superior Avalon AD2022, most people are saving their money for that stereo preamp. But for those of you looking for an extremely high quality, clean single-channel preamp for around a grand, this is still one of the best choices!

Manufacturer's Description from Avalon

Avalon microphone preamplifiers have been in use around the world since 1986. All preamplifiers share the combined technologies of low ratio transformer balanced inputs coupled with high-voltage cascade FET twin bipolar discrete class A amplifiers.

M5 FEATURES:

  • Pure Class A, 100% discrete design
  • Smooth musical detail and sonic excellence
  • Minimum audio signal path
  • High performance input transformer
  • Microphone and Hi-Z  inputs to +36dB
  • Very low noise -126dB
  • High headroom +30dB
  • Gain switched in 2dB steps to +64dB
  • DC coupled Pure Class A output
  • Large illuminated professional VU meter
  • Twin LED peak signal indicators
  • Regulated +48v phantom power supply
  • Low distortion less than 0.5% THD and IMD
  • Variable passive high pass (bass cut) filter
  • All signal routing with sealed silver relays

SONIC EXCELLENCE

The Avalon M5 Pure Class A microphone preamplifier is the most musical, low noise full function preamplifier available today. Designed to optimize absolute signal integrity and musical performance, the M5 combines an advanced transformer input stage with twin high performance Class A cascode FET and bipolar discrete amplifiers for sonic excellence unequaled by lesser designs. The M5 is ideal for vocal and acoustic instruments,  active DI input for the direct recording of bass, guitars and keyboards.

Features include state-of-the-art, balanced 100% discrete, Pure Class A signal amplifiers, practical user features and rugged hardware designed to deliver true high performance audio for many years.

DESIGNED FOR ULTIMATE MUSIC RECORDING

Avalon preamplifiers have been in use since 1986.  They have found their way into the world's most famous lead vocalists recording sessions and studios and been featured on thousands of the best selling (and sounding) albums and live performances.

MINIMUM SIGNAL PATH DESIGN

Avalon's advanced true symmetry design offers high-voltage, large headroom, extended bandwidth and very low noise. The use of 100% discrete, Pure Class A signal amplifiers give the serious music professional unlimited sonic character and a natural harmonic detail that enhances the program material and becomes one with the music itself.

VOCALISTS DREAM MACHINE

The M5 microphone preamplifier is the first choice when you are looking to capture a full bodied, dynamic, musical performance from the intimate depths within the artist.  The M5 will make your recordings musical masterpieces!

Avalon Design

About Manufacturer

Wynton R. Morro founded Avalon with the desire to bring the art of music recording closer to the essence of the original performance. Avalon's pure Class A recording systems provide the world's leading engineers, producers and musicians with state-of-the-art electronics designed especially for high-fidelity music and sound recording, These carefully engineered systems enhance the creative senses and become one with the music itself. Avalon systems utilize 100% discrete, high-bias pure Class A audio amplifiers. These pure Class A amplifiers are incorporated into minimal signal path designs which include sealed silver relays, balanced DC coupled high-current "outside-world" drivers, fully discrete linear DC regulators, low noise toroidal power transformers and selected high quality active and passive components. This powerful combination of design features gives increased musical headroom and greater dynamic transient capability for a truly transparent audio passage. Avalon's unique design features, highest quality components and continued pursuit of sonic excellence assures the most harmonious musical signal transfer available today. Whether you are recording a solo vocalist, capturing the delicate nuance of an acoustic instrument, mastering music and film productions or recording symphonies, let Avalon take you to the leading edge in analog and experience sonic reality like never before!

Specifications

M5 SPECIFICATIONS
  • Circuit Topology: Twin cascode FET and bipolar low level input signal stages. High-voltage, 100% discrete, symmetrical high-bias Pure Class A amplifiers.
  • Input Type and Load:Superior transformer, balanced low-ratio 1500 ohm input load.
  • Maximum Mic Level:+36dB balanced XLR pin 2 hot (with -20dB passive attenuator).
  • Maximum Instrument Level+30dB balanced 600 ohms, DC coupled, discrete Class A.
  • Input Attenuator:-20dB resistive pre transformer primary, sealed silver relay.
  • Phantom Power:+48v regulated 50mA capability, sealed silver relay.
  • High Pass Filter:Passive, variable from 30Hz to 185Hz @ 6dB per octave, sealed silver relay.
  • Polarity Reverse:Sealed silver relay on  microphone input.
  • Gain Range Input:+20dB to +64dB in 2dB steps.
  • Maximum Output Level:+30dB unbalanced 600 ohms, DC coupled, discrete symmetrical Pure Class A.
  • Output Type:XLR connector, pin 2 hot (optional balanced JT-1 transformer).
  • Noise EIN Unweighted:-126dB 150 ohm.
  • Noise 20kHz Unweighted:-100dB
  • Distortion THD, IMD:0.05% nominal
  • Frequency Response -3dB:1Hz to 120kHz transformer limit.
  • System Bandwidth:DC to 1MHz
  • Output Meter:High quality, illuminated analog VU meter 0dB = +4dB.
  • Peak Meter:Bi-color LED's 0dB and +20dB peak detection circuit.
  • M5 Dimensions:8.5 x 3.5 x 12 in (216 x 88 x 305mm) half rack width.
  • Weight:15lbs (6.8kg)
  • Dimensions of Shipping Carton:24 x 21.5 x 7.5 in (610 x 546 x 190mm)
  • Weight-Packed:25lbs (11.4kg) includes B2T power supply and cables.
  • AC power supply B2T:External toroidal 100V to 240V, 50-60Hz selectable,
  • 150 watts maximum.
  • Cables:1 x 8ft 4 pin ac cable, 1 x 8ft standard IEC cable included.
  • Dimensions:5 x 7 x 3.25 in (127 x 177 x 83mm)
  • Weight:7lbs (3.2kg)

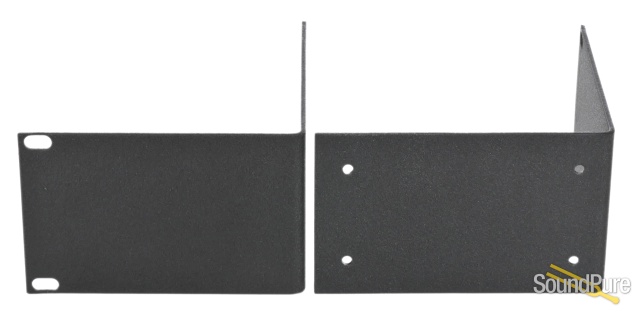

  • Rack mount kit (1) RM-1:Single M5 19 inch rack mount kit (holds one half rack unit).
  • Rack mount kit (2) RM-2:Dual M5 19 inch rack mount kit (holds two half rack units).
