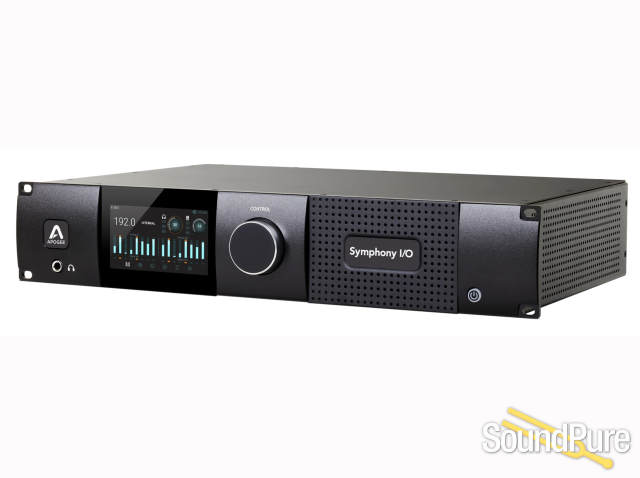

Apogee Digital Symphony I/O MkII 16x16SE Pro Tools HD Plus  From Apogee

Integrate Pro Tools HD Technology into Apogee’s flagship converter system, the Symphony MKII!

Apogee Digital

$6,045.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $137/mo.

What We Think

How do you improve upon one of the best sounding multi-channel converters on the market? That was the goal for Apogee’s exciting new Symphony I/O MKII, which features a sleek new touch screen display, a standard Thunderbolt connection option, and further improved converter technology. Additionally, Apogee plans to add connectivity options through HD and SoundGrid expansion cards later this year, giving the Symphony system even more compatibility with a huge amount of existing systems. One of our absolute favorite improvements to the Symphony design is a quieter cooling fan. The fan on the previous model was known to have occasional noise issues when recording quieter, more intimate sources in the same room as the Symphony system, so this improvement is sure to make the lives of home-studio engineers after pro-level converter technology much easier!


Manufacturer's Description from Apogee

NOW OPTIMIZED FOR ATMOS

Mixing for Dolby Atmos and other immersive 3D formats is rapidly becoming an essential skill for the modern creator and engineer.  As streaming services highlight immersive content and record companies require immersive audio deliverables, you may be asking yourself “how do I get started”?

With Symphony I/O Mk II Thunderbolt’s Monitor Workflows, you’ll effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs.

Optimize Your Workflow

Within each Monitor Workflow, you design the audio flow from your DAW outputs, Symphony internal mixers and hardware inputs to your expanded speaker array. Use these features to customize your Workflow:

  • Source Routing - Choose Playback (from your DAW), Mixer or Hardware inputs sources for each Speaker output pair.
  • Speaker Sets - Create up to 3 Speaker Sets, then instantly toggle between them from Symphony Control software
  • Speaker Level Trim - Creating the perfect level balance between all your speakers
  • Speaker Mute/Solo - Resolve issues in your configuration quickly with mute and solo buttons
  • Speaker Status Icon- Color coded icons let you see your active speakers at a glance
  • Easily Configure and Access up to 16 Monitor Workflows

In the modern production environment, you need to be able to completely reconfigure your monitoring system at the touch of a button. Symphony I/O Mk II allows you to create up to 16 Monitor Workflows, then instantly toggle between them from Symphony Control software, the front panel touchscreen, or the Apogee Control hardware remote.

Plug and Play Atmos with Logic Pro X

Getting started with Dolby Atmos has never been easier using Logic Pro 10.7 and Symphony I/O Thunderbolt! In the past, setting up your Dolby Atmos studio was a multi-day affair, but now it’s plug and play with the latest from Apple and Apogee.

Get Started Right Away

With such flexible monitor controller functionality incorporated at no extra cost for current and future owners, Symphony I/O Mk II Thunderbolt makes the best cornerstone of your Dolby Atmos or other immersive audio studio.

Multi-channel Audio Interface for Waves SoundGrid® Systems

Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems.

Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation.

A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear.  Need even more channels?  You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.

Highlights:

  • Best performance of any multi-channel Pro Tools HD interface

  • Best cost per channel value of any Pro Tools HD interface solution

  • Connects directly to any Pro Tools HD system (Mac or PC)

  • Emulates Avid HD I/O interface, including sample-accurate delay compensation

  • Connect multiple units in a single system (1 unit per HD port)

  • Easy I/O calibration with front panel touchscreen

Apogee Digital

About Manufacturer

Apogee was founded in 1985 and initially made its name designing filters. Later, Apogee's complete conversion systems pushed the envelope of digital audio quality and solved many of the early problems with digital audio technology. Apogee converters have become regarded as the reference standard for digital audio conversion. Products such as the award-winning Rosetta 800, AD16x and DA16x  have become the modern benchmark by which digital audio conversion is judged. A new generation of Apogee products including the revolutionary Symphony I/O, with its modular design and flexible connectivity,  promise to extend the Apogee legacy and further advance the art of digital audio.

Specifications

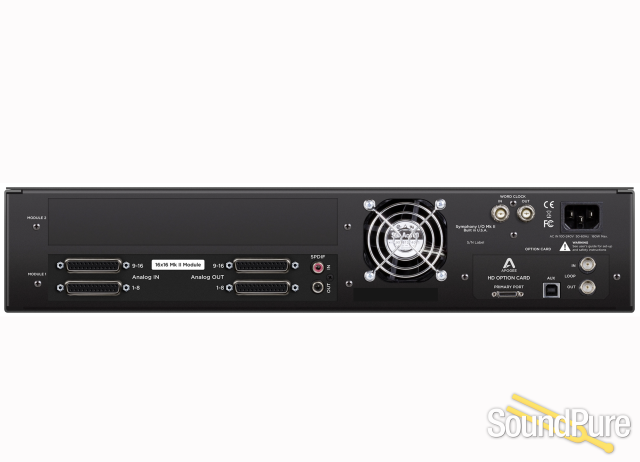

INPUTS

  • Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
  • Coax IN: S/PDIF on 1 RCA connector

OUTPUTS

  • Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
  • Coax OUT: Supports SPDIF on 1 RCA connector

Analog to Digital:

  • THD+N: -115dB @ 22dBu (0.00020%) unweighted
  • Dynamic range: 122dB A weighted
  • Maximum input levels:
    • +4dB setting: +24dBu
    • -10dB setting: +6dBV
  • Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
  • Input impedance: 10K

Digital to Analog:

  • THD+N: -119dB @ 21dBu (0.00014%) unweighted
  • Dynamic Range: 126dB A weighted
  • Max output levels – ∞ to +24dBu
  • Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
  • Output impedance: 50 Ohm
  • Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)

Headphone Output:

  • 1 stereo 1/4″ headphone output on front panel
  • THD+N:
    • -110dB @19dBu into 600 Ohm (=80mW)
    • -101dB @14dBu into 32 Ohm (=470mW)
  • Dynamic Range: 121db A weighted
  • Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones

Power:

  • 90-240VAC, 50-60Hz, 150W

Package Contents:

    • Symphony I/O Mk II Interface
    • Power Cable
    • Quick Start Guide
    • Warranty Booklet

Symphony I/O Mk II Dimensions:

    • Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
    • Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9

Packaging Dimensions:

Symphony I/O Chassis Box

    • Inches: 22.875 x 17.75 x 9.25
    • Centimeters: 58.1 x 45.1 x 23.5

I/O Module Box

    • Inches: 13.75 x 12.25 x 3.25
    • Centimeters: 34.9 x 31.1 x 8.3
