All Acoustic Image integrated amplifiers are based on a superb class-D power amp that delivers 300 Watts into 2 ohms (Clarus amps), 350 Watts into 2 ohms (Clarus SL amps) or 600 Watts into 4 ohms (Focus amps) and on a sophisticated, sensitive preamplifier. The features of the preamp and the power amp configuration define the specific amp model.

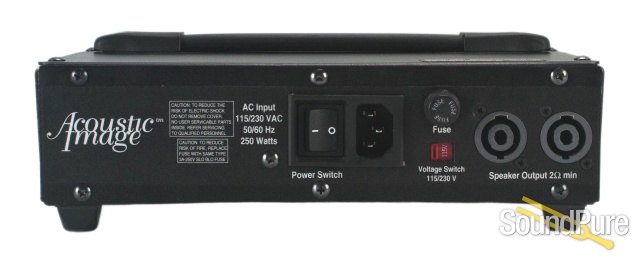

The power amp is a high-efficiency design that requires no external heat sinks or cooling fans and is capable of driving loads as low as 2 ohms (4 ohms for Focus amps). AC power and output speaker jacks are located on the rear of the enclosure. A standard, three-prong detachable AC power cord is used to provide power to the unit, while an AC voltage selection switch allows the unit to operate at 115V/60 Hz or 230V/50 Hz.

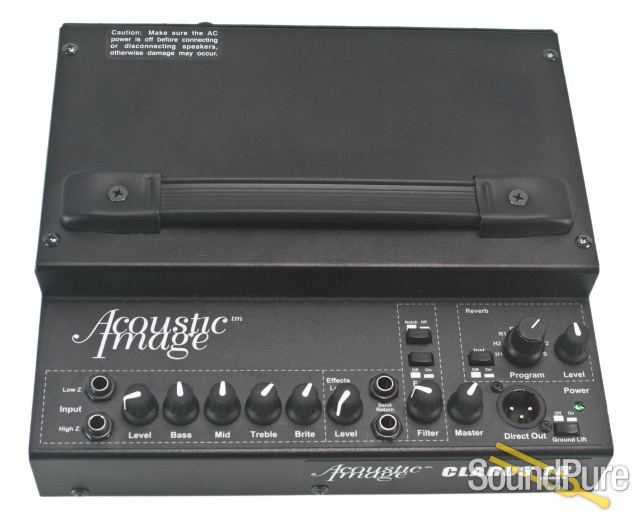

Depending on the model chosen, your preamp offers an instrument channel alone or instrument and microphone channels, with or without an 8-program digital reverb (the Clarus SL·R uses the same reverb with three program options). All of our preamps incorporate a four-band EQ per channel, high and low impedance instrument inputs (to optimize the sound of piezo-type pickups), an effects loop with return level control, and a selectable notch/high pass filter for feedback control and reduction of low frequency boominess--along with a direct out capability with ground lift and a master level control. The Clarus SL’s do not have the return level control, notch/high pass filter or the direct out ground lift.
Yours is a high fidelity amplifier with full-range frequency response and low distortion and noise that will accurately amplify your sound. Onboard EQ is sufficient to overcome room acoustics and subtly shape the sound of your instrument. However, you should note that our amps are not designed to play at tonal extremes or with a distorted output. To achieve these, use an external effects box.
Although Acoustic Image is a relatively young company, it is owned and operated by people with decades of experience in the professional music and sound industry. They're engineers (and, like their customers they're also musicians) who insist upon superior sound quality and reliable performance from our audio equipment. Acoustic Image was founded because they were never satisfied with the products available for the working musician. If you play guitar or bass, violin, keyboard, a woodwind or even a brass instrument, or you are a vocalist, they've got a sound reinforcement product designed with you in mind. Great product designs go far beyond having the right knobs in the right places. Acoustic Image’s company charter is to design and build unique, innovative, and functional audio products... there is nothing "me too" about what they do. In essence, they have merged advanced acoustic design and switching amplifier technology to create incredibly compact, ultra-lightweight products offering highly accurate sound for serious musicians. Ultimately, their pledge to you is for quality... to build a well-constructed reliable audio product that serves you well night after night, year after year. And, quite frankly, they believe the best way to do that is to design and manufacture each and every Acoustic Image product in the U.S.A. Their Technology Applying "musical thinking outside the box", they have taken a different approach to the technology of musical instrument amplification in order to improve the performance and portability of combo amps for the working musician. So, what's so unique about their products? There are three key differences: 1) The use of downfiring low frequency drivers 2) The use of switching power amplifiers and switching power supplies instead of the traditional linear designs 3) The use of unique enclosure shapes to improve portability and sonic performance Each of these differences provides an improvement in the performance of their products. Here's how: The downfiring woofer makes a small driver sound bigger and allows a smaller enclosure for a given driver size. Omnidirectional output produces a more natural and more transparent sound, and means you are more easily heard on the bandstand. The switching (Class D) amplifier design is smaller and more efficient than traditional linear amps. It has less weight because there are no heatsinks or cooling fans and it has a unique "warm" sound (unlike traditional solid state amps) because its output stage is radically different from traditional amps. The switching power supply eliminates large bulky power transformers with a resulting dramatic decrease in weight. With their unique enclosure shapes, form follows function. A cylinder is an inherently stiffer enclosure. And no resonances in the enclosure walls means less coloration in the sound. Also, the stiffer enclosure allows the walls to be thinner and lighter in weight. Add to that the use of acoustically inert polymer materials and the cabinet becomes ultra light. We don't use these new technologies to “be different.” They use them because they make their products better. It all adds up to a more portable, better sounding products. Because of their small size and high sound quality, they virtually disappear on stage, leaving the sound of the instrument being amplified, only louder.

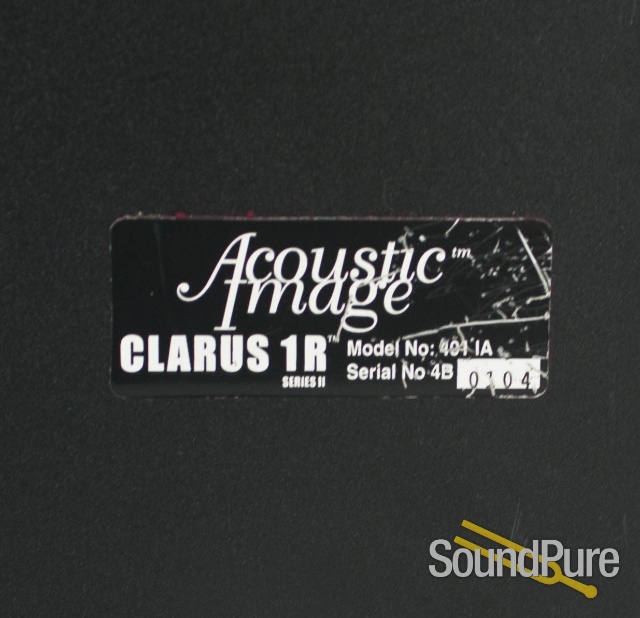

Serial Number: 4B0104
SYSTEM
Frequency Response 20 Hz - 20 kHz, ±0.5 dB
Distortion <0.5%, full output, <0.1%, typical
Hum and Noise -85 dB or better
AC Power 115V/60 Hz or 230V/50 Hz, switchable
Size 10x9x2.5 inches (Clarus/Focus)
7.3x7.5x2.2 inches (Clarus SL/SL-R)
Weight 5 lbs (Clarus), 4 lbs (Focus), 40 oz (SL)
PREAMP
(Mic and Instrument Channels-as appropriate to model)
Mic Input 600 ohm balanced, XLR connector
Phantom Power 38 volts, on/off switch
Instrument Inputs Low impedance (1 MΩ),
High Impedance (10 MΩ), separately buffered
Direct Out +4 dB, balanced, XLR connector, ground lift
Effects Loop Parallel type with return level control
Bass Control Shelving type, ±15 dB at 60 Hz
Mid Control ±15 dB at 650 Hz
Treble Control Shelving type, ±15 dB at 10 kHz
Brite Control ±15 dB at 9 kHz
Notch Filter >-18 dB sweepable from 30 to 700 Hz
High Pass Filter -12 dB/octave sweepable from 30 to 700 Hz
REVERB
(Clarus/Focus 1R/2R, Clarus SL·R only)
Type Digital with 8 presets and level control
Reverb Presets 2 Hall (Concert Hall, Arena), 3 Room (Club,
Chamber, Garage), 2 Plate (Plate, Vocal) and
1 Spring. Clarus SL-R has Concert Hall, Club,
and Spring only
POWER AMP
(All Models)
Topology Class D (PWM)
Switching Frequency 280 kHz, 200 kHz for Focus models
Output Power >200 W @ 4Ω, >300 W @ 2Ω (Clarus)
>250 W @ 4Ω, >350 W @ 2Ω (Clarus SL)
>350 W @ 8Ω, >600 W @ 4Ω (Focus)
Minimum Load 2Ω (Clarus and SL), 4Ω (Focus)
Output Connectors Neutrik Speakon-type (pole 1)
INCLUDED ACCESSORIES

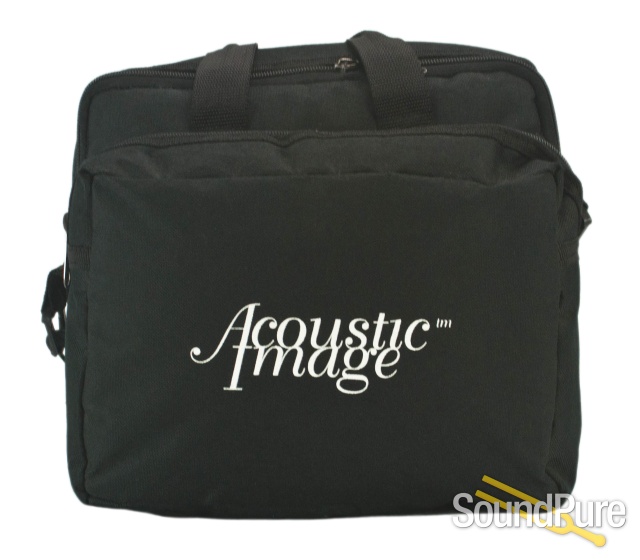

Gigbag with shoulder strap, 6 foot Speakon to 1/4 inch cable, power cable
