CharterOak E700 FET Multi Pattern Condenser Microphone
CharterOak E700 FET Multi Pattern Condenser Microphone
Click image to enlarge
  • Name: Charter Oak e700 Microphone - Grand Piano (How-to Recording)
    Description:

    A Simple stereo pair of Charter Oak Acoustics e700 microphones are used to record a Steinway B 7-foot Grand Piano inside Sound Pure recording studios. They utilize a spaced pair of these incredible microphones into a Millennia HV-3R Mic Preamp, feeding a Lynx Aurora Converter- totally clean, unprocessed signal. The microphone features a particularly large diaphragm capsule and meticulously crafted signal path yielding remarkable musicality, detail, transient information on many applications from Grand Piano, and even kick drum. It is also extremely well priced among the boutique offerings on the market. Sound Pure specializes in helping you get the best studio gear with your budget, and is constantly testing and demo'ing gear in our own studios here at Sound Pure. Please give us at Sound Pure a chance to help you with your next studio upgrade, we sell some of the best products in the business, and many like this one don't have the price tag that is as high as you might think. We can be reached toll free at 888-528-9703.

    Products used to build this video:
    Name: CharterOak E700 Microphone - Saxophone Demo Video
    Description:

    The Charter Oak E700 Microphone performs beautifully on both also and baritone saxophone on these demonstration videos.  The E700 possesses the warmth, and richness you expect from a large diaphragm microphones, but also has a good amount of detail that you would expect from a small diaphragm microphones. The microphone does an excellent job at capturing the full musicality of the instrument as well as the resonance and natural acoustic reverb of the rooms.  We tracked with great results both in our very live untreated lobby (an alto sax), as well as within the control of the Sound Pure Studios A tracking room (a baritone saxophone).  Be sure and check out the other videos we've made with this amaing microphones including piano, kick drum, guitars (both acoustic and electric), and vocals.  It doesn't seem to disappoint no matter where you put it!

    Products used to build this video:
    Name: CharterOak e700 Kick Drum Microphone Demo Video
    Description:

    The CharterOak e700 has proven to be a new favorite here at Sound Pure Recording Studios as a general workhorse studio microphone, but it blew us away recently when we tried it on kick drum. It's impressive low end and expressive ability to capture warmth, body, and resonance stole the show on piano, but really impressed us here on kick drum- for that up front, edgy rock kick drum sound, we are liking it even better than the world-renowned kick drum favorite, the Neumann U47 FET for many sounds. This is largely attributable to its huge 1.2" diaphragm, which is a unique capsule, and one you wouldn't first think to try on something like a kick. This is a dry, unprocessed recording through one of our cleanest preamp, a Millennia HV-3R, but it still sounds polished and near finished, even though there is absolutely no EQ or compression on the recording- you wouldn't believe how it can sound once we start to produce the finished kick drum sound. Give it a listen, and let us know what you think. Our recording experts are always here to answer your questions, toll free, anytime, at 888-528-9703.

    Products used to build this video:
    Name: CharterOak e700 Mic Records Vocals & Guitar
    Description:

    The Charter Oak e700 microphone tracks Vocals and Acoustic guitars on a great sounding singer/songwriter tune in the Sound Pure Recording studios. The e700 is one of the most versatile, modern-sounding, large diaphragm, solid-state, professional recording microphone currently being built, and for this caliber of microphone is available at a very special price. Our recording experts here on staff at Sound Pure our available to discuss our experiences with this fine microphone anytime, just give us a call toll free 888.528.9703, or google search "Sound Pure e700"

    Products used to build this video:
    Name: Millennia HV3 Mic Pre Video Demo & Highlight Reel
    Description:

    The Millennia HV3 is known as a world class microphone preamplifier. The same great circuit design is used in a variety of Millennia preamps including the HV-3d (4 and 8 channell versions), the HV3c, the HV3r Remote Controllable Mic Preamp with optional A/D conversion card, the Millennia STT1 Origin Channel Strip, and the TD-1 DI and Mic Pre. While Millennia Mic Preamps are definitive in the classical and jazz worlds, it is truly outstanding in all serious recording studio applications, where the sound company out of the microphone is just right, as-is. Visit our blog on the Millennia products, and be sure and check out our numerous other videos on the individual products in the line. Contact us with any questions, or to pick your next great mic preamp up- we can be reached toll free 888-528-9703.

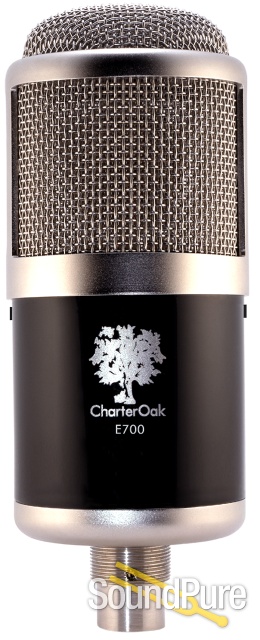

  • The CharterOak E700 is a dual diaphragm FET condenser microphone which employs two 1.22" center terminated, gold sputtered, Mylar diaphragms and pure class A head amp electronics. While this microphone is excellent for universal applications, its rich sound, extremely low noise floor, and build quality make it a particularly excellent choice in the broadcast and voice over environments. The E700 offers cardioid, omni and figure-8 pickup patterns and a two-step sensitivity switch.

    The CharterOak E700 is designed, built, quality tested, and delivered to the customer, with the intention of providing the quality condenser microphone. This has been achieved through an extended period of research and development, together with a period of beta testing performed by a select group of musicians, engineers and producers. The end result is an extremely high quality, distinctive sounding microphone. This high standard of quality extends beyond the microphone to the cables, shock mount and protective case of the E700. Whether you are in a recording or broadcast environment, a CharterOak E700 gives the discerning producer, engineer or recording artist an attractive option.

    The microphone is delivered with a lifetime warranty on all parts and labor and easy access to factory technical support.


  • *Acoustical Operating Principle: Pressure Gradient

    *Diaphragm: Dual 1.22" 6 micron thick gold sputtered Mylar (side terminated)

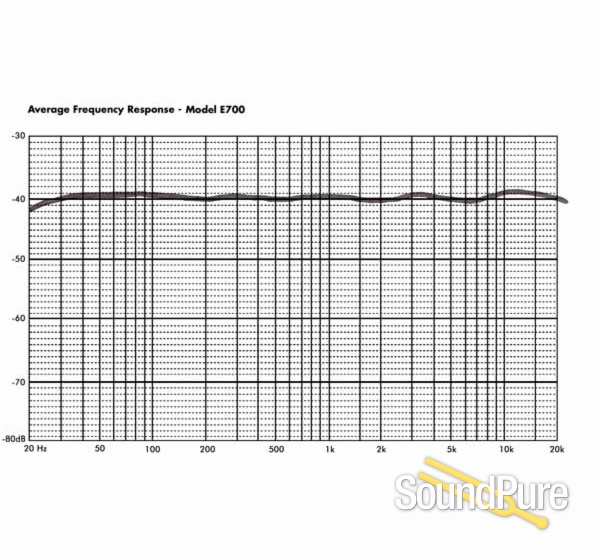

    *Frequency Response: 25Hz-20kHz

    *Sensitivity: 16mV/Pa 94dB=1V/Pa@1kHz

    *Polar Pattern: Cardioid, Omni, Figure 8

    *Impedance: < 200 Ohms

    *Recommended Load: > 200 Ohms

    *Equivalent Input Noise:17dB A weighted IEC651

    *Maximum Sound Pressure Level: 125dB for 0.5% total harmonic distortion @ 1kHz

    *Power Requirements: + 48V
