Impeccably clear while possessing a pleasing musicality and depth, the multi-pattern SA538 produces world-class results on vocals and truly any instrument you throw in front of it! The “B” version features a slightly more “open” sound compared to the standard SA538.
SoundPure's Fletcher demonstrates with a pair of CharterOak 538Bs, how to mic a Leslie speaker - a technique showed to him by record producer Jimmy Miller (Rollings Stones, Motorhead, Traffic). This t...
SoundPure's Fletcher demonstrates with a pair of CharterOak 538Bs, how to mic a Leslie speaker - a technique showed to him by record producer Jimmy Miller (Rollings Stones, Motorhead, Traffic). This technique gives the organ that classic, old school sound that has a more open feel to it. The Charter Oak SA538 B microphones were paired with the LaChapell 992 EG preamp. This session features organ player Mark Wells, guitarist Jared Wofford, and drummer Devin Fuller. If you want to learn more about the gear used in this session, or if you have any questions concerning the gear or techniques used, don't hesitate to call the recording engineers here at Sound Pure Studios. 919.682.5552. or 888.528.9703.
The CharterOak SA538 and SA538B are compared in this demonstration of these two Charter Oak 538 Large diaphragm tube condenser microphones on Alto Saxophone and Baritone Sax. As a tube microphone, the...
The CharterOak SA538 and SA538B are compared in this demonstration of these two Charter Oak 538 Large diaphragm tube condenser microphones on Alto Saxophone and Baritone Sax. As a tube microphone, they possess some of that rich vintage-style warmth, but at the same time as a modern tube microphone, they also have a great deal of detail, open-sound, and air, which make them great not only for vocals, but also a fabulous instrument microphone. You get warmth, but also resonance, harmonics, and detail in a very musical and polished sound. See if you prefer the sound of the 538 or 538B, and be sure and check out our other video comparing these fabulous two microphones on vocals. Don't hesitate to contact us with any questions that you might have, we can be reached anytime by calling us toll free 888.528.9703.
The Charter Oak SA538 A and B versions are in a microphone shootout on this vocal recording and overdub, on a simple unprocessed track where we first recorded an Acoustic Guitar using the Charter Oak ...
The Charter Oak SA538 A and B versions are in a microphone shootout on this vocal recording and overdub, on a simple unprocessed track where we first recorded an Acoustic Guitar using the Charter Oak E700's in a spaced stereo pair configuration. The Charter Oak Microphones are Modern Multipattern Tube Microphones with amazing clarity, detail, and three-dimensionality. CharterOak owner Mike Deming, recording engineer and producer, discusses his opinions of the two microphones with this particular vocalist on this particular track. Singer Songwriter Matt Douglas performance a sensational tune, and the Charter Oak Microphones do a spectacular job of capturing the sound. The entire line of Charter Oak Acoustic Products is available from Sound Pure, and we use these great sounding mics in our studio frequently. You can reach us toll free at 888-528-9703 with any question you have about these amazing microphones.
The CharterOak MPA-1 is an incredibly versatile stereo microphone preamp boasting the same "musical" quality the entire line is known for. With it's dual gain structure featuring both clean input and ...
The CharterOak MPA-1 is an incredibly versatile stereo microphone preamp boasting the same "musical" quality the entire line is known for. With it's dual gain structure featuring both clean input and more saturated output gain control, the MPA-1's tone ranges from a very clean and detailed sound to a rounder, warmer transformer-based tone. Given it's tonal flexibility and practical feature set, including -10db pads and both high and low-pass filters, the MPA-1 is an excellent choice for both home and professional studios recording anything from vocals, to drums, to electric and acoustic guitars, and beyond. The MPA-1 is also available for Sound Pure's exclusive free try-before-you-buy demo program. Give us a call or shoot us an email for more info on how you can hear the MPA-1 for yourself in your studio with your gear. If you have any questions about the CharterOak MPA-1 or any of the additional pieces of gear used in this video don't hesitate to get a hold of any of us here at Sound Pure. Thanks for watching! 919-682-5552
Watch as Joseph Terrell of Chapel Hill-based Mipso (http://www.mipsomusic.com) and SoundPure's resident Acoustic Guitar Expert Robinson Earle demonstrate these beautiful twin Collings D2Hs. The ...
Watch as Joseph Terrell of Chapel Hill-based Mipso (http://www.mipsomusic.com) and SoundPure's resident Acoustic Guitar Expert Robinson Earle demonstrate these beautiful twin Collings D2Hs. The Collings D2H is a square-shouldered, 14-fret dreadnought that adds tonal clarity to the depth and warmth associated with larger acoustics-- perfect for vocal accompaniment or for flatpicking. Gear List: Collings D2H Dreadnought Acoustic Guitar CharterOak 538 Tube Mic CharterOak M900 Small Diaphragm Condenser Mic Vintech Audio 573 Mic Preamp Lynx Aurora 16 Converter If you have any questions, or are interested in coming in to see this model, feel free to contact us at 919.682.5552 or visit us at SoundPure.com.

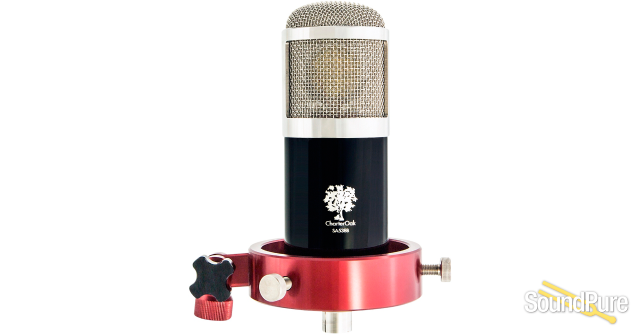

We've teamed up with CharterOak to extend this exclusive Sound Pure offer - purchase either a SA538 or SA538B tube microphone and get a FREE Rycote USB-VB shockmount! This high-quality elastic suspension mount is useable with a wide-variety of large body microphones, so you can save time swapping out just the mic on a dedicated stand.
CharterOak has built their reputation on a solid foundation of unique mics that take classic engineering elements and adds innovations that improve upon what is considered the standards. The SA538 is a modern 251 style mic with its own voice. Big, open, warm and detailed are descriptive terms that come to mind when I think about the way this mic sounds. When I use it on vocals I often get an interesting reaction from the performer because they've never heard themselves recorded with a mic that has such an incredible 3-D depth and warmth. All without a perceivable sacrifice to detail and clarity. This makes the SA538 a true oddity and one that every studio from budget to pro should have in their locker.
The biggest difference we hear and experience with the "B" version is an extended "openness" and "air", most notably due to its slight boost between 10-12kHz. It makes sense why some engineers viewed the SA538 as a male-voiced vocal mic and the SA538B as a more female-voiced microphone because of these characteristics, but don't treat that as absolutes. We've heard scenarios where the opposite pairings proved best, and even certain clients who insist on having BOTH for their voice depending on the song!
Often used as a go-to vocal mic here at Sound Pure studios, but it's important to note that this mic is far from a one trick pony. It excels on Acoustic guitar, piano and is like magic as a drum overhead. The build quality, versatility, engineering integrity and stunning musicality make this an easy contender for "best in class". Not to mention the lifetime warranty that all CharterOak products carry!

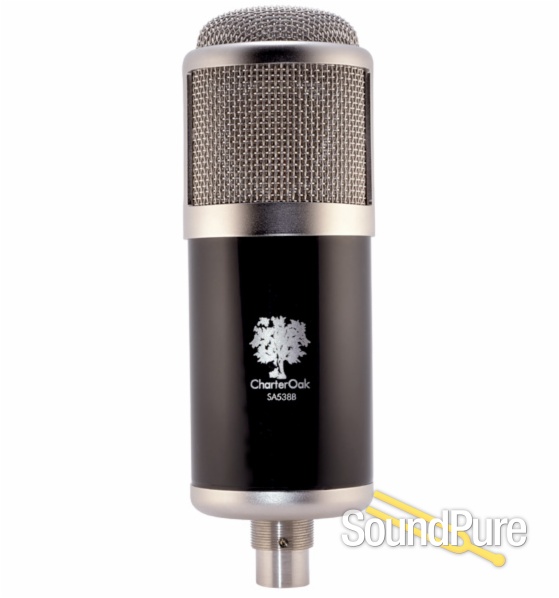

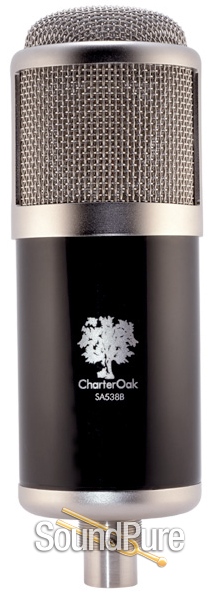

The SA538B is a condenser microphone that employs two large, ultra-thin, side terminated gold diaphragms and a vacuum tube head amplifier using a selected low noise tube, and output transformer. As a result, the model SA538B has very low inherent noise and broad dynamic range. Its timbre is distinctive. Its rich and balanced sound makes it an ideal choice to ensure extremely high quality sound reproduction.
The high standard of quality and affordability of the CharterOak SA538B have been achieved through an extended period of research and development, including beta testing by a wide variety of end users.
The parts of the CharterOak SA538B are machined from solid brass and high quality electronic components are used throughout.
The process of creating a CharterOak SA538B Condenser Microphone is started by hand under the strict supervision of CharterOak personnel. Under that supervision the parts are quality checked and assembled at our facility in Connecticut.
The microphones are finished and the parts are quality checked a second time by experienced engineers. The process involves a seven (7) day burn in of the vacuum tube and no less than 1/2 hour spent with each microphone in a studio environment. Careful listening tests employ high quality microphone preamplifiers and high resolution monitoring systems. Quality checks on every component of each kit complete the process.
It is only after this exhaustive finishing and quality control process is complete, that an SA538B will be cleared for sale to the customer.
From the research and development to the delivery of every SA538B, it is this attention to detail that makes the SA538B truly unique in its class.
The microphone is delivered with a lifetime warranty on all parts and labor and easy access to factory technical support. Don't forget to ask for the mics in FREE matched pairs!
Acoustical Operating Principle: Pressure Gradient
Diaphragm: Dual 1.07" 6 micron thick gold sputtered Mylar

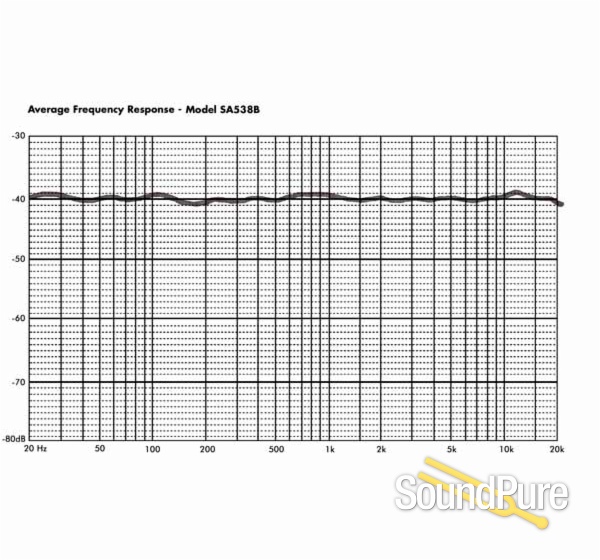

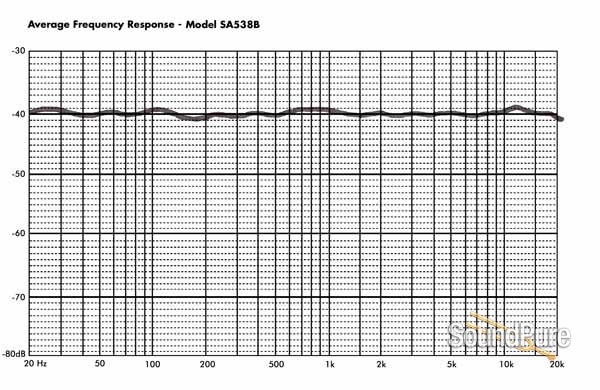

Frequency Response: 25Hz-20kHz
Sensitivity: 12mV/Pa 0dB=1V/Pa@1kHz
Polar Pattern: Cardioid, Omni, Figure-8, and intermediate stages selectable from power supply
Impedance: < 200 Ohms
Recommended Load: > 200 Ohms
Equivalent Input Noise:20dB A weighted IEC651
Maximum Sound Pressure Level: 125dB for 0.5% total harmonic distortion @ 1kHz

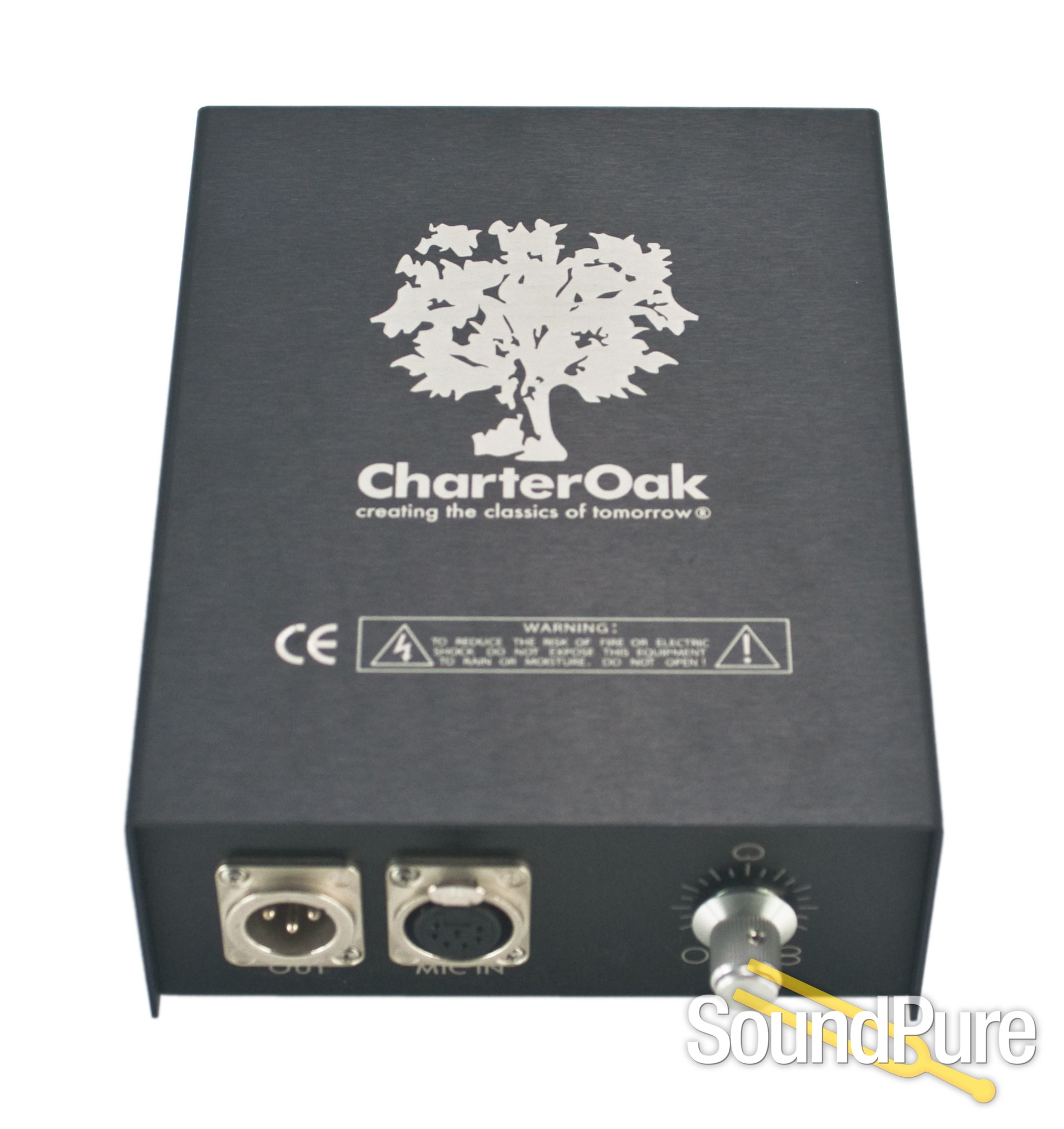

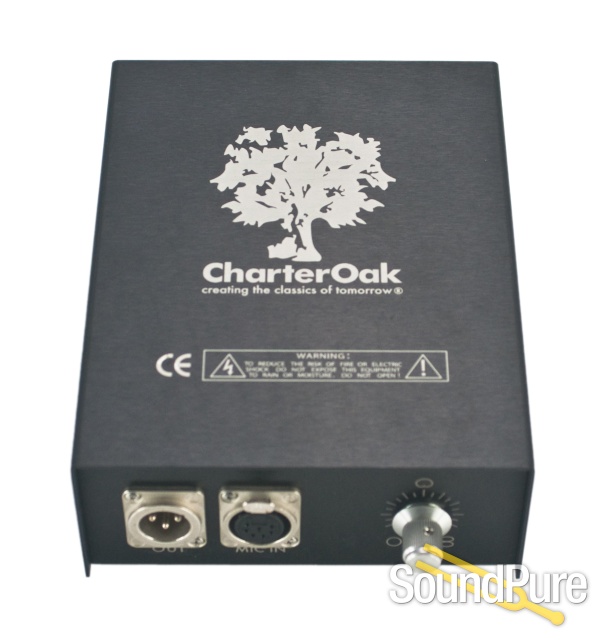

Power Requirements: Custom supply 115V or 230V operation with IEC type 2 AC Cable
Connection between Mic & Power Supply: 7 pin XLR
