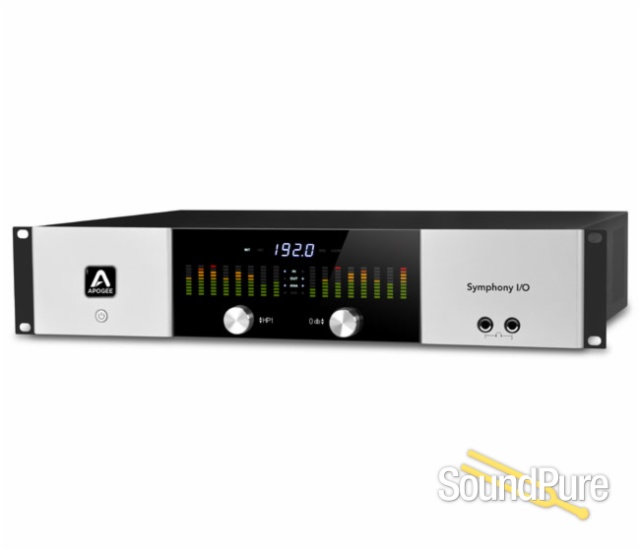

Apogee Digital Symphony 8 Analog w/ 8 Mic Pre + 8 Optical, from Apogee

I/O Module: 8 Analog I/O + 8 Optical I/O

8 channels of Analog I/O and up to 8 channels of Digital I/O simultaneously

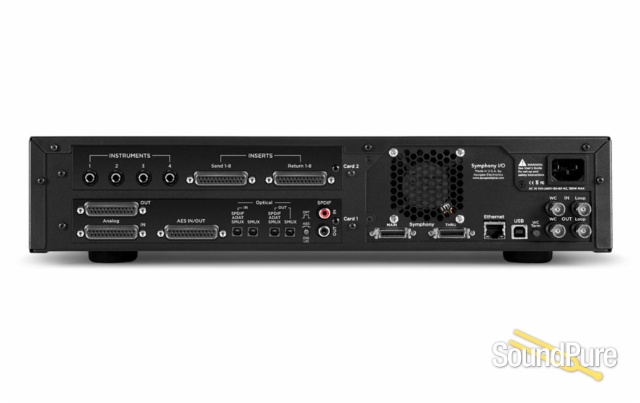

 INPUTS

• Analog IN: 8 balanced, DSUB 25-pin connector

• Optical IN: Supports ADAT, SMUX & SPDIF on 1 Toslink connector

  • ADAT: 8 channels 44.1-48 kHz

  • SMUX: 8 channels, 88.2-96 kHz over 2 Toslink connectors

  • SPDIF: 2 channels up to 96 kHz

• Coax IN: Supports SPDIF on 1 RCA connector

OUTPUTS

• Analog OUT: 8 balanced, DSUB 25-pin connector

• Optical OUT: Supports ADAT, SMUX & SPDIF on 1 Toslink connector

  • ADAT: 8 channels 44.1-48 kHz

  • SMUX: 4 channels, 88.2-96 kHz

  • SPDIF: 2 channels up to 96 kHz

• Coax OUT: Supports SPDIF on 1 RCA connector

Module: 8 Mic Preamp

8 Mic preamps with 4 instrument inputs and 8 insert points

 MIC PREAMPS

• 8 digitally controlled, 80dB microphone preamps

• Upgrades functionality of Analog I/O Module by adding mic pres to the existing line inputs

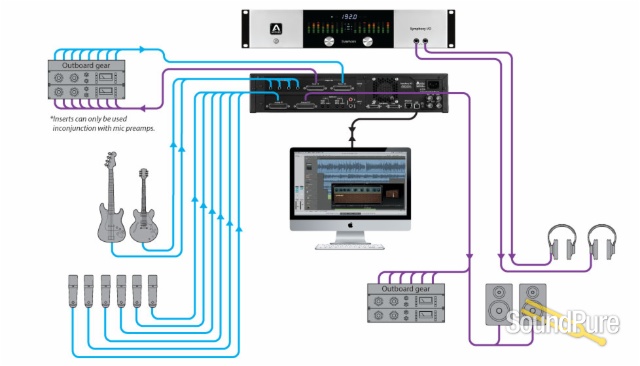

• Creates a direct connection between the Mic Preamp Module and the Analog I/O Module by inserting a mic pre stage before the line inputs

INPUTS

• 4 Hi-Z 1/4” instrument inputs capable of handling high level instruments

 INSERTS

• 8 fully balanced insert points

• Send 1-8 and Return 1-8 on 2 DSUB 25-pin connectors
