IGS Audio RUBBER BANDS Stereo Equalizer

In the style of the classic Pultec Design, the RUBBER BANDS EQ is a four-band stereo rackmountable equalizer.

$2,537.00 or about $106/mo with Affirm Prequalify →

Usually ships 6–10 business days after order.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Free 3-Year Parts & Labor Warranty (details)
Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

From IGS Audio

The Rubber Bands EQ consists of two blocks: The first block is a classic passive filter well known from the EQP-1 Pultec equalizer. The second block is a specially designed two-stage tube amplifier called Organic Amp. Due to its construction, passive equalizers’ culture is characterized by amazing sound. The new design includes a bypass relay, which allows you to instantly compare the results of your work. The equalizer has been divided into 4 sections: 2 for bass and 2 for treble. Bands are selected with stepped switches. Boosting and cutting are controlled continuously. Manipulators featured are Bass Boost, Bass Cut, High Boost (with the choice of Q) and High Cut. Interactions of filters that allow simultaneous boosting and cutting certain frequencies can produce amazing sound effects. Many sound engineers believe that the passive equalizer is a cure for all digital evils. A distinctive characteristic of the IGS Audio Rubber Bands Equalizer is its stereophonic structure, where the manual selecting of components with an accuracy of 0.2% allows for perfectly synchronous manipulation of both channels. The inputs and outputs are transformer balanced.

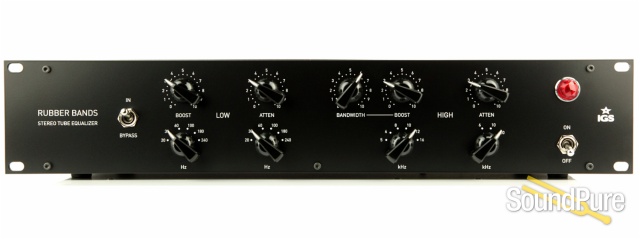

Front Panel:

Bypass/In - relay bypass
Low Boost frequencies: 20, 30, 60, 100, 180, 240 Hz,
Low Atten frequencies: 20, 30, 60, 100, 180, 240 Hz,
Bandwidth: Sharp - Wide,
High Boost frequencies: 5, 6, 8, 10, 12, 16 kHz,
High Cut frequencies: 6, 10, 20 kHz.

Specification:s

Passive equalizer with tube Organic Amp,
XLR, transformer balanced inputs/outputs,
Nominal Level +4 dBu,
Smooth control: Bass Boost; Bass Cut; High Boost Q; High Boost; High Cut,
Step control for all bands,
True Bypass switch,
21 frequencies,
EQ Boost/Cut Range: 15 dB,
Bandwidth range: 1.5 to 3,
Frequency Response: 20 Hz - 20 kHz (+0.1/-0.2 dB)
Maximum Input Level +18 dBu
Maximum Output +22 dBu
THD 0.25 % (@ 20 Hz - 20 kHz)
THD+N 0.33 % (@ 20 Hz - 20 kHz)
IMD (SMPTE) 0.32% (@ 20 Hz - 20 kHz)
Signal to Noise Ratio: 81 dBA (@ 20 Hz - 20 kHz)
Dynamic Range: 95 dBA (@ 1kHz, +18 dBu)
Crosstalk: 80 dB (@ 20 Hz - 20 kHz)
Input Impedance 10 kOhm
Output Impedance 600 Ohm
Tube Complement: 4 x 6N1P-EW,
Optional tube replacement: 4 x 6BC8 or 6BC7,
Input transformer: Carnhill UK,
Output transformer: Edcor USA,
Power Consumption: 34 watts,
110/230V AC switch, 50~60Hz,
Size: 2U, 19",
External dedicated power supply,
Shipping Weight: 8 kg.
Analog cure for digital disease :)
