Tonelux Designs EQ5P Parametric EQ - Used From Tonelux

4 Band Parametric EQ from Tonelux

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.

Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from Tonelux

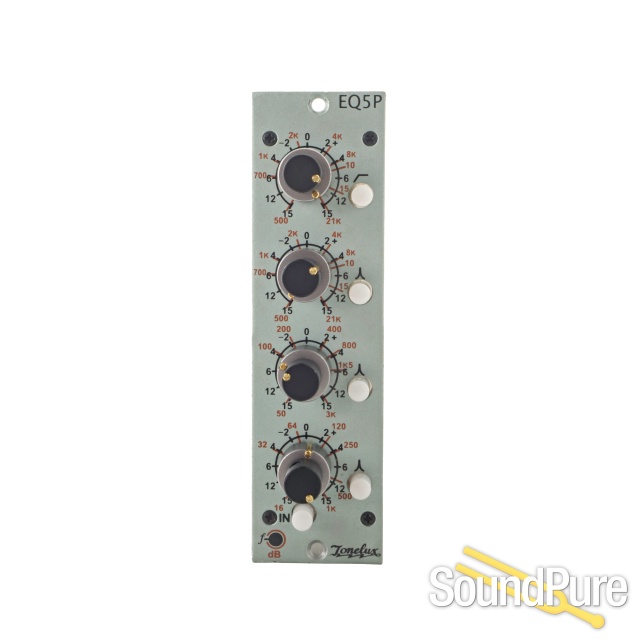

The EQ5P is a DISCRETE Parametric Equalizer with some very unique features. Notice that the panel has no Q control. The filter Q control is in relation to the Boost and Cut control, and uses a "Constant Energy Curve" or known as "Proportional Q" that keeps the bandwidth wider at lower boost or cut levels and becomes narrow at higher boost or cut levels. This is musically pleasing. The curve is identical to many classic equalizers and is one of the reasons they are preferred over newer designs. When the PEAK button pressed, the 3 yellow "peak" buttons keep the width at a constant 1/3 octave for more precision control.

The High Frequency has a Shelving button instead of a Peak button. Since the Constant Energy Curve is so broad in the lower frequencies, there is no need for a low frequency shelf button.

With 4 bands of controls, each of the lower 2 have slightly different frequencies, allowing the lower band to go to 16 Hz, and the upper 2 bands are identical. The IN button is a silent IN/OUT button that does not bypass the unit, but it bypasses the filters.

The "INPUT" of the V4 is the normal EQ input, at a +4 dBu level. The "INSERT RETURN" input is a padded down input, making the nominal level +10 instead of +4. This can be used when the input level going into the EQ is too hot.
