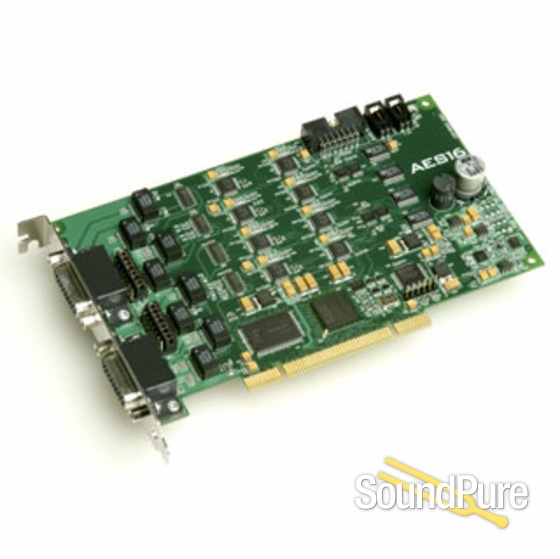

Lynx AES 16 Sound Card, from Lynx

Models AES16 Standard model without cables. Refer to the optional cables listed below. AES16-XLR Includes two six-foot D-sub to XLR cables sets. AES16-SRC Includes XLR cable sets and eight channels of onboard sample rate conversion. Digital I/O Number/Type Eight stereo inputs and eight stereo outputs 24-bit AES/EBU format, transformer coupled Channels 16 in/out in single-wire mode 8 in/out in dual-wire mode Sample Rates All standard rates and variable rates up to 192 kHz in both single-wire and dual-wire modes Sample Rate Conversion Eight channels available with support for conversion ratios up to 8:1 Dynamic range: 142 dB Multiple-input SRC phase matching Available on AES16-SRC model only Architecture Core FPGA-based core contains custom PCI interface, data routing and formatting, device control, digital mixing, clock routing and control, and DMA engine. 256 Kbytes of on-board RAM for data buffering Support for field upgrades of firmware. Audio Devices Card is visible to host applications as eight record devices and eight play devices. Each device has two channels and can be used independently for multi-client functionality. Clocking Sources Digital inputs 1 - 4, external word clock (with XLR cables only) on BNC, internal word clock on header, on-board low-jitter crystal oscillator SynchroLock? Multi-stage, VCXO-based clock generation system with high jitter attenuation. Wide mode tracks off-frequency clocks, narrow mode generates ultra-low jitter output for standard frequencies. On-board Digital Mixer Type Hardware-based, low latency Routing Ability to route any input to any or multiple outputs Mixing Up to four input or playback signals mixed to any output, 40-bit precision Status Peak levels to -114 dB on all inputs and outputs LStream? Expansion Port Compatibility Supports Lynx LStream expansion cards including the LS-ADAT 16-Channel ADAT I/O card Type High-speed serial, up to 16 channels @ 24-bits on 14-pin internal connector Connections I/O Ports Two bracket-mounted 26-pin high-density female D-sub connectors. Can be configured to support eight channel or four channel AES connections. External Clock 75-ohm BNC word clock input and output provided on XLR cable set Internal Clock Two 75-ohm board mounted 2-pin headers for word clock input and output Software Windows Drivers For Windows 2000 / XP platforms: MME, ASIO 2.0, WDM, DirectSound, Direct Kernel Streaming and GSIF Macintosh Driver CoreAudio for OSX Mixer Application Multi-window GUI provides complete control of digital mixer and all hardware settings General PCI Bus Version 2.2 compliant Data Transfers Up to 132 Mbytes/sec using custom 16-channel zero-wait state, scatter-gather DMA engine Bus mastering supported Size 5.0" H X 7.4" W X 0.75" D (standard half-size PCI card) Cables CBL-AES1604 Six-foot, 110-ohm shielded twisted pair cabling 26-pin high-density male D-sub to four female XLR?s (AES inputs), four male XLR?s (AES outputs), and two female BNC?s (word clock I/O) Quantity Two Included with AES16-XLR & AES16-SRC only Optional cables for AES16 Standard Model CBL-AES1603 26-pin high-density male D-sub to 25-pin male D-sub. Supports either 8 channels of input or output Compatible with Apogee AD16 and DA16 Twelve-foot, 110-ohm shielded twisted pair cabling CBL-AES1605 26-pin high-density male D-sub to 25-pin male D-sub. Supports 4 channels of input and output. Compatible with devices with standard Yamaha digital I/O pinout from Yamaha, Apogee, Mackie, and others. Twelve- foot, 110-ohm shielded twisted pair cabling

Integrates digital consoles, multi-channel A/D and D/A converters, and hard disk recorders with computer-based workstations The AES16 offers unprecedented AES/EBU channel capacity and routing flexibility in a single PCI card format. With support for up to 16 channels of input and output at sample rates up to 192 kHz, the AES16 turns your computer into a powerful digital router or patchbay with extensive flexibility with minimal cabling. Most importantly, the AES16 supports the emerging single-wire 192 kHz standard and is compatible with existing dual-wire AES/EBU devices. Up to four AES16?s can be installed in a single computer. Innovations SynchroLock? Offering a solution for jitter problems in AES signals, the AES16 incorporates a new Lynx technology called SynchroLock? that provides extreme jitter tolerance at all inputs. By coupling statistical analysis with low-noise clock generation techniques, SynchroLock is able to extract a very clean clock from AES signals affected by long cable lengths and other noise sources. The clock output of SynchroLock can also be used as a very accurate word clock source for other studio devices. Extremely Low Latencies Glitch-free recording and playback is assured due to the AES16?s large on-board buffers and extremely efficient zero-wait state DMA engine. These features provide tolerance to system latencies and significantly reduce load on the host CPU. Data transfer hardware and software are highly optimized to provide extremely low latencies for ASIO and other real-time applications. Expandability The AES16 includes an LStream expansion port for increasing its I/O capabilities. Connecting a Lynx LS-ADAT adds multi-channel ADAT lightpipe I/O and supports format conversion between AES/EBU and ADAT. The LStream port can also be used for routing data to a second AES16 and increasing the channel count to 32. Sample Rate Conversion The AES16-SRC model offers eight channels of mastering quality sample rate conversion to accommodate studios running multiple samples rates or signals not locked to ?house sync?. On-Board Digital Mixer The on-board digital mixer offers flexible patch-bay style routing and digital mixing. Zero Latency 32-channel / 32-bit digital mixer with 16 sub outputs. Multiple dither algorithms per channel Key Features Digital I/O 24 bit AES/EBU format; Dolby Digital?, DTS, HDCD support 16 I/O in single-wire mode; 8 I/O in dual-wire mode Transformer-coupled XLR connections (AES16-XLR; AES16-SRC) Optional eight channels of sample rate conversion (AES16-SRC only) Expansion LStream port provides 16 channels of ADAT I/O Sync I/O Clock source: digital inputs, internal and external clocks Word Clock and multi-card synchronization Features Zero Latency 32-channel / 32-bit digital mixer with 16 sub outputs Multiple dither algorithms per channel Extremely low-jitter, tunable sample clock with SynchroLock?Zero-wait state, 16-channel, scatter-gather DMA engine Drivers Windows 2000/XP: MME, ASIO 2.0, WDM, DirectSound, Direct Kernel Streaming and GSIF Macintosh OSX: CoreAudio -------------------------------------------------------------------------------- Included: AES16 192 kHz Multichannel AES/EBU Interface AES16 CD ROM with owners manual, drivers for Windows and Macintosh Two CBL-AES1604 cables (models AES16-XLR and AES16-SRC) Warranty registration card
