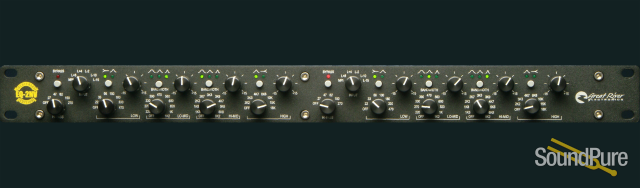

Great River Electronics EQ-2NV Stereo EQ, from Great River

Simply put, the EQ-2NV is a two channel digitally-controlled, analog-driven equalizer that has a topology similar to that of vintage 1081/1083 models. Modern improvements enable the newly-designed class A, discrete single-ended amplifiers in the NV Series Equalizers to add greater clarity and dynamic range to the musicality and control of the vintage 108x models. The EQ-2NV has been specifically designed to work with the NV Series microphone preamplifiers' patch loop to offer greater flexibility in both tracking and mixing environments. The front panel input selector and sensitivity switch offers the option of using the EQ-2NV's balanced bridging transformer coupled input with a range from +8dbm to -20dbm or the companion NV Series preamplifiers' patch loop signal. When connected via the NV Series preamplifier patchpoint, the microphone and DI inputs are fully functional, as well as the level control, metering and "big iron" of the NV Series preamplifier output amplifier. The EQ-2NV also has a discrete class A balanced output stage, which allows it to function as a complete stand-alone device.

Features

*Two Channel channel, discrete Class-A design
*Multiple In/Out connections: XLR balanced line in and out; 1/4 in" -10dbV output for 'no-latency' DAW monitoring;
*TRS 1/4 in insert patch point for NV Series mic preamp (inserts EQ between NV preamp gain stages)
*Wide range of input sensitivity from +8dbm to -20dbm with selection between line in and insert patch point
*4 bands independently enabled with +/-15db boost/cut
*Hi and low bands selectable between peaking and shelving
*Hi-mid and low-mid bands each have 3 selectable Q positions
*3rd order selectable frequency high pass filter
*Hardwire bypass of equalizer section
*Internal low-noise shielded power supply (externally selectable for 110 / 220 volt; 50 / 60 Hz)
*3 year warranty with registration
