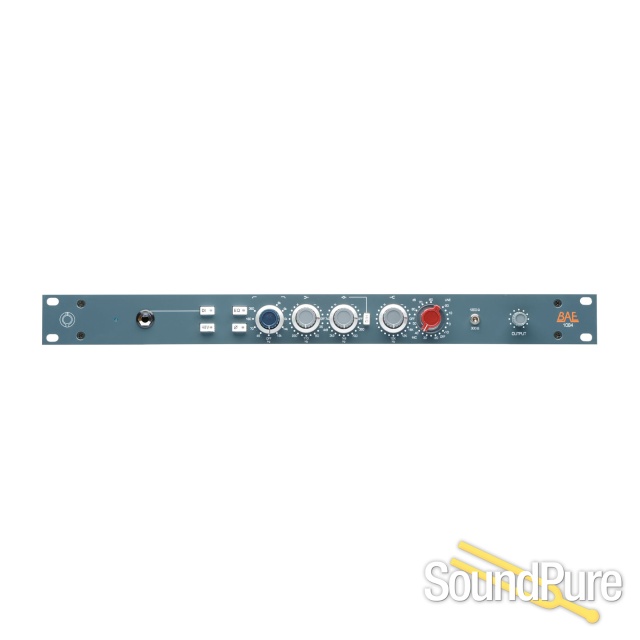

BAE 1084 Rackmount Preamp/EQ without Power Supply  From BAE

Hi pass and low pass filters in addition to a full 3 band EQ and 1073 mic preamp!!!

BAE

$3,535.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $80/mo.

Manufacturer's Description from BAE

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire.

The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.



  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Frequency Response:
10Hz to -3dB at 55kHz

3 Band Equaliser:
HF:+/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

High Pass Filter:
45Hz, 70Hz, 160Hz & 360Hz

Low Pass Filter:
6kHz, 8kHz, 10kHz, 14kHz, & 18kHz

Mic Input Impedance:
≈1200/300 ohms

Line Input Impedance:
10k ohms

DI Input Impedance:
≈150k ohms

Output Impedance:
65 ohms

Common Mode Rejection Ratio:
100dB min @ 60Hz

Maximum Output Level:
+27.4 dBu @ 600Ω

Power Requirements:
115/230 VAC, 28W

Gain dB:
0 to 80 dB

Equivalent Input Noise:
-110 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount):
6 LBS/2.72 KG
10 LBS/4.54 KG

Dimensions in Inches (Module/Rackmount):
45 mm W x 8.75 inches H x 10.5 inches D
19W x 1.75L x 9D
