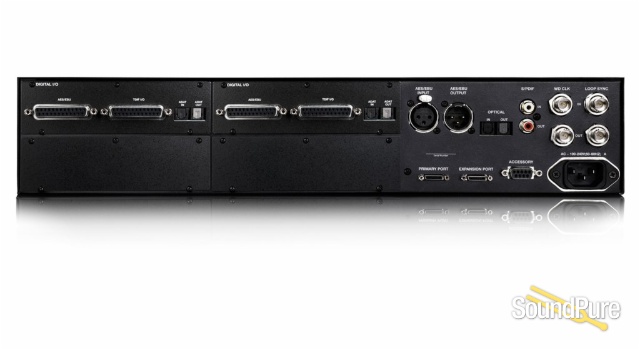

Avid Pro Tools HD I/O 16X16 Digital, from Avid

• 16 total audio paths
o AES I/O (DSUB): 16 ch.
o ADAT/SUMX I/O: 16 ch. @ 48k, 8 ch. @ 96k, 4 ch. @
192k
o TDIF I/O: 16 ch.
o AES I/O (enclosed): 2 ch.
o S/PDIF I/O (enclosed): 2 ch.
o ADAT/SMUX/Optical S/PDIF I/O (enclosed): 8 ch. @
48k, 4 ch. @ 96k, 2 ch. @ 192k
• SRC on AES, and TDIF DSUB inputs
• Word Clock I/O: 2
• Loop Sync I/O: 2
• DigiLink Mini Connector: Primary and Expansion

HD I/O is the next‐generation flagship audio interface for Pro Tools|HD, delivering higher fidelity audio and
lower latency performance than its predecessor, the 192 I/O. HD I/O offers 16 channels of I/O, and comes
in one of three configurations to provide ultimate flexibility:
• 8x8x8: 8 analog I/O and 8 digital I/O
• 16 x 16 analog
• 16 x 16 digital
HD I/O also comes with a newly designed high quality soft‐knee analog limiter feature, Curv, which catches
fast transients and allows for tracking hotter signals. HD I/O moves beyond the market competition by
delivering best‐in‐class digital audio conversion and clocking that integrates into Pro Tools HD software and
offering the most flexible I/O arrangement.
