Universal Audio 710 Twin-Finity Mic Pre & DI, from UA

General

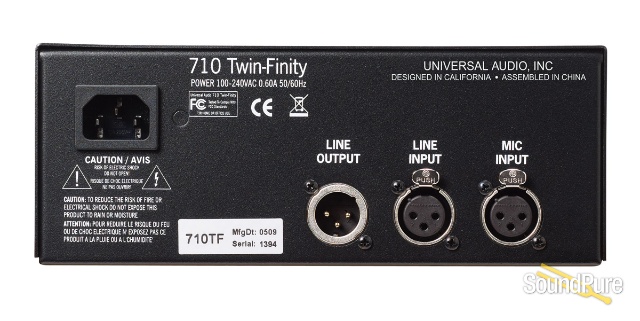

Inputs
Microphone (Female XLR)
Balanced Line (Female XLR)
Unbalanced Instrument (1/4" jack) (D.I.)

Outputs
Balanced Line (Male XLR)

Type
Tube & Solid-State Phase-Aligned Tone-Blending Mic Pre & DI

Tube Complement
12ax7

Pad
-15dB

High Pass Filter
75Hz

Maximum Power Consumption
160mA @120VAC
20W

Power Requirements
100-240VAC

Dimensions
8.45W x 3.5H x 10.25D

Weight
5.25 lb

Impedance
Mic Input Impedance
2K ohms

Line Input Impedance
10K ohms

Hi-Z Input Impedance
2.2M ohms

Internal Output Impedance
600 ohms

Gain/Levels
Gain Range for Unit
-Infinity to 70dBu

Mic Range Gain Pot
10 ~ 60 dBu

Line Range Gain Pot
-10 ~ 40 dBu

Hi-Z Range Gain Pot
-10 ~ 40 dBu

Maximum Mic Input Level Gain @min SS
+18 dBu

Maximum Mic Input Level Gain @min Tube 1% THD
-7 dBu dBu +8 dBu w/pad

Maximum Line Input Level Gain @ Min SS
+30

Maximum Line Input Level Gain @ Min Tube 1% THD
+8 dBu

Maximum Hi-Z Input Level Gain Min SS
+18

Maximum Hi-Z Input Level Gain Min Tube 1% THD
+8 dBu

Maximum Output Level into 600 ohms
+18 dBu

Maximum Output Level into 100k ohms
+28 dBu

Tube Clipping Level
Same as Max In

Solid-State Clipping Level
Same as Max In

Frequency Response
Mic Frequency Response
20Hz to 100kHz +/- 0.2 dBu

Line Frequency Response
20Hz to 100kHz +/- 0.2 dBu

Hi-Z Frequency Response
20Hz to 100kHz +/- 0.2 dBu

Distortion
Min THD+Noise @ +4dBU
0.1% tube 0.005% solid-state

100% Tube to 100% Solid State — a Variable Tone Blending Mic Preamp & DI.

The award-winning 710 Twin-Finity™ is a radically new UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps. Tone blending is continually variable between 100% tube and 100% solid-state, offering a practically infinite range of unique preamp tones, plus the ability to easily dial-in your own signature sound. There are lots of sensibly priced solid-state and tube preamplifiers out there, but the 710 is the only one that offers the best of both worlds — as well as everything in-between — all in one box, and within reach of any serious project studio’s budget.

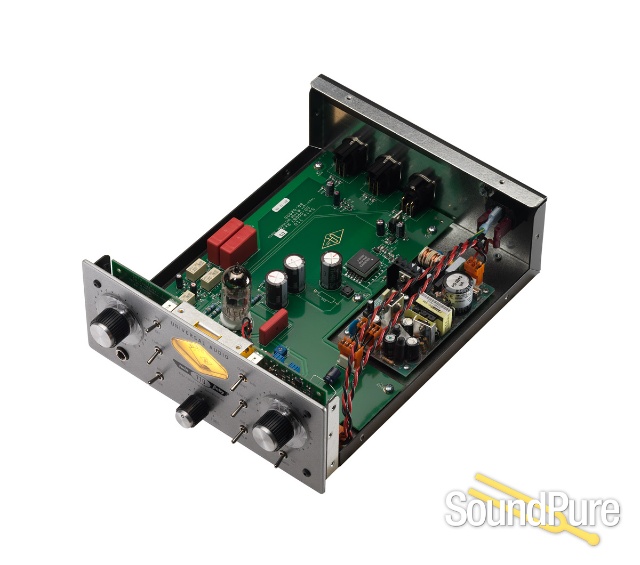

The key to its sonic flexibility lies in its innovative circuit design, featuring a solid-state transimpedance input amp simultaneously driving separate, phase-aligned tube and solid-state gain stages, which are then summed to a single output.. The mix between the 310 volt single-ended class-A triode tube stage and solid-state transimpedance stage is controlled via the "Blend Knob" labeled "∞". Blending is continually variable between 100% tube and 100% solid-state offering a practically infinite range of unique pre-amp tones and the ability to easily dial-in your own signature sound.

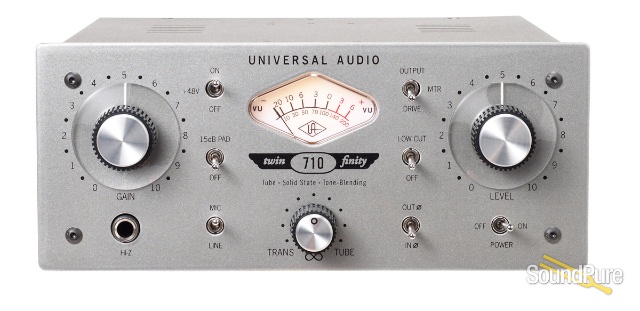

Like all our other preamp designs, the 710 features dual gain-stage controls (Gain/Level) which can radically vary the amount of coloration and distortion by allowing you to crank up the input gain like a guitar amp. The VU meter features a unique "Drive" mode allowing you to see how hard you are driving the input stage.

Versatility makes the 710 the perfect preamp partner for any mic collection. Plus, the discrete JFET DI input circuit can also easily handle any electric instrument. Guitar and bass players will especially appreciate the 710s ability to bring out the best of both active and passive pickups. The 710 Twin-Finity includes a 19" rack-kit for mounting one or two units.
    * Twin-Finity™ tone-blending mic/line preamp with Hi-Z instrument DI capabilities
    * Dual-path 310 volt Class-A tube and transimpedance solid-state preamp
    * Phase-aligned “Tone-Blending” of tube and solid state sounds to suit a variety of sources
    * Dual Gain Stages: wire-with-gain to creamy and crunchy
    * Discrete JFET DI with 2.2M ohm ultra Hi-Z impedance
    * Monolithic balanced output stage
    * Universal Iinternal power supply
    * Heavy-duty metal construction
    * Backed by 1-year limited warranty
