TELEFUNKEN Elektroakustik R-F-T- AK47 MKII, from TELEFUNKEN

TELEFUNKEN Elektroakustik microphones are known for their beautifully detailed acoustic reproduction. As they're made in a 'no holds barred' manner, that also makes them rather expensive for the average small studio or home enthusiast. With this in mind, the R-F-T series of microphones was created.

The R-F-T line of tube condenser microphones utilizes American designed electronics in conjunction with New Old Stock tubes and standardized parts from overseas manufacturers. While we have not "cut any corners," we have been able to provide a lower cost alternative to more expensive microphone systems, without sacrificing the qualities that you would expect from a TELEFUNKEN Elektroakustik microphone.

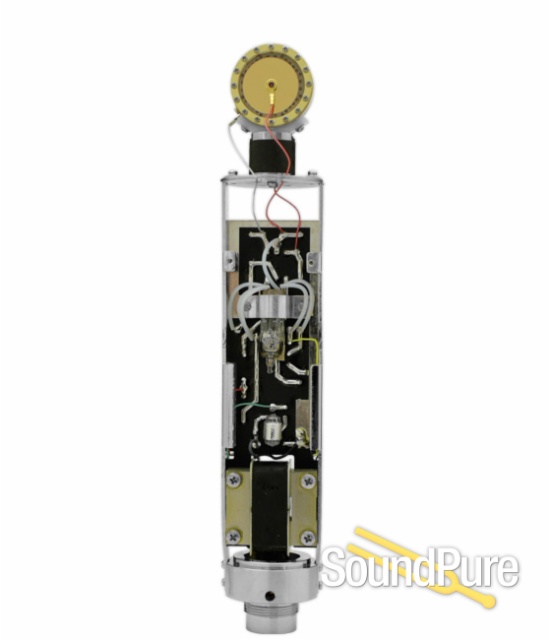

The amplifier found in the R-F-T AK-47 MkII features a new proprietary circuit designed around a NOS TELEFUNKEN EF-732 tube and a custom output transformer that is for all intents and purposes an EXACT replica of the historic BV8 transformer found in our (and historic) U-47 and U-48 microphones. The dual sided large diaphragm capsule undergoes rigorous testing in our laboratory prior to installation in the R-F-T AK-47 MkII, and again during final testing and burn-in of the microphone.

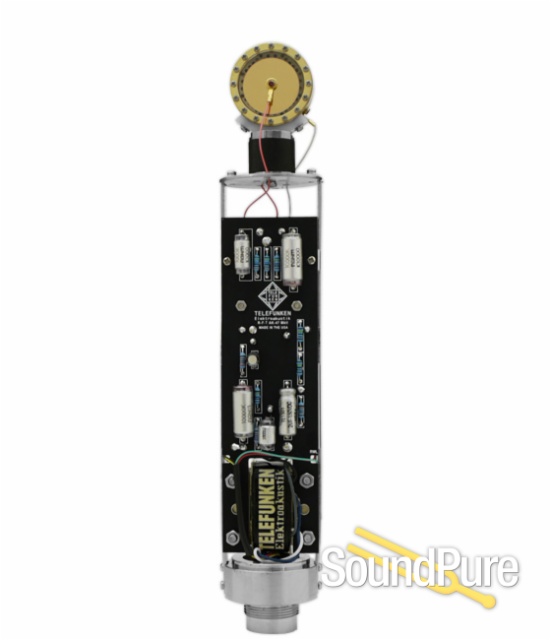

The TELEFUNKEN EF-732 tube is very similar to the AC-701 tube in that is provides a "velvety" character to the overall tone of the microphone. When this tube is coupled with our historically accurate recreation of the BV8 transformer some of the magic begins, but we didn't stop there. The layout of the circuit board features broader traces for superior current on demand capability (which enhances the low frequency and transient response capability of the amplifier) as well as a layout, which minimizes noise and cross talk between components.

Sonically, the R-F-T AK-47 MkII is a remarkably hi-fidelity microphone with a "present" but not "harsh" character, which in many ways is reminiscent of a cross between the historic M-49 and U-47/48 microphones of yesteryear. The result is a microphone with superior high frequency detail, a rich and thunderous low end, without the upper mid-range frequency bump (what we call "guitar store brightness") often found in microphones in this price range. Instead, it has a delicate and intimate "air" that is usually found only in microphones three times the price.

The AK-47 MkII delivers top shelf TELEFUNKEN Elektroakustik quality at a price that even mere mortals can afford. Contact your favorite TELEFUNKEN Elektroakustik reseller to acquire a tool you won't outgrow and will enjoy for a lifetime.

Type: Condenser Pressure Gradient

Capsule: TK47 dual sided gold sputtered

Frequency Range: 20Hz / 20kHz

Polar Pattern: Omni, Cardioid, Figure 8 with 6 intermediate stages

Sensitivity: 14MV/Pa = -37dB (0dB = 1v/Pa) -10bD

Impedance: 200 ohms

SPL: 125 dB

Non Linear Distortion: (for 1% THD @ 1KHz) 132dB

Equivalent Noise: 16 dB (A-weighted)

Tube Type: EF732 Telefunken NOS

Power: Dedicated Power Supply

Weight: 27oz (765g)

Size: 9 1/2" (241mm) length x 1 3/4" (44.45mm) diameter

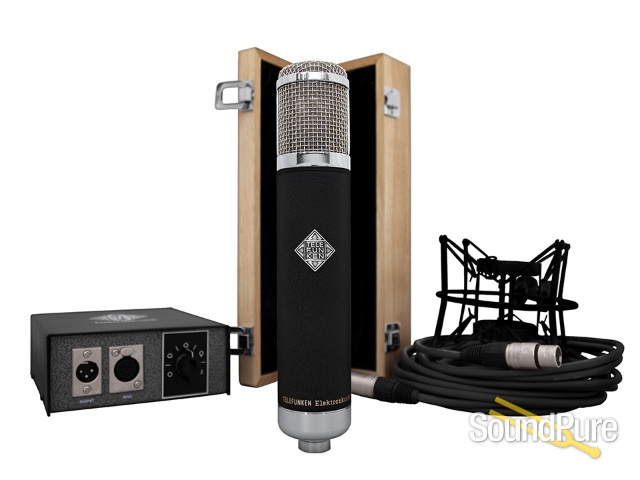

Extras: Modern Power Supply, Shock Mount, Wooden Box
