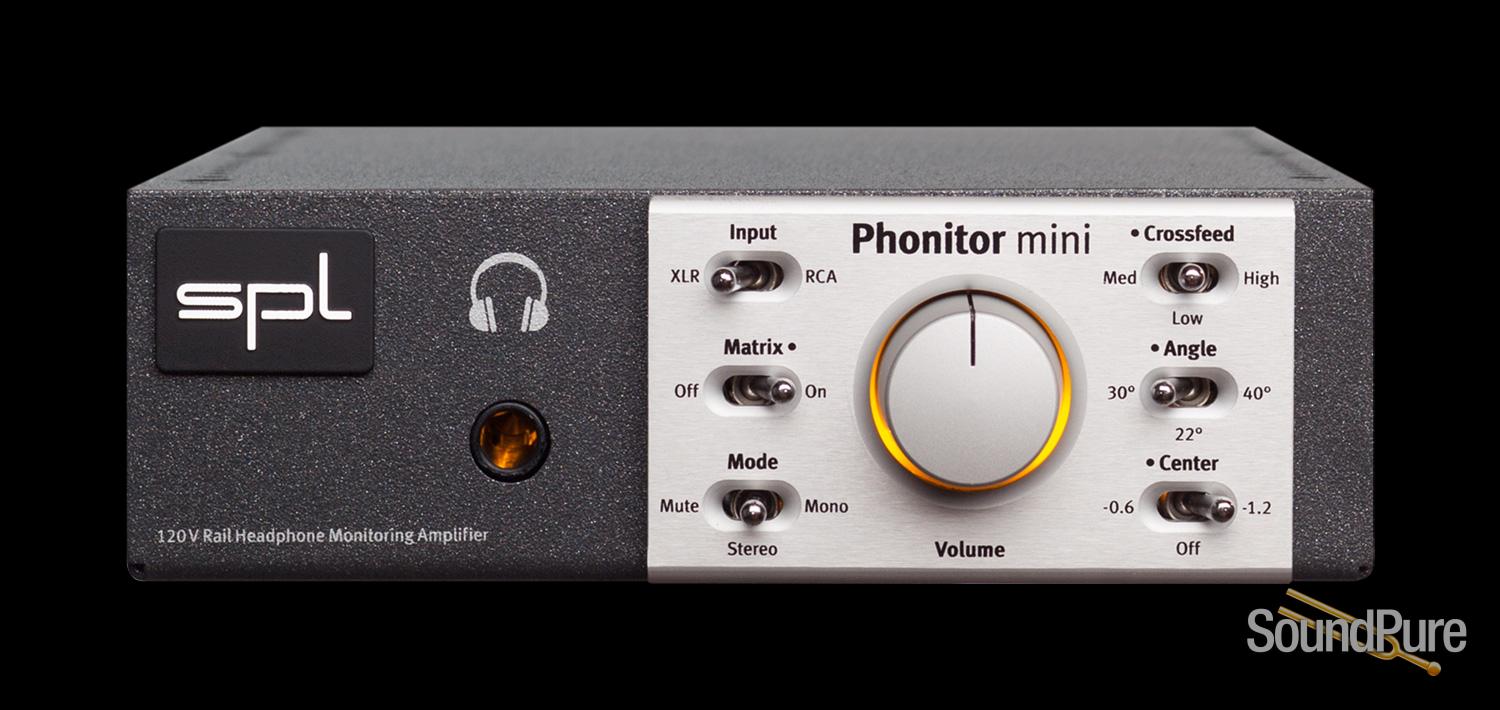

SPL Phonitor Mini  From SPL

With the same outstanding sonic characteristics of the Phonitor 2, the Mini is a more compact and less expensive option, which provides an easy-to-use headphone amplifier in small and sturdy housing.

SPL

Manufacturer's Description from SPL

The outstanding technical and sonic characteristics of the Phonitor 2 were translated into a more compact and less-expensive format to create the Phonitor mini. Its ease-of-use, small and sturdy housing and affordable price, make the Phonitor mini the perfect headphone amp for home studios, hi-fi enthusiasts and mobile recording and mixing. The Phonitor mini is our high-end/low-size version of a premium headphone amplifier. And it obviously features the Phonitor Matrix too, to recreate speaker-like working conditions, plus the developments of the second generation of our 120-Volt amplifier technology.



Important Features

  • 120 Volt Amplifier for Headphons
  • Phonitor Matrix
  • Optimally suited for all dynamic headphones from 10 Ohm
  • Mount-stand compatible with VESA adapter
  • Maximum Output Power: 2x 2 W (1kHz/300 Ohm), 2x 1 W (1kHz/600 Ohm)
  • Frequency response: 10Hz bis 300kHz (-3dB)
  • THD+N: 0,00052 %,
  • Dynamic range: 133,62dB
SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

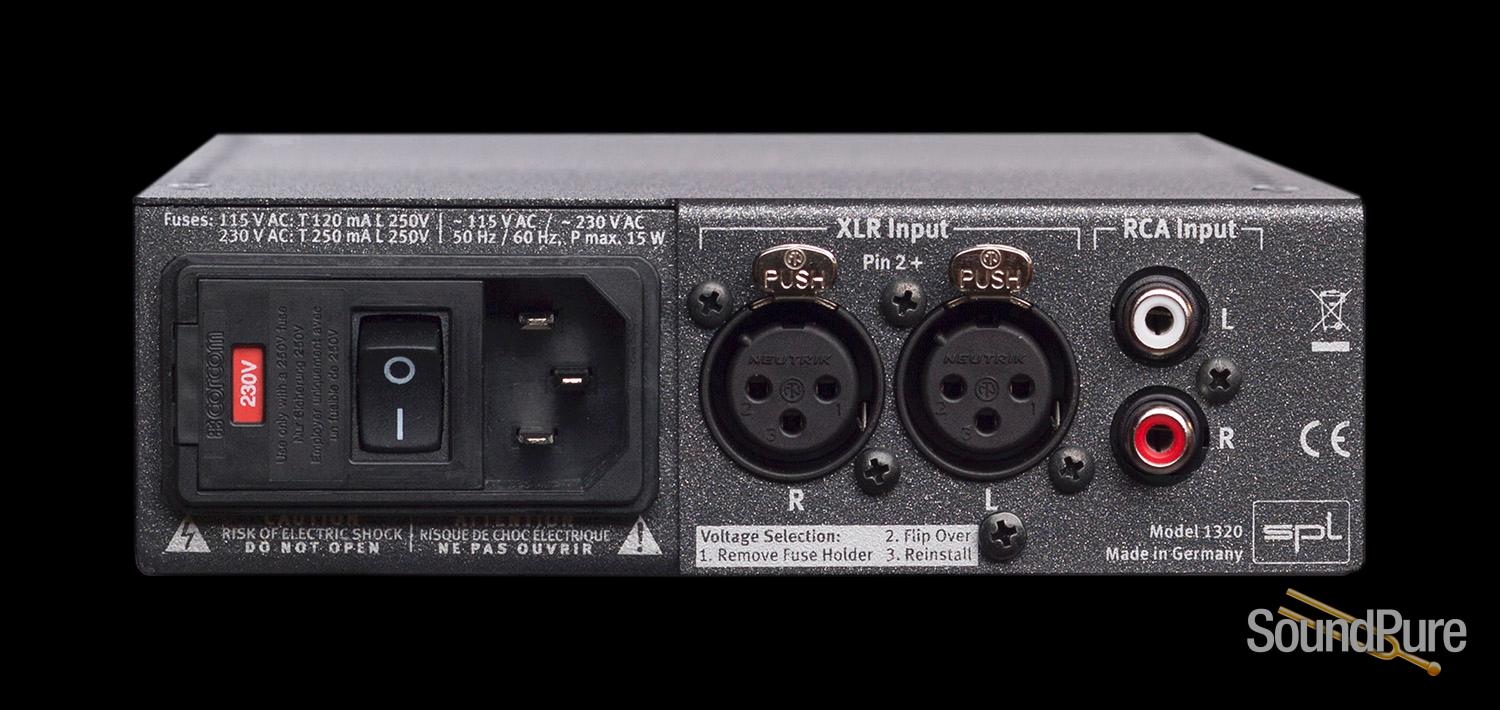

Inputs
XLR connectors, electronically balanced
Impedance:    bal. ca. 20 kΩ,  unbal. ca. 10 kΩ
Max. Input Level: +32,5 dBu

RCA connectors, unbalanced
Impedance: ca. 10 kΩ
Max. Input Level: +20 dBu

Considering that the RCA input is raised from -10dBV to +4dBu (approx. 12.7dB), the input level is comparable to that of the XLR inputs: +20dB + 12.7dB = 32.7dB

Headphone Output
6,3-mm TRS connector
Pin wiring: Tip = Left, Ring = Right, Sleeve = GND
Impedance: 0,18 Ω
Attenuation Factor: 180 @ 40Ohm
Frequency Range: ‹10 Hz bis ›300 kHz ( -3 dB)
CMR: -106 dBu (at 1 kHz, 0dBu input level and unity gain)
Crosstalk at 1 kHz: -88 dB
THD&N: 0,00052  % (at 24dBu input level and unity gain, 1kHz, 100 kOhm load)
Noise: Unweighted -100 dB; A-weighted - 103 dB, CCIR -94 dB
Dynamic Range: 133,62 dB

Max. Output Power:

2x 1 W (+30 dBu) at 1 kHz and 600 Ω connected impedance
2x 2 W (+30 dBu) at 1 kHz and 300 Ω connected impedance

Power Supply
Voltages: 230 V AC, 50 Hz / 115 V AC, 60 Hz
Power Consumption: max. 15 W
Fuses: 100-120 V AC: T 500 mA /220-240 V AC: T 315 mA

Measurement & Weight
Height x Width x Depth: 44 x 144 x 257 mm (1,72" x 5,76" x 10,12")
Weight: 2,03 kg (4,48 lbs)
