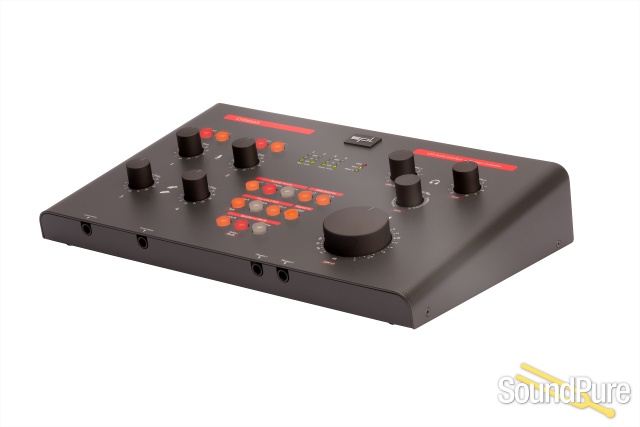

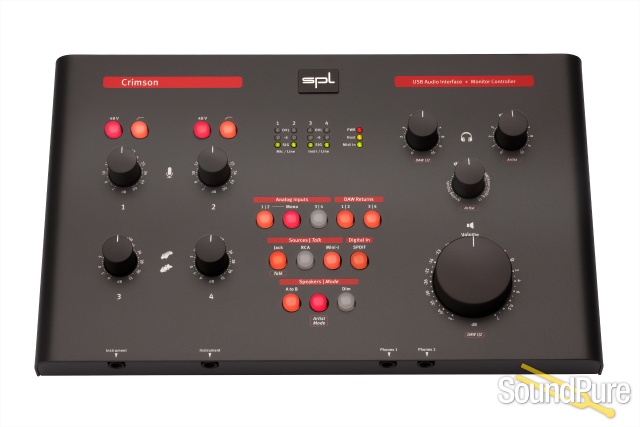

SPL Crimson - USB Audio-Interface and Monitor Controller
SPL Crimson - USB Audio-Interface and Monitor Controller SPL Crimson - USB Audio-Interface and Monitor Controller

Professional Sound and Monitor Control at an incredible price!

Ships Quick!
Usually ships 3 - 5 business days after order processed.

Description:

The SPL Crimson combines a USB interface with high-quality preamps and a separate, fully-featured monitor controller. You can play and play back, record and convert, control and listen – all with one single device (ever heard of the Crimson King? :-)

So, essentially all you need for a truly professional recording setup now is the Crimson and your favorite DAW.

Features:

  • 30 I/O channels (10 recording channels and 20 playback channels)
  • +/- 18V operational voltage for professional levels up to +24dB
  • Two discrete, Class A, +/-30V high-voltage, boutique mic-preamplifiers
  • Two Hi-Z instrument preamplifiers
  • Two separate headphone amps, individually controllable
  • Connect and control two stereo speaker sets
  • Monitor mix function for playback and recording signals
  • MIDI input and output via two DIN sockets
  • USB 2.0, S/P-DIF input and output
  • 24Bit/192kHz converter
  • Made in Germany

Specs:

Input Sockets

  • Mic Inputs 1 -2: XLR
  • Line Inputs 1–4: 6,3mm TRS
  • Instrument Inputs 3–4: 6,3mm TRS
  • Source 1 Input: 6,3mm TRS
  • Source 2 Input: RCA
  • Source 3 Input: 3,5mm TRS
  • Midi Input: DIN (5 pins)
  • SPDIF Input: RCA

Output Sockets

  • Speaker A Output: XLR
  • Speaker B Output: 6,3mm TRS
  • Midi Output: DIN (5 pins)
  • SPDIF Output: RCA
  • Headphone Outputs: 6,3mm TRS

Input Impedances

  • Microphone Input: 10 kOhm
  • Line Inputs: 10kOhm unbalanced, 20kOhm balanced
  • Instrument Inputs: 1,1 Mohm
  • Source 1 Input: 10kOhm unbalanced, 20kOhm balanced
  • Source 2 Input: 10kOhm
  • Source 3 Input: 10kOhm
  • SPDIF Input: 75 Ohm

Output Impedances

  • Speaker A Output: 75 Ohm unbalanced, 150 Ohm balanced
  • Speaker B Output: 75 Ohm unbalanced, 150 Ohm balanced
  • Headphone Outputs: 33 Ohm

Maximum Input Levels

  • Mic Inputs: +14,5 dBu (Gain fully left)
  • Line Inputs: +22,5 dBu
  • Instrument Inputs: +24,0 dBu (Gain fully left)
  • Source 1 Input: +22,5 dBu
  • Source 2 Input: +22,5 dBu
  • Source 3 Input: +22,5 dBu

Maximum Output Levels

  • Speaker A Output: +22,5 dBu
  • Speaker B Output: +22,5 dBu

Mic Preamplifier (balanced, XLR)

  • Gain Control: +8dB - +60dB
  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, 30dB gain, input termination 150 Ohm): -90 dBu
  • Equivalent Input Noise: -128 dBu
  • Common Mode Rejection Ratio: < -70 dBu
  • THD+N Ratio@1kHz (30dB gain, input termination 150 Ohm): 0,003 %
  • High Pass Filter: fg = 80Hz, 6dB/Oct.
  • Phantom Power: 48Volt

Instrument Input (unbalanced, 6,3mm TRS)

  • Gain Control: -6dB - +31dB
  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, unity gain, input termination 100 kOhm): -85 dBu
  • THD+N Ratio@1kHz (unity gain, input termination 100 kOhm): 0,005 %

Line Input (balanced, 6,3mm TRS)

  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, unity gain, input termination 600 Ohm): -95 dBu
  • Common Mode Rejection ratio: < -60 dBu
  • THD+N Ratio@1kHz (unity gain, input termination 600 Ohm): 0,002 %

Source 1 Input (balanced, 6,3mm TRS)

  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, unity gain, input termination 600 Ohm): -95 dBu
  • Common Mode Rejection ratio: < -60 dBu
  • THD+N Ratio@1kHz (unity gain, input termination 600 Ohm): 0,002%

Source 2 Input (unbalanced, RCA)

  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, unity gain, input termination 600 Ohm): -90 dBu
  • Noise (unweighted, -10dBV, input termination 600 Ohm): -85 dBu
  • THD+N Ratio@1kHz (unity gain, input termination 600 Ohm): 0,003 %
  • THD+N Ratio@1kHz (-10dBV, input termination 600 Ohm): 0,003 %

Source 3 Input (unbalanced, 3,5mm TRS)

  • Frequency Response: 10Hz - >200kHz
  • Noise (unweighted, unity gain, input termination 600 Ohm): -88 dBu
  • Noise (unweighted, +15dB gain, input termination 600 Ohm): -76 dBu
  • THD+N Ratio@1kHz (unity gain, input termination 600 Ohm): 0,003 %
  • THD+N Ratio@1kHz (+15dB gain, input termination 600 Ohm): 0,005 %

Headphone Outputs (stereo, 6,3mm TRS)

  • Frequency Response: 10Hz - >200kHz
  • Power@0dBu: 47 Ohm load: 13 mW/300 Ohm load: 1,7 mW/600 Ohm load: 1,0 mW
  • Power max: 47 Ohm load: 670 mW/300 Ohm load: 265 mW/600 Ohm load: 150 mW
  • THD+N Ratio@1kHz (Power@0dBu): 47 Ohm: 0,0026 %/300 Ohm: 0,002 %/600 Ohm: 0,002 %

AD Conversion

  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Dynamic range converter chip (manufacturer's specification): 115 dB

Dynamic range measured via Line Input > AD Converter > DAW > SPDIF Output:

  • 44.1kHz: 110dB (unweighted)
  • 48kHz: 110dB (unweighted)
  • 96kHz: 107dB (unweighted)
  • THD+N ratio @ 1kHz (-1dBFS):
  • 44.1kHz: 0,01 %
  • 48kHz: 0,01 %
  • 96kHz: 0,01 %
  • 0dBFS = +15 dBu

DA Conversion

  • Dynamic range converter chip (manufacturer's specification): 115 dB

Dynamic range measured via SPDIF Input > DAW > DA Converter > Speaker Output:

  • 44,1kHz: 106dB (unweighted)
  • 48kHz: 106dB (unweighted)
  • 96kHz: 104dB (unweighted)
  • THD+N ratio @ 1kHz (-1dBFS):
  • 44,1kHz: 0,006 %
  • 48kHz: 0,006 %
  • 96kHz: 0,007 %

Power Consumption

  •  16,8 Watt

Power Supply

  • External Power Supply, Input 100–240V AC/50–60 Hz; Output 12V DC/1,5A
  • Internal Power Supplies: Audio: +/-17V, Digital: +5V and +3,3V

Dimensions and Weight

  • Housing (H x W x D in mm): 60x330x207 (BxT=bottom panel w/o sockets, H w/o controls)

  • Weight: 2,7 kg



Notes: 0dBu = 0,775 V. Specifications are subject to change without notice.
