RME ADI-2 2 Channel AD/DA Converter  From RME

24 Bit / 192 kHz, 2-channel Hi-Performance AD/DA-Converter

RME

Manufacturer's Description from RME

The ADI-2 is a both compact and extremely flexible 2-Channel Hi-End AD/DA-converter. The small 9.5" unit offers top notch AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Whatever it is - simply get connected!

Key features of this extraordinary flexible converter are balanced inputs and outputs, monitoring via headphone out, SteadyClock for optimal converter quality, 3-stage hardware input and output level control, and its capability to run on a wide range of power supplied.


Connectivity

  • 1 x Stereo Analog I/O
  • 1 x ADAT or SPDIF I/O (optical and coaxial, AES/EBU compatible)


Features

The ADI-2 is equipped with a balanced stereo line input via two Neutrik XLR/phones combo jacks, a balanced stereo line output with XLR plus separate and simultaneously active phone jacks, as well as an adjustable headphone output.

The analog inputs and outputs use the same circuit design as RME's famous ADI-8 DS, guaranteeing outstandingly low noise and distortion. Three different settings for the input and output levels each provide perfect compatibility on analog domain. A further highlight is SteadyClock(TM), a proprietary clock technology for maximum jitter suppression. SteadyClock guarantees superb sound quality completely independent from the quality of the current reference clock. The ADI-2 uses the latest generation of AD/DA-converters capable of up to 192 kHz sampling frequency at S/N ratios up to 119 dBA.

But the ADI-2 has more to offer than tremendous sound, it also gives you exciting digital connectivity. Its transformer-balanced coaxial (RCA) SPDIF I/O has switchable Channel Status to make it fully AES/EBU compatible. The optical TOSLINK I/Os can handle up to 192 kHz and also serve as ADAT I/O with up to 96 kHz sample rate. You can even use SPDIF input and ADAT output or vice versa in AD/DA mode.

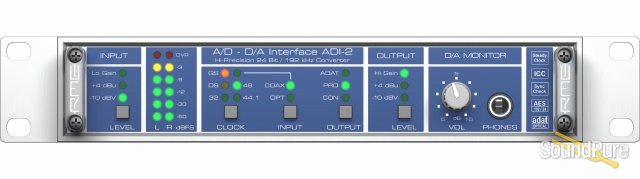

The clear layout and the distinct labeling of the front panel with its functional buttons, the informative status displays, a 6 LED level meter as well as the tidy functional back panel make it easy to operate the unit right out of the box. Protective rack handles and a strain-relief for power cord and audio cables are further useful details that make the ADI-2 even more unique.


Power to this unit!

Following the 'Universal Power Supply' philosophy of RME's Digiface, Multiface, QuadMic und OctaMic, the ADI-2 comes with an external switching power supply. The unit's additional internal switching power supply has been specially designed and optimized for audio applications. It accepts any voltage from 7 to 30 V, be it AC or DC, and even runs on batteries and rechargeable batteries.
RME

About Manufacturer

RME is a young German team of developers with a robust vision of creating innovative, user friendly, and high-quality digital audio solutions for less money. Founded in 1996, RME quickly earned their stripes as a premiere industry provider, expanding rapidly into mainstream international markets. Each developer on the RME team is either a musician or sound engineer - besides being a specialist in hardware and software development. Additionally, to give their designs a persistent competitive edge in today's market, RME developers regularly network with other industry specialists to exchange knowledge and information - truly designing a line of products with superior quality, and affordable, mass-market appeal. RME has had a consistent string of successful product releases, earning awards and accolades from the press and the public alike. The enthusiastic response and worldwide support the RME product line has generated ranks them one of the top audio device companies in the industry.

Specifications

Input AD: 1/4" TRS jack and XLR via Neutrik combo jacks, servo-balanced, completely symmetrical, DC-coupled signal path

Output AD: ADAT optical or SPDIF optical, SPDIF coaxial, AES/EBU compatible

Input DA: ADAT optical or SPDIF optical, SPDIF coaxial, AES/EBU compatible

Output DA: 1/4" TRS jack and XLR, servo-balanced, DC-coupled signal path

Dynamic range AD: 110 dB RMS unweighted, 113 dBA

THD AD: < -110 dB (< 0.00032%)

THD+N AD: < -104 dB (< 0.00063%)

Crosstalk AD: > 110 dB

Dynamic range DA: 116 dB RMS unweighted, 119 dBA (unmuted)

THD DA: < -103 dB (< 0.0007 %)

THD+N DA: < -100 dB (< 0.001 %)

Crosstalk DA: > 110 dB

Input/Output level, 0 dBFS @ Hi Gain: +19 dBu

Input/Output level, 0 dBFS @ +4 dBu: +13 dBu

Input/Output level, 0 dBFS @ -10 dBV: +2 dBV

Sample rate internally: 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4, 192 kHz

Sample rate externally: 28 kHz - 200 kHz

Frequency response AD/DA, -0.1 dB: 5 Hz - 21.5 kHz (sf 48 kHz)

Frequency response AD/DA, -0.5 dB: < 5 Hz - 43.5 kHz (sf 96 kHz)

Frequency response AD/DA, -1 dB: < 5 Hz - 70 kHz (sf 192 kHz)

Accepted power supply voltage: DC 8 V - 28 V, AC 8 V - 20

Dimensions: 215 x 44 x 130 mm

Warranty: 2 years
