Radial Engineering SixPack - 6 Slot 500 Series Chassis  From Radial

The Radial SixPack – the tastiest 500 series lunch basket ever!  It's a desk-top power rack for 500 series modules.

Radial Engineering

$599.99

Retail:  $720.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $52/mo.

Radial Workhorse 5000 Rack for API 500-series - AES '09

Radial Engineering unveils their extremely demanded and versatile Workhorse 5000 rack, which has 8x API 500-series compatible rack slots with hosts of additional improvements and features to a standard rack, as well as an 8x2 summing mixer (with pan) designed by former Neve engineers. The device features virtually every feature one could ask for in a 500-series rack, and a price tag that is frighteningly good. The entire Radial Engineering product line is available for purchase through Sound Pure, who is always available to answer any questions you have about high-end recording equipment and expert recording techniques. Call Sound Pure toll free 888-528-9703, or e-mail them at sales@soundpure.com

  • Signal Chain
    • Radial Engineering Workhorse 500 Series Rack

Manufacturer's Description from Radial

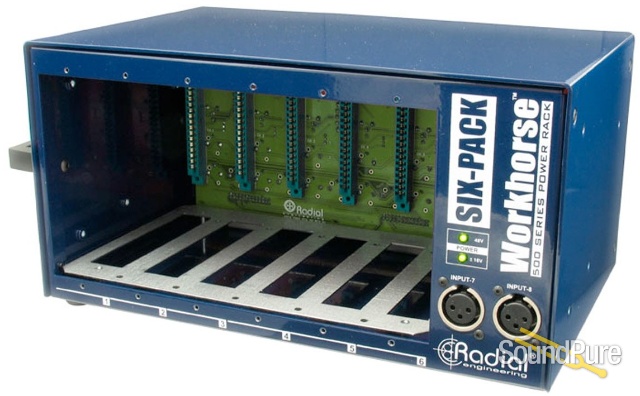

The design begins with a heavy 14 gauge steel construction and baked enamel finish. This provides extra durability when moving the SixPack around the studio while also providing better shielding against stray magnetic fields. To reduce induced noise, the power supply is external and connects using a 5-pin locking XLR. To ensure positive contact, the module card-edge connector is mated to a double sided EDAC 15-pin receptacle that is 100% compatible with the old API pin format. Extra safety is built-in to ensure malfunctioning modules will not harm the SixPack or other modules that may already be connected. And with 1600 milliamps of shared current, the SixPack exceeds all others with an average of over 265 milliamps per slot to ensure even the most power hungry tube modules will be satisfied.

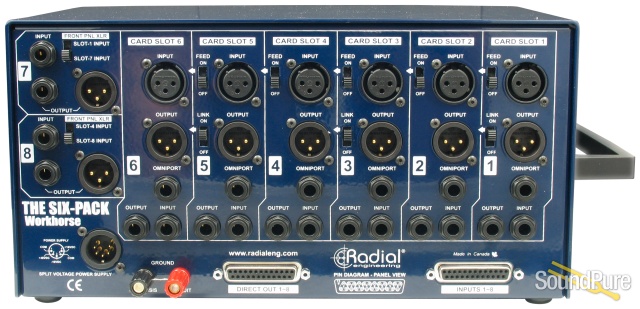

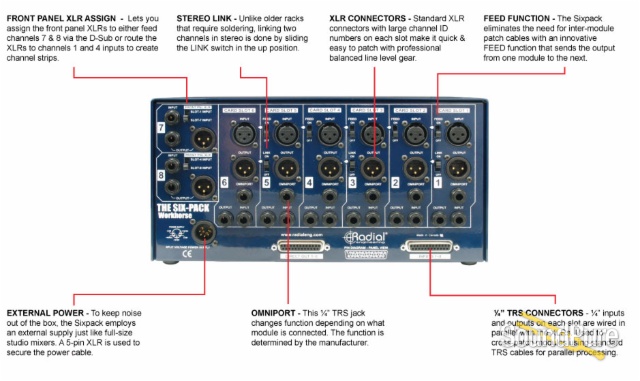

Rear panel connectivity includes individual XLR input and output connectors wired in parallel to ¼" TRS connectors. These may be used as mults or for cross-patching various modules together to create innovative sounding signal paths. A set of 25-pin D-Sub connectors enable the SixPack to easily integrate with a Workstation. Two XLR connectors are front mounted and may be routed to the D-Sub or to inputs 1 and 4 to make patching in a microphone more expedient. Extra features include a feed switch that patches one module into the next, a link switch to combine stereo-ready modules and Omniport, a ¼" TRS jack that adds extra functionality.

The convenient design lets you set the SixPack down on your work surface or carry it around the studio using the side-mounted handle. Optional flanges let you recess it into the desktop for a custom studio finish or mount it in a 19" rack if you plan to take your SixPack on the road!

  • Portable 6 slot power rack with carry handle
  • Perfect for stereo channels or as a studio side car
  • Powerful 1600 milliamp supply will not sag when loaded
  • Workstation ready with front panel convenience XLRs
Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Downloads

Action

Name

Description

Sixpack User Manual
