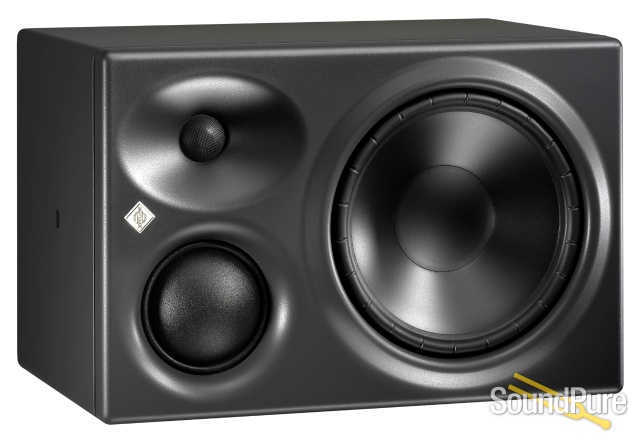

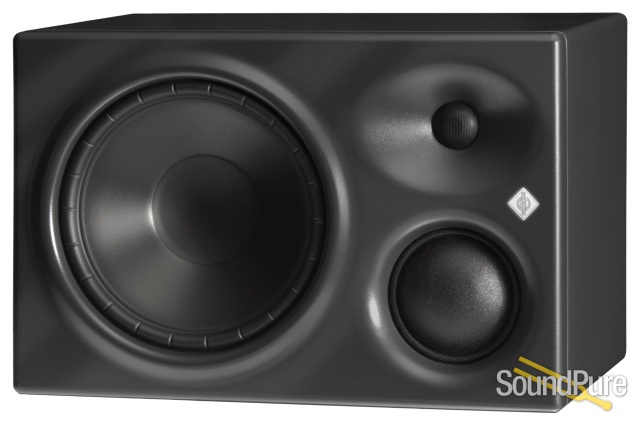

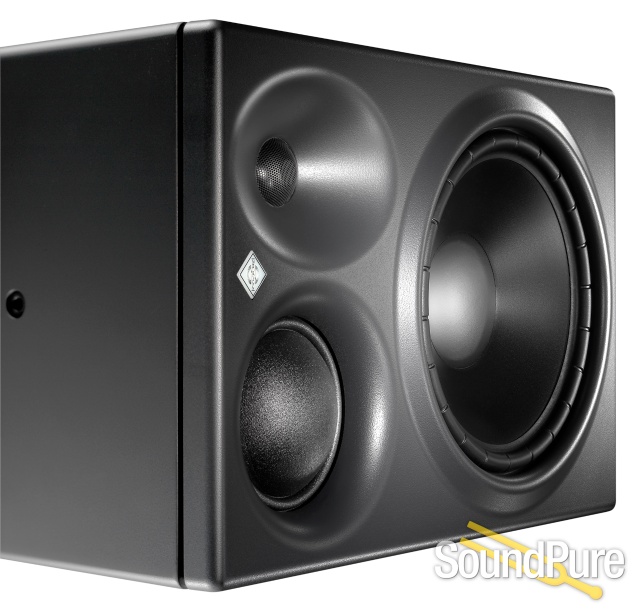

Neumann KH 310 - Active Studio Monitor Pair, from Neumann

Product image + -
Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair
Neumann KH 310 - Active Studio Monitor Pair
Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair Neumann KH 310 - Active Studio Monitor Pair

The KH 310 three-way analog active studio monitors are designed for use as near-field monitors, as front loudspeakers in mid-sized multi-channel systems, or as rear loudspeakers in a larger multi-channel system.

Ships Quick!
Usually ships 3 - 5 business days after order processed.

Want to Try Before You Buy?

To set up a free trial in your home/studio,
call us now: 888-528-9703 or view more.

In a world mostly full of  ported cabinet designs, the Neumann kh310's dramatically stand out from the crowd. These are a sealed cabinet design and you can tell the first moment you hear them push air. There is a tightness and a focus to these monitors that was so clear and forward that it was a bit shocking initially. There's a lot more to a studio monitor design than just whether it's ported or sealed, but these stand far out from the crowds and I attribute a significant portion of that to their cabinet design. there's a crispness and punch all the way to the very bottom end of their range - you will have no question as to how hard your kick drum hits, and how well it's blending with the bass guitar. That same focus is just as apparent through the midrange, where you'll hear exactly how the vocal sits against the guitars, or whether it's struggling for room in the crowd, and the top end of these monitors is revealing without feeling abrasive or fatiguing. These monitors are not forgiving and friendly, but they WILL tell you exactly what's going on within your mix and they translate remarkably well to other systems.

The KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion™ Waveguide (MMD™), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 310 is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

8 1/4" composite-sandwich membrane woofer, 3" soft dome midrange, 1" alloy fabric dome tweeter with Mathematically Modeled Dispersion™ (MMD™) Waveguide and protective grille



Features:

  • 210 + 90 + 90 W class A/B-amplifiers with thermal protection
  • Compact, sealed, horizontally-oriented enclosure (separate left and right versions)
  • Frequency response: 34 Hz - 21 kHz, (-3 dB)
  • Maximum SPL: 116.3 dB  at 1m
  • Input gain control, output level control, ground lift
  • Fourth-order crossover and 4-position bass, low-mid and treble acoustical controls
  • Self-generated noise level <0 dB(A) at 1 m
  • Limiters: Excursion, Bass, Mid, Treble
  • Independent thermo limiters for woofer, midrange dome and tweeter.
  • Woofer soft clip and excursion limiters.
  • Two-color dimmable Neumann logo
  • Magnetic shielded
  • XLR-balanced analog input
  • Universal switched-mode power supply
  • Dimensions: 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2") (HxWxD)
  • Weight: 13.0 kg (28 lbs 11 oz)
  • Full range of accessories and mounting hardware



Acoustics
−3 dB free field frequency response 34 Hz - 21 kHz, ± 3 dB
Pass band free field frequency response 36 Hz - 20 kHz, ± 2 dB
Self-generated noise
(with input gain set to 100 dB for 0 dBu)
< 20 dB(A) at 10 cm
Total harmonic distortion < 0.5 % at 95 dB SPLat 1 m > 85 Hz
Max. SPL in full space / calc. in half space
at 3% THD at 1m
110.3 / 116.3 dB SPL
(averaged between 100 Hz and 6 kHz)
Bass capability: Max. SPL in half space
at 3% THD at 1m
104.5 dB SPL
(averaged between 50 Hz and 100 Hz)
Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions 113 dB(C) SPL
Max. short term SPL with music material
at 2.3 m, in typical listening conditions (pair)
100 dB(C) SPL (full range)
107 dB(C) SPL (with subwoofer)
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 93 / 99 dB(C) SPL (full range)
94 / 100 dB(C) SPL (with subwoofer)


Electronics

Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power* 150 W (210 W) / 70 W (90 W) / 70 W (90 W)
Controller design Analog, active
Crossover frequencies 650 Hz / 2 kHz
Crossover slope 24 dB/oct, 4th order
Equalization - Bass 0, −2.5, −5, −7.5 dB
Equalization - Low Mid 0, −1.5, −3, −4.5 dB
Equalization - Treble +1, 0, −1, −2 dB
Protection circuitry Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters
Infrasonic filter - frequency; slope 15 Hz; 6 dB/oct
Input XLR, analog electronically balanced
Impedance, electrically balanced > 13k Ohms
Input gain control (sensitivity) 0 dBu to −15 dBu
Output level control 94, 100, 108, 114 dB SPL
CMRR > 56 dB @ 100 - 15 kHz
Max. input level +24 dBu
Displays and indicators - power on Neumann logo “White”
Displays and indicators - limit / clip Neumann logo “Red”
Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
Power consumption - idle 24 W
Power consumption - full output 300 W


Mechanics

Cabinet surface finish, colour Painted wood and polyurethane,
Anthracite (RAL 7021).
Aluminum electronics panel, Black.
Baffle cover Optional removable metal grille
Operating conditions +10° C to +40° C (+50° F to +104° F),
<90% RH, non-condensing
Transport/storage condition −25° C to +70° C (−13° F to 158° F),
<90% RH, non-condensing
Drivers Magnetically shielded
Woofer 210 mm (8 1/4")
Midrange 75 mm (3")
Tweeter 25 mm (1")
Mounting points 2 x M8 on side panels, depth from outside of cabinet 25 mm (1”).
Rear panel screws for attaching LH 41 base plate.
Rear panel bracket.
Product dimensions
(height x width x depth), mm (inches)
253 x 383 x 292 mm
(10" x 15 1/8" x 11 1/2")
Net volume, internal / external 16.2 liters / 28.3 liters
Product weight 13.0 kg (28 lbs 11 oz)
Packed dimensions
(height x width x depth), mm (inches)
590 x 380 x 360 mm
(23 1/4" x 15" x 14 1/8")
Packed weight and cube 16.8 kg (37 lbs 1 oz), 0.081 m³
