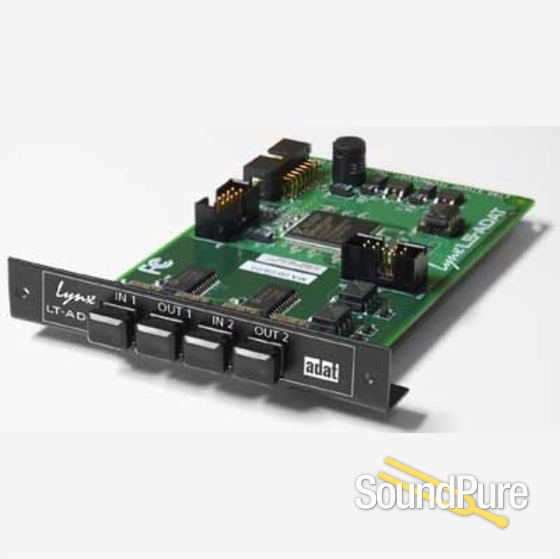

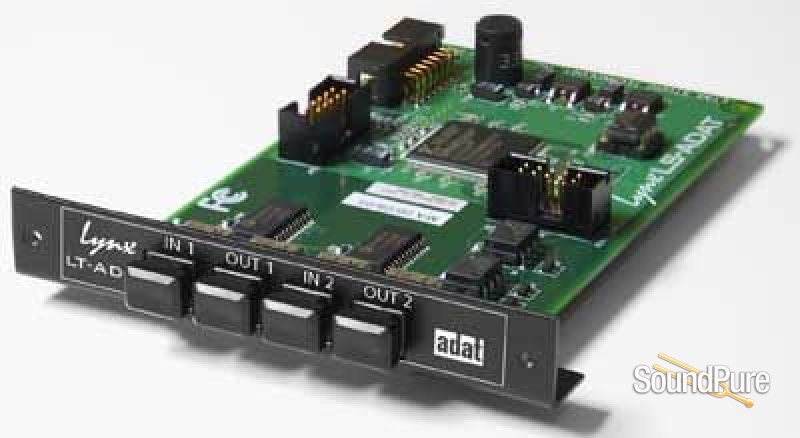

Lynx LT-ADAT, from Lynx

-Adds 16 Lightpipe I/O channels at up to 48 kHz to Aurora converters
-Higher sample rates attainable via S/MUX technology
-Easily installed into Aurora?s LSlot bay
-Controlled via Aurora front panel or by computer via AES16.
-ADAT/AES-EBU bidirectional format converter
-Flexible clocking options
-FPGA core allows field upgraded of firmware
-RoHS compliant

The LT-ADAT adds up to 16 Lightpipe inputs and outputs to Aurora's already powerful I/O capabilities. LT-ADAT is an LSlot device for Lynx Aurora 8 and Aurora 16 converters that adds up to 16 channels of high-performance ADAT Lightpipe input and output. The LT-ADAT is a full-function ADAT interface that provides two ADAT Lightpipe inputs and two outputs. Operating at a sample rate of 48 kHz, the LT-ADAT I/O channel capacity is 16. Higher sample rates are supported using S/MUX technology: 8 channels at 96 kHz and 4 channels at 192 kHz.

Easily installed inside the Aurora 16 and Aurora 8, the LT-ADAT connects via ribbon cable to the host converter. Channel routing is controlled from the Aurora front panel or by computer via the Lynx AES16. The LT-ADAT clock can be slaved to Aurora or a Lightpipe optical signal. Even when slaving to Lightpipe, Aurora?s SynchroLock technology provides immunity to high levels of jitter, which is typical in optical signals.

LT-ADAT also allows Aurora to function as a bi-directional format converter, converting ADAT to AES/EBU and analog and back to ADAT.
