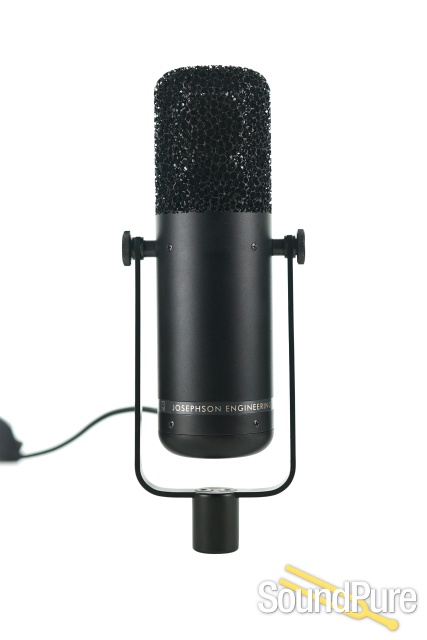

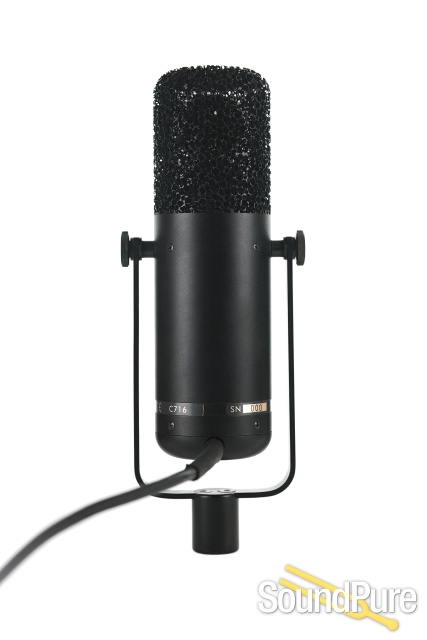

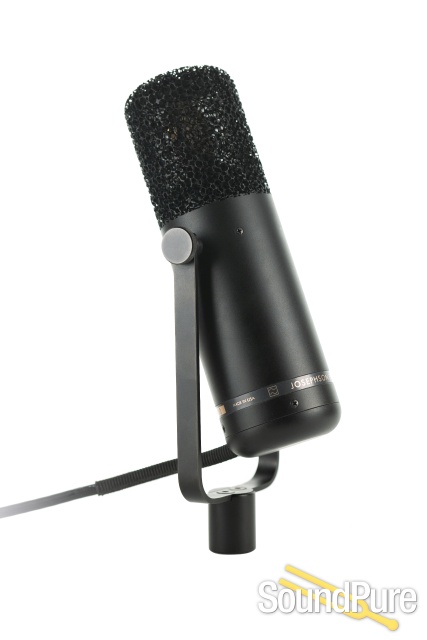

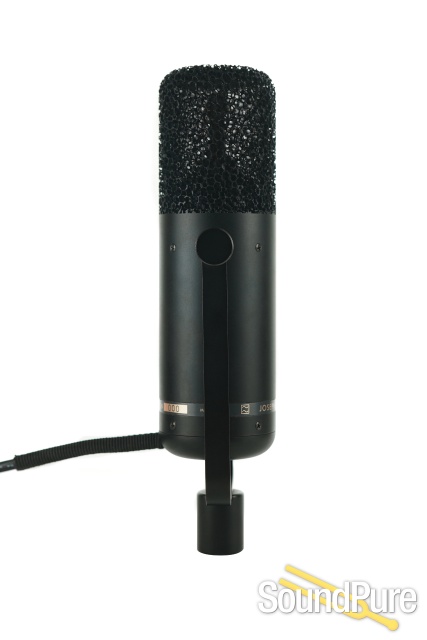

Josephson C716 Large Diaphragm Condensor Microphone

Josephson C716 Dual Diaphragm Cardioid Condenser Microphone Interview at AES 2011

Products used:
- Josephson C716 Large Diaphragm Condensor Microphone

More text

The C716 Studio Microphone from Josephson Engineering is one of the newest additions to the Josephson mic line up. It features a dual diaphragm capsule that is ideal for vocal pickups and instruments....

Less text

The C716 Studio Microphone from Josephson Engineering is one of the newest additions to the Josephson mic line up. It features a dual diaphragm capsule that is ideal for vocal pickups and instruments. It has a natural and warm response with little acoustic coloration. This microphone is versatile in many different environments and features Josephson's new patented hard metal foam structure which eliminates internal reflections and distortions common in most mics. To learn more about this technology, or the specifics on the C 716 from Josephson, call our expert recording staff here at SoundPure and we would love to help! 919.682.5552. or 888.528.9703.

Bourgeois OM

(click to download)

Schoeps CMC 6 Microphone Amplifier > Josephson C716 Large Diaphragm Condensor Microphone > LaChapell Audio 992EG Extended Gain 992 w/ Stock Tubes > Lynx Aurora 16 I/O D/A and A/D Converter > Bourgeois Signature OM (Adirondack/Madgascar)

Description:

Model: DB Signature OM Top: Premium Eastern Red "Adirondack" Spruce Back & Sides: Madagascar Rosewood

Model: DB Signature OM Top: Premium Eastern Red "Adirondack" Spruce Back & Sides: Madagascar Rosewood (view less)

Specs:

Pressure-gradient condenser microphone transducer

Cardioid directional pattern

Frequency range 20-20,000 Hz

Sensitivity -32 dB ref 1V/Pa (26 mV/Pa)

Equivalent noise level <15 dB SPL, A weighted rms

Overload sound level 136 dB SPL

Power supply P48 phantom, 5 mA

Diameter 63 mm (100 mm wide at yoke), length 261 mm

Weight 1.2 kg

Output connector 3-pin XLR

Made in USA

Description:

Series Seven microphones provide unprecedented flexibility in studio pickups with a variety of directional patterns. The C716 dual- diaphragm capsule is optimized for cardioid, and is ideal for vocal pickups and instrumentals where a warm, natural sound is needed with minimum acoustic coloration. Off-axis response is particularly smooth, yielding excellent results in a variety of acoustic environments.

The C716 features a cardioid version of the large dual-diaphragm capsule used in Josephson’s C700 series, with a 5 micron evaporated gold diaphragm. The head grille uses Josephson’s patent-pending hard metal foam structure welded to the housing tube, instead of wire mesh or perforated metal. No other structure is needed, so internal reflections are randomized for clean, detailed sound pickup. The entire housing, circuit board, capsule and all its internal parts are made by Josephson in the USA. The microphone features a hard matte black chrome finish for durability in studio use.

The internal circuitry uses a class-A FET front end with active balanced transformerless output using discrete large-geometry devices like those in the Josephson C700 and C617. The internal high voltage linear supply generates capsule polarization voltage without using any digital devices or oscillators, for very low noise.

The capsule assembly in the C716 is internally shock mounted so that the mic may be attached directly to a stand through its rugged yoke mount, without using any external accessories.
