An incredibly powerful 500 series M/S processor PLUS built in wet/dry parallel processing mixer to allow you to compress and EQ your sides and mid, then blend in exactly how much processing with the original mix!
$850.00
Here we show how to change any of your favourite compressors into a Mide/Side mode compression set-up. It can really widen your mix if needed. When in Mid/Side mode, your compressor channels are the common and different ares of the stereo image instead of the classic Left and Right channels.

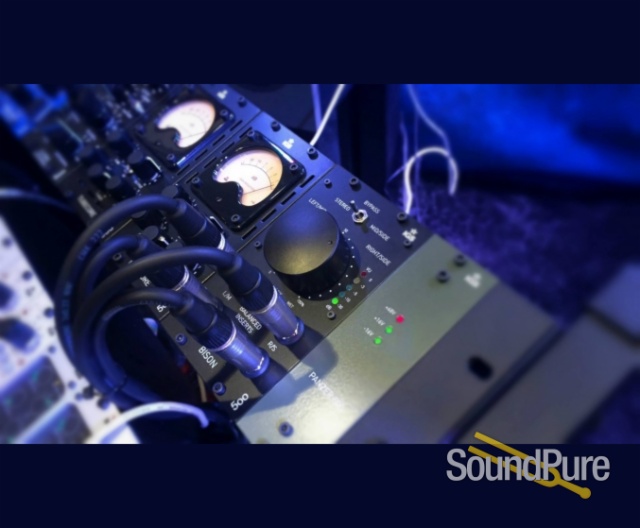

The IGS Bison 500 is a simple mid/side processor with a dry/wet mixer. It can be plugged into any 500 series rack equipped with a standard power supply. It has two stereo jack connectors (2 sends and 2 returns) on the front panel of the device used for plugging in your favorite dual mono or two mono compressors.
Mid/Side
With a flick of the switch your compressor(s) start working in Mid/Side mode, where the left channel controls the common/Mid section of the two channels and the right channel controls the difference between the channels referred to as Side. Adding more sides or compressing them differently can increase your stereo image significantly.
Parallel
The dry/wet knob can be very useful for parallel mixing. It is great for situations, where you want to pump up the sound without losing the natural dynamics of the dry mix.
IGS Audio is now one the most desired studio equipment brands in Poland and it is continuously expanding internationally. The original IGS Audio products qualify as pretendants to no.1. Clones of other brands produced by Igs Audio are accurate and excellent.
IGS Audio is all about happiness in success. IGS Audio offers 3 years warranty for all products.
IGS Studio has been operational since 1997. The IGS Audio brand was created in 2003.
| INPUT & OUTPUT | |
|---|---|
| Input Impedance (balanced) | 10k Ohm |
| Output Impedance (balanced) | 50 Ohm |
| LEVELS | |
|---|---|
| Operating Level | +4 dBu |
| Max input level | +18 dBu |
| Max output level | +22 dBu |
| Dynamic Range | 98 dBA (@ 1 kHz, +18 dBu) |
| BANDWIDTH | |
|---|---|
| Fequency response | 10 Hz to 30 kHz (+0.1 dB / -0.2 dB) |
| DISTORTION (@ 20 HZ - 20 KHZ) | |
|---|---|
| Signal to Noise Ratio | 81 dBA (@ 20 Hz - 20 kHz) |
| THD+N | 0.003% @ (@ 20 Hz - 20 kHz) |
| IMD (SMPTE) | 0.005 % (@ 20 Hz - 20 kHz) |
| Crosstalk | 78 dB (@ 20 Hz - 20 kHz) |
| FRONT PANEL | |
|---|---|
| VU Meters | Yes, 5 LED Bar Display |
| POWER | |
|---|---|
| Power consumption | 8W |
| PACKING BOX | |
|---|---|
| Shipping weight | 3 kg |
