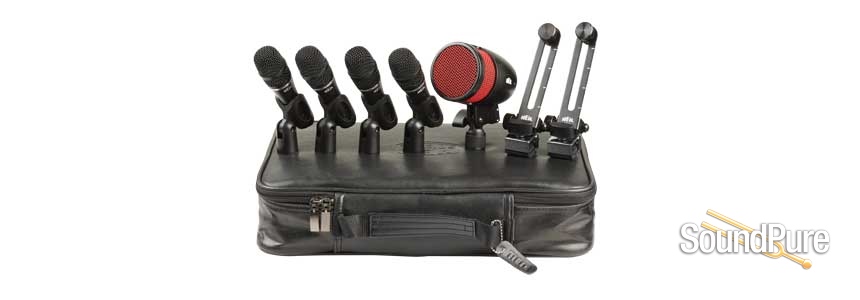

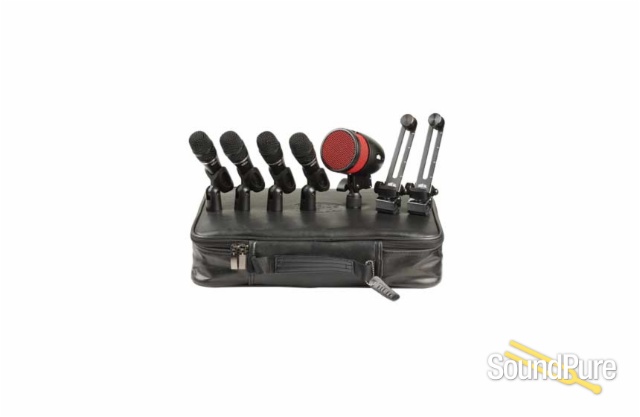

Heil HDK-5 Microphone  From Heil

The Heil HDK drum kit series is a culmination of over 2 years spent on the road with leading drummers. They gave us their ideas, their dreams and their needs which we turned into reality. Every component of a drum kit needs special attention when it comes to reproducing the sound accurately. There are many drum microphones out there but the artists that helped design the Heil drum microphones wanted more accuracy, not just level. Each one of them were tired of little plastic toys that did not reproduce well. They all agreed, after hearing and using the new technologies of the Heil drum microphones, that they had never heard this level of quality reproduction.

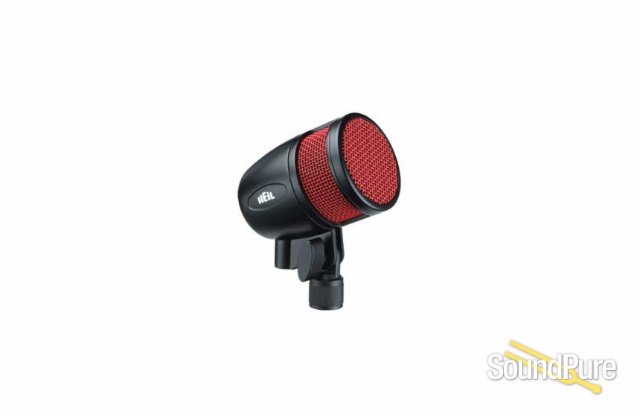

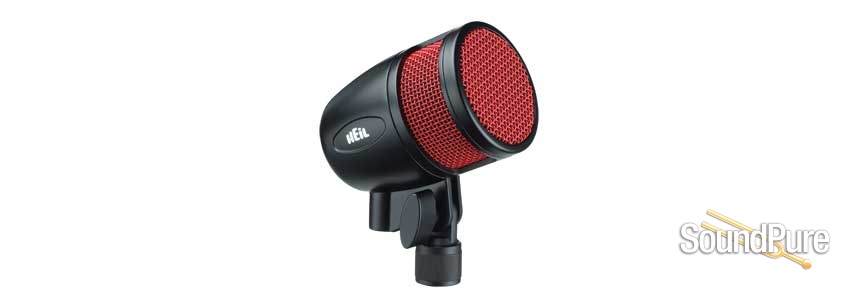

The PR 48 kick drum microphone starts with our 1.5" large diaphragm dynamic element sealed in a vulcanized shock mount and fed with a specially designed low pass filter that creates a +10 dB rise from 50 to 100 Hz. - right where the kick drum resonates. We built a + 4dB rise from 3.5 to 5 K to pick up the beater and drop off drastically after 8.5 K to eliminate any unwanted internal sounds. The total frequency response is 30Hz - 8.5kHz. Its rear rejection is -40dB @ 180° off axis. It can handle +148dB SPL.

The PR 48 metal housing was designed with a slanted entrance for the XLR at the suggestion of several drum techs so the cable assembly is easier to connect. The microphone provides a 600 ohm balanced output and is finished in flat black emron with red grills.

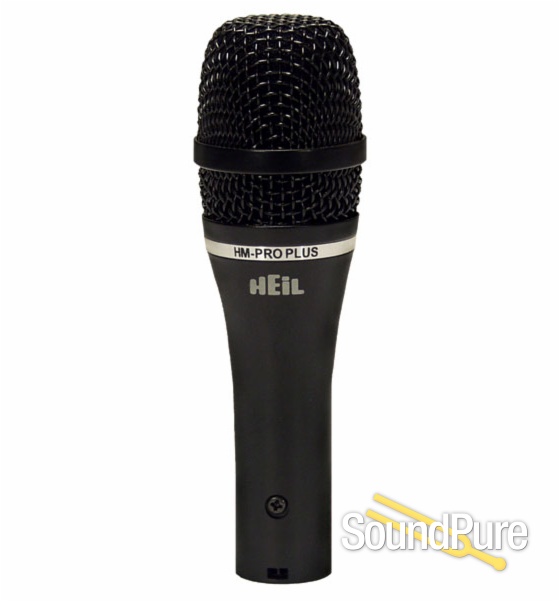

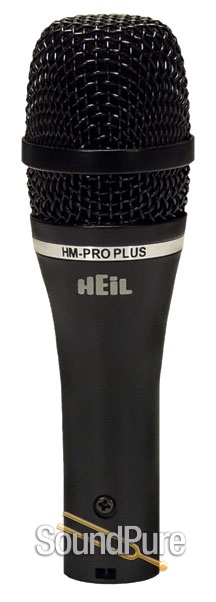

The Heil Handi Mic Pro Plus represents completely new dynamic microphone technology designed for a wide range of professional applications such as live sound, commercial broadcast, and sophisticated recording. Its wide frequency range outperforms the tired, 30+ year old industry technology and can withstand huge amounts of SPL. The end result is a microphone that can answer the call to any application. The Handi Mic Pro Plus is ideal for use with tom drums where smaller microphones are needed, as well as inside Leslie speakers. The Handi Mic is perfect for an interview microphone where its small size makes it a very low profile microphone with great sound.

Since 1982, Heil Sound has been the leading manufacturer of communications microphones and has a paramount understanding of phasing. When properly applied, this knowledge creates outstanding cardioid patterns with unbelievable rear rejection that removes unwanted sounds that try to enter from the off axis rear. The pattern control of the Heil Handi Mic Pro Plus is outstanding. This exceptional performance is achieved by using the ideal combination of materials for the large low mass diaphragm and a special mixture of neodymium, iron, and boron that gives the Handi Mic Pro Plus the strongest magnet structure available.

Special attention has been paid to the phasing plug assembly with equally placed ports that sense audio from behind, entering them out of phase. Thus, the Handi Mic Pro Plus produces a very linear cardioid pattern and reduces the proximity effect while achieving perfect articulation. This new Heil element is usable in extreme high sound pressure levels and is immune to overload conditions making it perfect for vocal and live sound applications.
