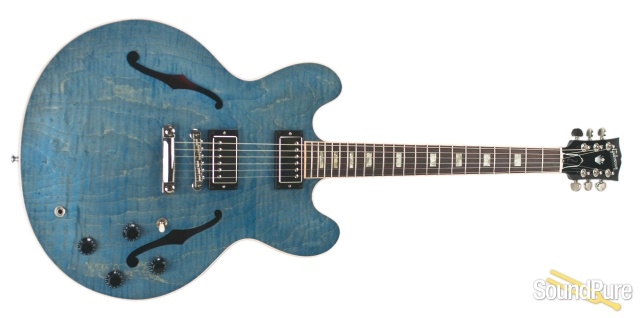

2015
Serial Number: 10095711
*Pickguard in case*

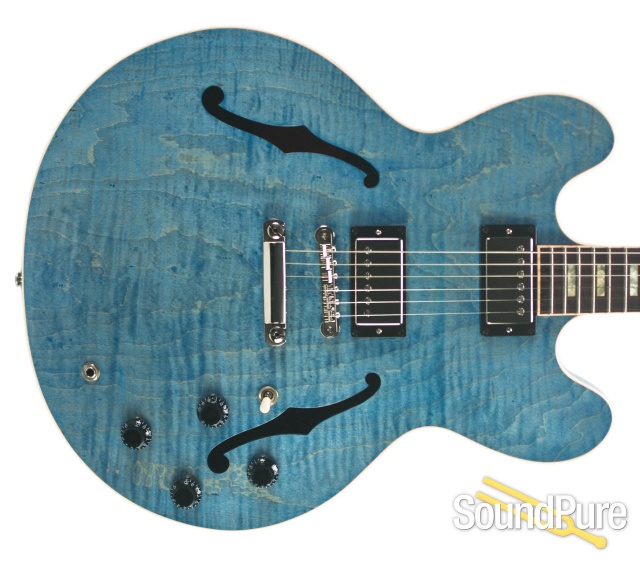

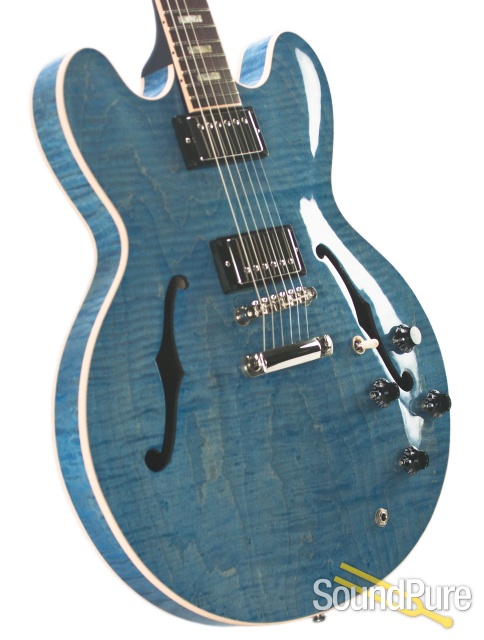

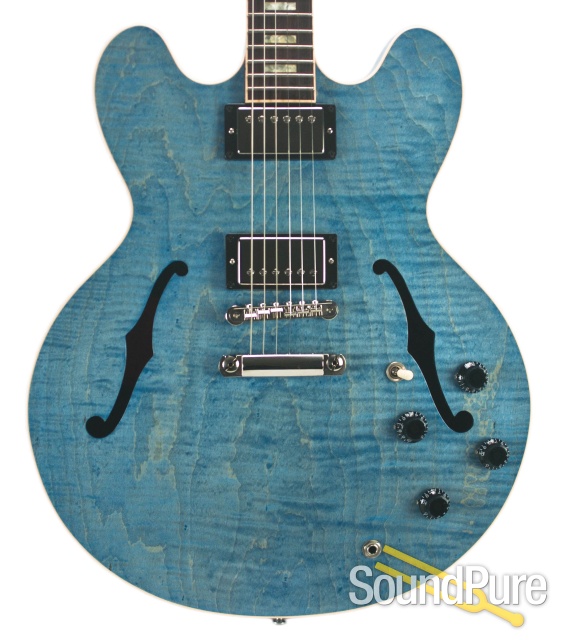

BODY
WOOD SPECIES
Top: Figured Maple/Poplar/Maple, 3-Ply, Cream Binding

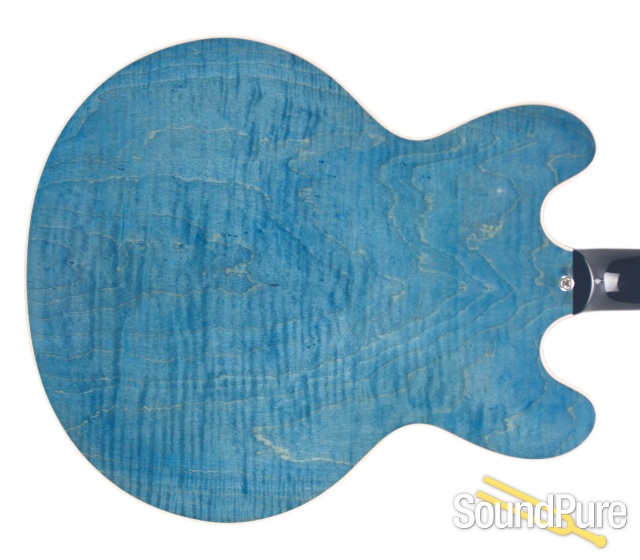

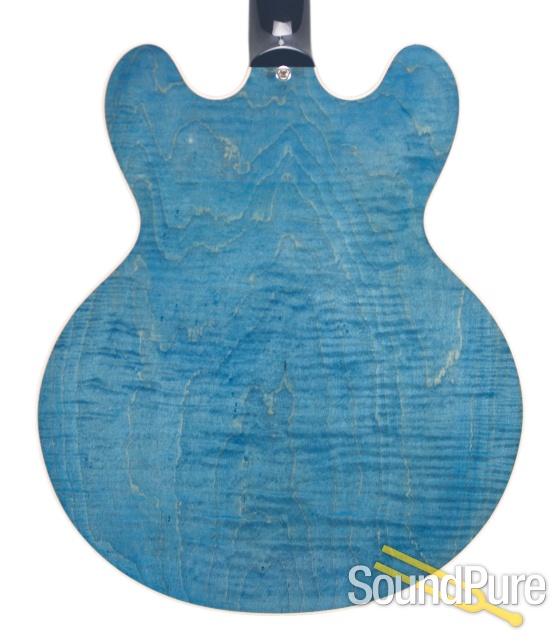

Back: Figured Maple/Poplar/Maple, 3-Ply, Cream Binding
Rims: Figured Maple/Poplar/Maple, 3-Ply
Glue: Franklin Titebond 50
Tonal, Resonant, and/or Technical Effect: The sound waves resonate within the hollow airspace of the Maple veneered Body, around
the F-holes, and throughout the solid glue joints.
NECK
NECK
Wood Species: Mahogany
Pieces: 1
Truss Rod: Historic
Profile: Slim Taper
Thickness at Fret 1: 20.32 mm / .800"
Thickness at Fret 12: 22.225 mm / .875"
NECK FIT
Joint Angle: 4 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortise and Tenon
Adhesive: Franklin Titebond 50
Gauges Used: Pitch Height Gauge, Alignment Gauge
FINGERBOARD
Wood Species: Rosewood (Medium Shade)
Pieces: 1
Radius: 30.48 cm / 12"
Frets: 22
Scale: 62.865 cm / 24.75”
Binding: Cream
Side Dots (Color): Black
Inlay Style: Small Block
Inlay Material: Pearloid
Dimensions: 19.558 mm x 12.70 mm / 0.770" x 0.500"
NUT
Style: White
Material: Bone
Width: 4.2545 cm / 1.675"
Slots: E: 1.2268 mm / 0.0483 inches
A: 0.9601 mm / 0.0378 inches
D: 0.6934 mm / 0.0273 inches
G: 0.4534 mm / 0.01785 inches
B: 0.3467 mm / 0.01365 inches
e: 0.2667 mm / 0.0105 inches

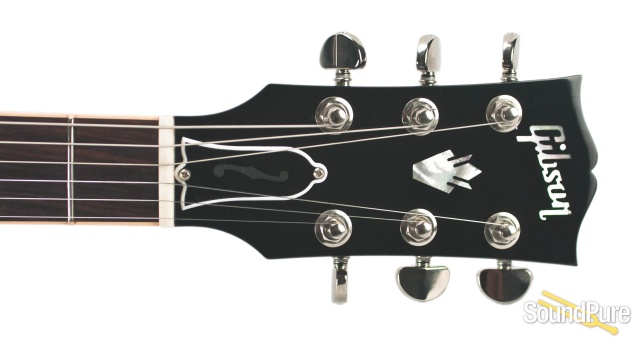

PEGHEAD
Type: SP-1
Inlay: Mother of Pearl Crown
Logo: Mother of Pearl "Gibson"
Headstock Angle: 17 Degrees
Tonal, Resonant, and/or
Technical Effect: The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain
and depth, and yielding a resonance that can be felt right through the body.
FINISH
Finish: Indigo Blue
Color Code: IB
Surface Texture: Smooth/ Hi-Gloss 90 Sheen Lacquer
Filler: Natural
Sealer: 1-1.5 mils
Top: Blue Stain, Phthlo Blue
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides, Body and Nut
PICKUPS
Style: '57 Classic
Winds/Coil, Screw Side/Slug Side: 5250/5250
Material of Wire (Gauge): 42E
Coil Dimensions: 6.6294 cm x 1.7272 mm / 2.61" x 0.68 "
Coil Material: ABS
Coil Winding Process: Machine Wound
Pole Piece Material: Nickel-Plated Steel
Pole Piece Position from Nut: 47.3075 cm / 18.625"
Slug Material: Nickel-Plated Steel
Slug Dimensions: 4.7498 mm x 1.24206 cm / 0.187" x .489"
Magnet Material: Alnico II
Magnet Position from Nut: 48.26 cm / 19 "
Magnet Dimensions: 6.35 cm x 1.27 mm / 2.5" x 0.5"
Polarities: Screw side is the south pole of magnet
Cover: VOS Nickel-Plated
Qfactor: 5.95
ResistanceDC: 7.92k ohms
Resonant Frequency: 2450 Hz
Tonal & Resonant Advancements: Classic humbucker tone with matched bobbin windings for vintage humbucker tone with enhanced highs.
CONTROL POCKET ASSEMBLY
(Volume, Tone)
Type: CTS 500K Linear, CTS 500K Audio
Peak Voltage: 1080V, 1080V
Range: 0-500K, 0-500K
Power Rating: 1/4 watt above 100K ohms, 1/4 watt above 100K ohms
Resistance Tolerance: 500K +/- 20%, 500K +/- 20%
Minimum Resistance: 100 ohms, 100 ohms
Capacitors: Lead Value .022mf – Rhythm Value .015mf
HARDWARE

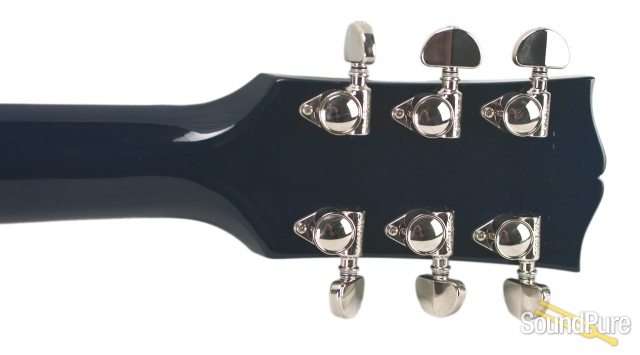

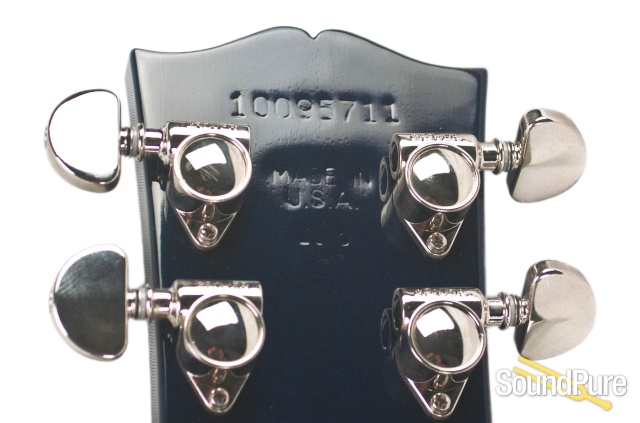

TUNING KEYS/TUNING KEY DETAILS
Style: Milk Bottle Grover Rotomatic
Material: Die Cast Alloy
Tuning Ratio: 18:1
Gear Type: Synchronized Spur Gear System
What Is Allowable turn: +/- 4 Degrees
Plating Specs: Nickel
Part numbers: 430-14192 / 430-14193
STRING DIMENSIONS
E: 1.1684mm / 0.046"
A: 0.9144 mm / 0.036"
D: 0.6604 mm / 0.026"
G: 0.4318mm / 0.017"
B: 0.3302mm / 0.013"
e: 0.2540mm / 0.010"
BRIDGE
Style: Tone Pro AVR-2
Material: Die Cast Alloy
Plating Specs: Nickel
Part number: 430-10155TP
Dimensions of String Slots
E: 1.2268 mm / 0.0483 inches
A: 0.9601 mm / 0.0378 inches
D: 0.6934 mm / 0.0273 inches
G: 0.4534 mm / 0.01785 inches
B: 0.3467 mm / 0.01365 inches
e: 0.2667 mm / 0.0105 inches
STRAP BUTTONS
Material: Aluminum
Part Numbers: 430-19150
PLASTICS
TRUSS ROD COVER
Style: Black and white bell with engraved FHole
Part Number: 430-19802
KNOBS
Style: Black Top Hat
Part Number: 430-19669
DIAL POINTERS
Yes
TRIM RINGS
Style: Black
Part Number: 440-13850
ACCESSORIES

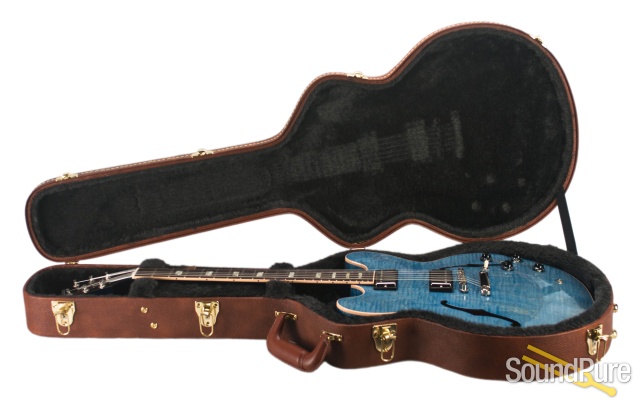

CASE
Style: Hardshell
Color: Tan

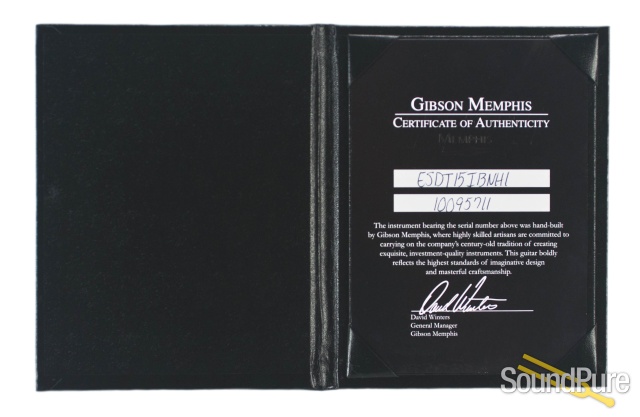

COA/Other: Gibson Memphis COA
