Fredenstein Bento 6S 500-Series Rack  From Fredenstein

With compressor buss linking and daisy chaining available, the Fredenstein Bento 6 is a versatile and dependable 500-series rack at an incredible price!

Fredenstein Professional Audio

$359.00

Retail:  $459.00

"Experience the Difference"

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $31/mo.

Manufacturer's Description from Fredenstein

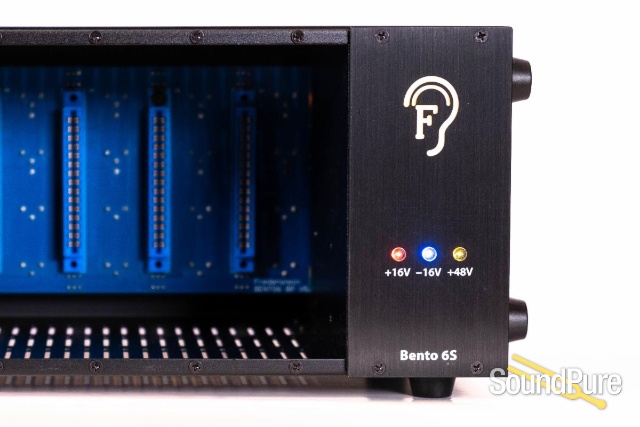

The Fredenstein Bento 6S is a high performance module carrier for Fredenstein Series 600 modules or API-500 compatible plug-in cards. The unit can accept a maximum of 6 modules.

The Bento 6 features several important upgrades compared with third party products:

Universal power supply: Mains voltages range from 90V AC to 240V AC, 50 to 60 Hz.



Increased output currents: +/-16V DC 1.6A and +48V DC 0.15A, 533mA per slot which is about 3 times more than the standard calls for.



The Bento 6S power supply is also designed for extremely low noise largely due to state of the art switching regulators that operate above 200 kHz, which is typically higher in frequency than most conventional switching regulators. They also follow “green” guidelines that minimize power consumption to only what is needed.



Other features include the capability to drive very large capacitive loads. Most other switching supplies might oscillate if presented with large capacitors to charge. The Bento 6S ramps up in a controlled manner (typically 0.2 seconds). Also unlike most +/- switching regulators, both the +16V and -16V are regulated separately and provide separate current protection.

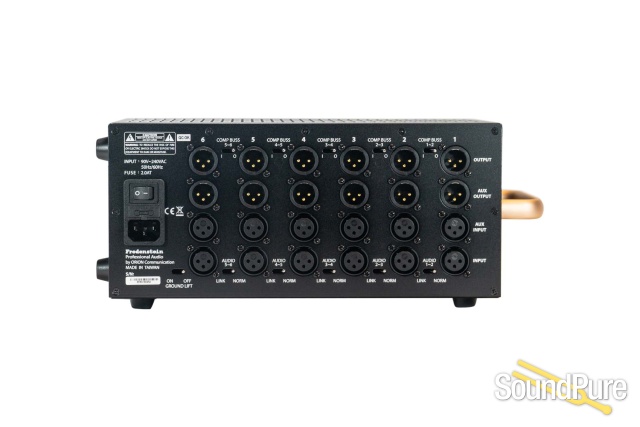

Auxiliary Audio Inputs and Outputs

Built-in Audio Routing: Modules can be daisy-chained by simply flipping switches on the back- panel.

Compressor buss linking: Compressor modules can be linked by engaging switches on the back- panel as well.

Multi-Layer Backplane: Increased signal integrity and lower noise floor.

Ground-lift switch: In case of ground loops, the audio ground and the protective ground can be disconnected. Please use only if absolutely necessary.

Fredenstein Professional Audio

About Manufacturer

Think about what is sonically missing in today's audio equipment and how you could achieve better results in recording and mastering? Now, many go back to well proven classic pieces of audio gear to fight the shortcomings of digital recording. Could that be the ultimate solution? Did the improvements in technology during the last 50 years really don't apply to recording? Using technologies from vacuum tubes to Digital Signal Processors, often in the same product, Fredenstein products combine the strength of each technology and avoiding their weaknesses. In addition we strongly believe in Zero-Negative-Feedback, negative feedback is a technique to make amplifiers more linear, but at the same time making them sounding harsh. This is one of the reasons modern equipment sounds so similar. Omitting negative feedback and using an internally and externally balanced designs which are very linear by design will yield a natural sound on a different level, warm, not dull or muffled, instead with a rich silky top-end and an impulse response will simply blow you away. Don't get us wrong, we are not talking about 「esoteric designs」, we believe very strongly in a scientific engineering approach.



We also provide pieces of long neglected equipment like precision analog meters. Even if you are working mostly inside the 「box」, metering your analog signal before it hits your converters is still very important and a great foundation for good recording. Fredenstein's state-of-the-art audio technology will help you throughout your chain to achieve truly outstanding results.

In addition, Fredenstein believes recording engineers deserve to have a more user friendly, more convenient and efficient pieces of equipment making the studio life easier and generate a more comfortable working environment. By minimizing the number of buttons and switches without sacrificing the functionality we deploy a clean user interface allowing you to get instantaneously familiar with the products.

Fredenstein Professional Audio Products are designed for audio professional in recording and broadcast studios as well as independent engineers and producers in their own facilities.

Fredenstein is focused to make a difference in Professional Audio. You can expect superior sound and high-end built quality from each of our products

Specifications

Input Voltage: 90V AC to 240V AC, 50 to 60 Hz

Output Voltages: +16V DC 1.6A -16V DC 1.6A +48V DC 0.1A

Power Consumption: max 90W

Dimension (LxHxD): 300mm x 135mm x 190mm (without handle and feet)

350mm x 145mm x 190mm (including handle and feet)

Weight: 3.8kg(NW) ; 4.8kg(GW)

Downloads

Action

Name

Description

6S User Manual
