Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System, from Avid

Share |
Product image + -
Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System
(+) view full gallery
Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System
Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System Avid Pro Tools HD Native Thunderbolt+HD 16x16 Analog System

Pro Tools HD + HD Native Thunderbolt Interface + HD I/O 16 x 16 Analog System

Usually ships 6-10 business days after order.

1 similar version(s) available to choose from

Avid ProTools 10: Window Configurations Demonstration

More text

  Avid's PT10 offers new and improved "Windows Configuration" options, designed for optimal workflow yet easily tweaked and customizable. As Michael Pearson-Adams demonstrates at SoundPure studi...

Less text

  Avid's PT10 offers new and improved "Windows Configuration" options, designed for optimal workflow yet easily tweaked and customizable. As Michael Pearson-Adams demonstrates at SoundPure studios, Pro Tools' predesigned layouts - and specifically their interplay with the computer's memory locations - allow for seemingly endless screen real estate options, all while perfectly managing your computer's performance. This is just an introduction to the power that Pro Tools 10, combined with the Pro Tools HDX System, has to offer. If you have any questions about working with the Window Configurations in Pro Tools, the Avid Pro Tools HDX System, or about recording in general, call us today or be sure to visit SoundPure.com for more information about any of our products. 919.682.5552. or 888.528.9703.

Pro Tools 10 - Disc Schedular Demo by Avid

More text

Avid's Disc Schedular in Pro Tools 10 is explained in detail by Avid Applications Specialist Michael Pearson-Adams in this PT10 Tutorial video at Sound Pure Studios. The power of Pro Tools 10 is seen ...

Less text

Avid's Disc Schedular in Pro Tools 10 is explained in detail by Avid Applications Specialist Michael Pearson-Adams in this PT10 Tutorial video at Sound Pure Studios. The power of Pro Tools 10 is seen with its ability to cache your timeline and clip bins into the RAM. If you are in a large session, your audio in the timeline will cache starting at your playhead, and move out from it - this allows a lot more power and flexibility. To learn more about using your disc cache in Pro Tools 10 and allocating your RAM for optimal performance, call the experts at Sound Pure today. 888.528.9703.or 919.682.5552.

Pitch Shift Using Elastic Audio Properties in Pro Tools 10 - Avid Tutorial Demo

More text

In this Pro Tools 10 demo on Elastic Audio, Avid Applications Specialist Michael Pearson-Adams demonstrates how to easily change the pitch of one note in Alicia Keys' vocal recorded at Jungle City Stu...

Less text

In this Pro Tools 10 demo on Elastic Audio, Avid Applications Specialist Michael Pearson-Adams demonstrates how to easily change the pitch of one note in Alicia Keys' vocal recorded at Jungle City Studios. Watch our other ProTools 10 and Avid HDX demo videos in this series to learn more about the incredible new features of PT10. For any questions regarding Pro-Tools and Avid's new HDX system call the recording engineers at Sound Pure today. 919.682.5552. or 888.528.9703

Avid Pro Tools 10 Demo: Plug-Ins

More text

SoundPure Studio hosts ProTools Specialist Michael Pearson-Adams for a Demo of some essential plug-ins in Avid's PT10, as well as an introduction to Avid's new AAX plug-in platform. The AAX platform r...

Less text

SoundPure Studio hosts ProTools Specialist Michael Pearson-Adams for a Demo of some essential plug-ins in Avid's PT10, as well as an introduction to Avid's new AAX plug-in platform. The AAX platform raises the ceiling for plug-in developers, and paves the way for the move toward 64-bit recording. Some of the plug-ins examined include the "Transfuser," the "Channel Strip," Cytomic's "The Glue," and more. These are just a few of the new components of this powerful software from Avid, check back soon for more videos on new updates and features of Pro-Tools 10. If you have any questions about working with Pro Tools 10, the Avid Pro Tools HDX System, or about recording in general, call us today or be sure to visit SoundPure.com for more information about any of our products. 919.682.5552. or 888.528.9703.

Pro Tools 10 - Fade Files & Audio Suite Processing - Avid Demo

More text

In this Avid ProTools 10 and their new HDX system demonstration, Michael Pearson Adams demonstrates some improvements with the audio files (which are no more!) and some new audio suite processing feat...

Less text

In this Avid ProTools 10 and their new HDX system demonstration, Michael Pearson Adams demonstrates some improvements with the audio files (which are no more!) and some new audio suite processing features. Now after you render an audio suite plugin, you can create handles to that file which makes editing audio much easier and faster thanks to this improvement. Learn more about PT10 and HDX from Avid by watching our other videos in this series. Or call our recording engineers today to learn how Pro Tools 10 can fit your recording needs. 919.682.5552. or 888.528.9703

Description:

Pro Tools HD Native

Pro Tools|HD Native is a new generation of Pro Tools|HD system that enables you to compose, record, edit, and mix music and/or sound for picture—with great speed and ease. Consisting of an HD Native Thunderbolt interface or PCIe core card, Pro Tools HD software, and Pro Tools HD Series interface, Pro Tools|HD Native harnesses the power of your Mac or PC to deliver pristine sound, incredible performance, and the lowest latency of any host-based DAW.

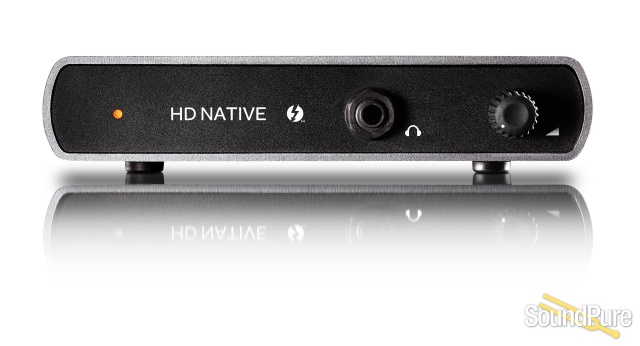

Choice of HD Native Thunderbolt interface or PCIe card

Unlike USB- or FireWire-based DAWs, which are inherently prone to latency, Pro Tools|HD Native employs either a high-speed Thunderbolt interface or PCIe core card to connect Pro Tools HD Series interfaces with your laptop or desktop computer. By eliminating distracting monitor latency while recording, increasing your I/O capabilities, and providing 64-bit floating-point processing for more headroom and a higher mix resolution, you get a professional native solution that meets the highest audio standards.

Pro Tools HD software

Award-winning Pro Tools software has been the industry-standard digital audio production platform for years. The software tightly integrates your HD Native hardware and computer together as one, delivering exceptional performance and reliability—even with large mixes. And it comes with all the tools, advanced workflows, virtual instruments, and plug-ins you need to compose, record, edit, and mix music and/or sound for picture.

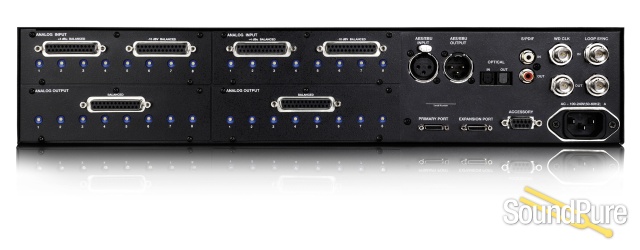

HD I/O

HD I/O is a high-performance Pro Tools HD Series audio interface that’s designed to completely integrate with Pro Tools|HD systems. The interface features premium A/D and D/A conversion and advanced circuitry, giving you pristine sound quality and clarity and the lowest possible latency.

HD I/O 16x16 Analog

The ideal choice for music productions—get the maximum complement of analog inputs and outputs (can be customized by replacing a card, but not expanded).

  • High-quality analog I/O:
    • 16 analog inputs (using DB25)
    • 16 analog outputs (using DB25)
  • Additional digital I/O:
    • 2 channels of AES/EBU I/O (supports 192 kHz singlewire)
    • 8 channels of ADAT I/O (supports S/MUX II and IV)



System Features

  • Harness the power of your desktop or laptop computer with your choice of Thunderbolt interface or PCIe card
  • Attain the lowest latency and highest performance of any native digital audio workstation
  • Capture and play back audio with pristine clarity using a Pro Tools HD Series interface
  • Work with industry-standard Pro Tools HD software in a lower-cost solution for projects that don’t require the DSP acceleration of Pro Tools|HDX
  • Create bigger sessions with up to 256 audio tracks and up to 64 channels of I/O
  • Get the ideal tracking experience and set-and-forget direct monitoring with an integrated low-latency monitor mode
  • Boost your capabilities with advanced automation, surround mixing, input monitoring, AFL/PFL solo, destructive punch, and other professional features
  • Conveniently monitor every detail with the audiophile-grade headphone out, which provides enough gain to drive high impedance headphones (Thunderbolt interface only)
  • Get better sounding mixes with AAX Native and RTAS plug-ins, plus Automatic Delay Compensation on hardware and software inserts
  • Share sessions with Pro Tools|HDX and Pro Tools|HD users without any loss of data
  • Synchronize to timecode and video reference, with frame-edge accuracy, when using SYNC HD (sold separately)
  • Take hands-on control over your mixes using Artist Series or Avid Pro Mixing consoles and control surfaces
  • Get total flexibility—work with Mac or Windows, Pro Tools HD or third-party software, and more

What’s Included

  • HD Series Interface
  • Pro Tools|HD Native Thunderbolt interface or PCIe card
  • DVD wallet, which includes:
    • Pro Tools HD software installation DVD (includes all bundled software)
    • Audio Loops DVD
    • Training Video DVD
  • User guides
  • iLok USB Smart Key (for software authorization)
  • Registration card and software activation cards
  • 12-foot DigiLink Mini cable for Pro Tools HD Series interface connection
  • DigiLink to DigiLink Mini adapter for older Pro Tools interface connection

Specs:

System Requirements

Mac OS X

  • Thunderbolt- or PCIe-equipped computer: Avid-qualified Apple computer
  • System software: (32 or 64-bit) Mac OS X Lion
  • Processor: Intel Core 2 Duo 2.33 GHz processor or faster
  • Memory: 4 GB of RAM (8 GB or more recommended)
  • Graphics card: NVIDIA Quadro FX family (recommended; FX 560 or higher)
  • Internal hard drive: Minimum 80 GB 7200 rpm hard disk
  • USB port for iLok authorization

Windows

  • Thunderbolt- or PCIe-equipped computer: Avid-qualified Windows-based computer
  • System software: Windows 7 Professional SP1 (64-bit)
  • Processor: Intel Core 2 Duo 2.33 GHz processor or faster
  • Memory: 4 GB of RAM (8 GB or more recommended)
  • Graphics card: NVIDIA Quadro FX family (recommended; FX 560 or higher)
  • Internal hard drive: Minimum 80 GB 7200 rpm hard disk
  • USB port for iLok authorization

HD I/O 16 x 16 Analog System Specifications

Compatibility

All configurations of HD I/O work with the following host audio systems:

  • Avid-qualified Pro Tools|HD family system running Pro Tools HD 8.1 or higher software
  • Avid-qualified Pro Tools|HD family system running a Core Audio or ASIO compliant application

Analog inputs

16

Analog outputs

16

AES/EBU I/O

2

AES single-wire (192 kHz)

Yes

S/PDIF I/O

1 In + 1 Out (coax or optical)

ADAT I/O

8

S/MUX

S/MUX II and IV

SRC

N/A

Word Clock I/O

1 In + 1 Out

Loop Sync I/O

1 In + 1 Out

Digital interface

DigiLink Mini

Dynamic range ADC

122 dB

Dynamic range DAC

125 dB

THD+N ADC

-114 dB (0.0002%)

THD+N DAC

-110 dB (0.00032%)

Frequency response ADC

20 Hz – 20 kHz N/A
(+/-.03 dB)

Frequency response DAC

20 Hz – 20 kHz N/A
(+/-.15 dB)

Expansion

None (card swaps only)

Curv

Yes

Soft clip

Yes

Cal trims

Yes

Metering

32 4-segment LEDs

Internal fan

Yes

Chassis

2U rack-mountable

Action

Name

Description

HD Native User Guide v9.0

HD Native Data Sheet

HD I/O User Guide v8.1

HD I/O Data Sheet
