API Audio 212L 200 series Preamplifier  From API

Discrete Mic Pre.

API Audio

$695.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $61/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from API

Features

  • Wide range GAIN control
  • 20 dB Pad
  • 48v Phantom Power Switch
  • RE 115 K Mic input Transformer
  • LED VU Meter
  • Uses API 2520 Op-Amp
  • All Discrete Circuit
  • Transformer Coupled Inputs & Outputs to +28 dBu

The tone of the 212L mic preamp finds its roots in the classic API 2488 series all discrete recording consoles, best known for the famed "LA" sound. This same mic preamp design is packaged into a compact module with features like a continuously adjustable Gain control and a unique 5 segment LED VU meter on each panel.

An audio chain is only as strong as its weakest link. Often, emphasis is placed on obtaining the highest quality microphones, while neglecting the integrity of the mic preamp. The API 212L incorporates the same circuit as the legendary API console input modules, dating from the 1970's up to and including the Model 1608, thus preserving its sonic qualities. This mic-pre articulates high frequencies with great detail, while delivering the big sounding, warm bottom end that API is famous for. Whether it's a live performance or the private setting of a studio session, the 212L will capture every nuance of the moment.

The 212L mic-pre all discrete circuitry features the API 2520 op-amp, the RE 115 K input and the AP-2623 output transformer. A -20 dB pad is provided, allowing the level feeding the mic transformer to be reduced by 20 dB, while keeping the proper load on both the mic and transformer. 48V Phantom power can be locally switched on or off via the front panel switch. An LED VU meter provides a true VU indication of the mic pre output level. The low noise floor, together with a clip point over +28 dBm, makes this preamp suitable for the most extreme applications requiring the highest quality audio.

The API 212L microphone pre-amplifier is an integral part of the famous Legacy and Visions Series of consoles and is available for the L200 Rack System. The 212L Microphone Preamplifier makes use of the 2520 op-amp and therefore exhibits the reliability, long life and uniformity which are characteristic of API products.

API Audio

About Manufacturer

API (Automated Processes, Inc.) is world famous for its all-discrete audio products: studio and broadcast mixing consoles, and a full line of rack mount mic preamps, equalizers and processors. It all began with a dream. It was 1968. The company: Automated Processes Inc., formed by men with a vision. Best known for their now legendary "2520 amplifier", this unique amp has been and will continue to be the heart of all API discrete products. It continues to provide reliability and sonic purity unmatched by the competition. The resulting console met the needs of the music, commercial and broadcast industry. API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over thirty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world because, to date, there are few, if any consoles of equal sound quality at a cost-effective price.

Specifications

Specifications

Input Impedance:

Mic In 1500 Ohms

Output Impedance:

85 Ohms, Transformer coupled, Balanced

Maximum Input Level:

+2 dBu, No Pad, +18 dBu, with Pad In

Gain:

55 dB max

PAD:

20 dB, 1500/150 Ohm load

Clipping Level:

+28 dBu

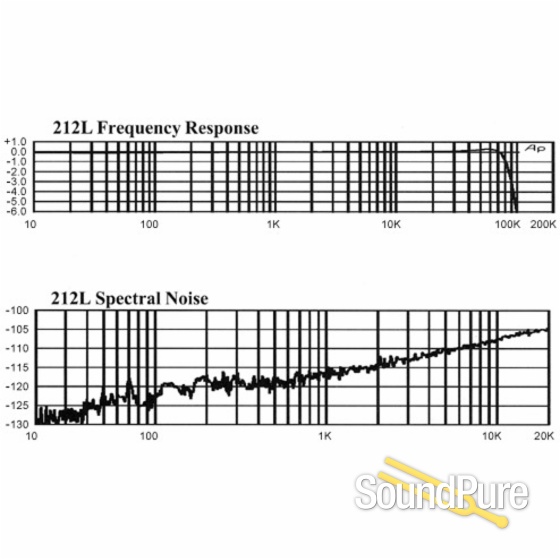

Frequency Response:

0, -.3, 30 to 20 kHz

Noise (Actual Measured):

-102 dBu Unweighted, -125 dBu "A" Weighted 20-20 kHz

Distortion:

THD + N:

.02% (+4 dB @ 2 kHz)

.01% (+15 dB @ 2 kHz)

.05% (-15 dB @ 2 kHz)

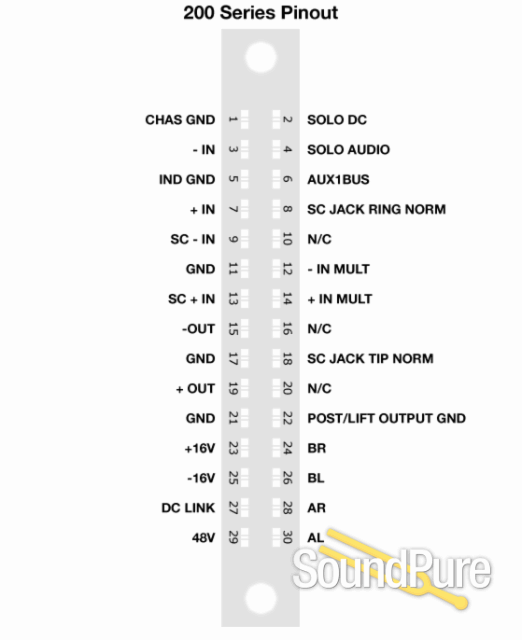

Connectors:

.100 spaced ELCO

Power Consumption:

±16 Volts DC, 40mA max at +24 dBu out

Size:

1.25" X 2.65" X 6.5" Deep

Size (Boxed for Shipping):

4.5" X 6.25" X 10"

Actual Weight:

.55 lb.

Shipping Weight:

.92 lb.

Sound Clips

Downloads

Action

Name

Description

Manual

Recommended Accessories
