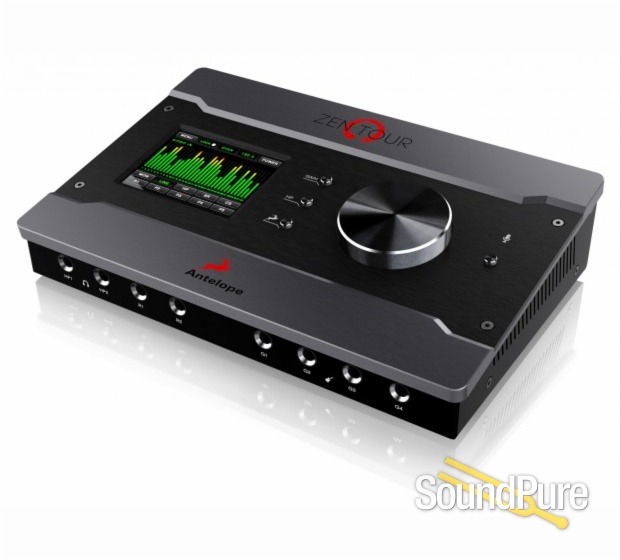

Antelope's revolutionary thunderbolt interface boasts an impressive 8 Analog I/Os in a compact size. *Includes a Free Copy of Presonus Studio One Artist*

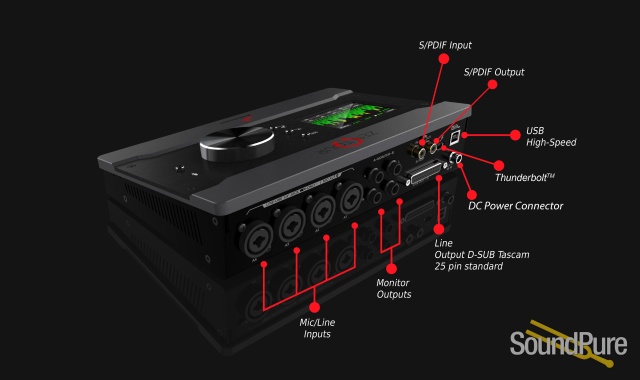

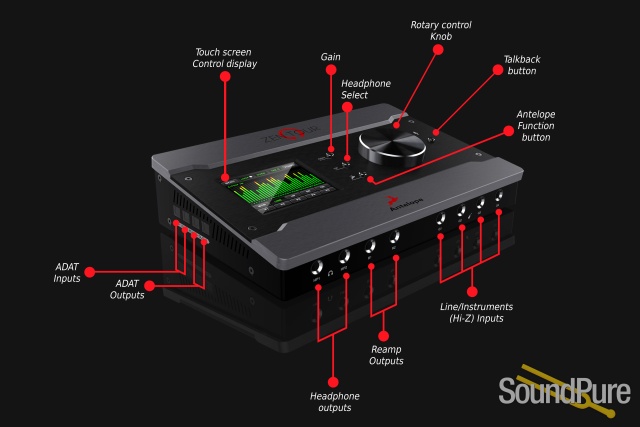

Analog Inputs: 4 x Mic / Line Instrument on XLR combos on the back, 4 x Hiz / Line on TRS combos on the front
Digital Inputs: 2 x ADAT (up to 16), 1 x S/PDIF
Analog Outputs: 8 x Lines on 1 x DB25 (8 channels), 2 x Stereo Monitor out on TRS (4 channels, only 1 active at a time), 2 x Stereo Headphone out on TRS (4 channels), 2 x ReAmp outs on TRS (2 channels)
Digital Outputs: 2 x ADAT, 1 x S/PDIF, USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Power Supply: DC Universal Input 18V
Thunderbolt: 1 x Thunderbolt, 32 channels
D/A Monitor Converter: Dynamic Range: 129 dB THD + N: -108 dB
D/A Converter: Dynamic Range: 120 dB THD + N: -107dB
A/D Converter: Dynamic Range: 120 dB THD + N: -110 dB
Power Consumption: 25 Watts Max
Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS, Oven Controlled Crystal Oscillator
Clocking Stability: <+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF
Clock Aging: < 1 ppm per year
Clock Calibration: <+/-0.001 ppm
Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Mic Pre: Gain: 0 – 65 dB, THD + N: -108 dB
