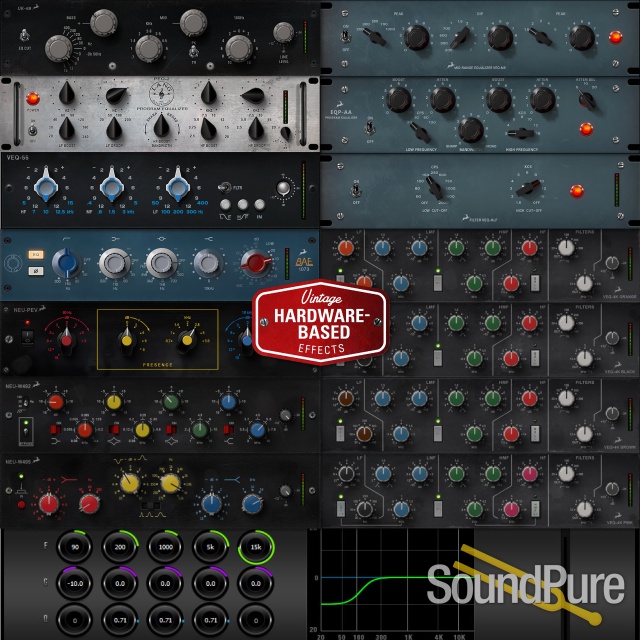

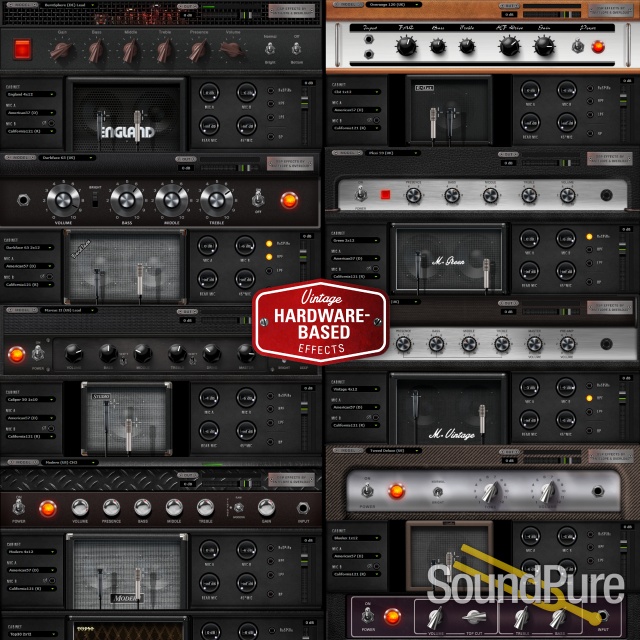

ANALOG
Analog Inputs
• 1 × DB25 (8 channels)

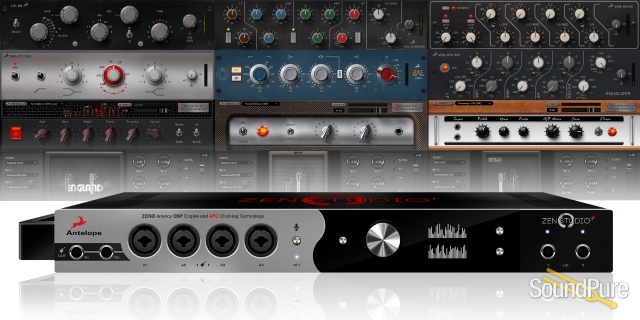

• 4 × Mic / Line / Hi-Z on XLR combos on the front

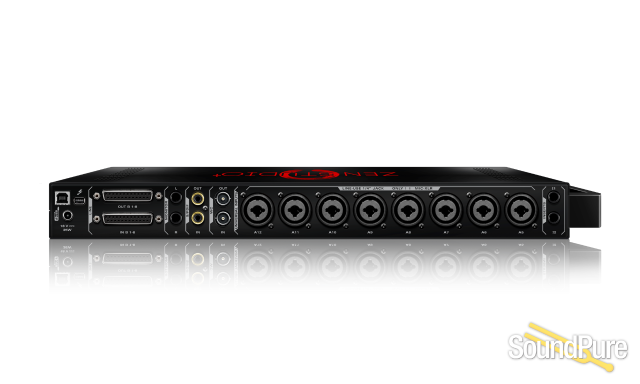

• 8 × Mic / Line on XLR combos on the rear
Analog Inserts
2 × Inserts on 1/4″ TRS (dedicated for inputs 1, 2)
Analog Outputs
• 1 × DB25 (8 channels)
• 1 × Stereo pair of Monitor outs on 1/4″” TRS
• 2 × Stereo Headphone outs on 1/4″” TRS (4 channels)
• 2 × ReAmp outs on 1/4” TRS
D/A Monitor Converter
Dynamic Range: 118dB
THD + N: -98dB
A/D Converter
Dynamic Range: 120 dB
THD + N: -110 dB
D/A Converters
Dynamic Range: 118 dB
THD + N: -105 dB
Mic Preamp
Gain: 0,10 – 65 dB
THD + N: -108 dB
DIGITAL

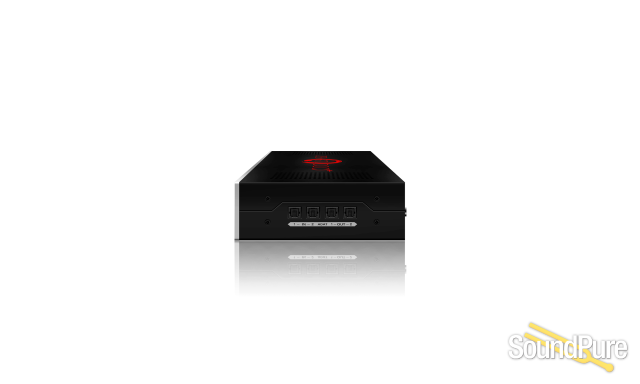

Digital Inputs
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
Digital Outputs
• 2 × ADAT (up to 16 channels)
• 1 × S/PDIF
USB I/O
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Thunderbolt™ I/O
1 x Thunderbolt™, 32 channels I/O
CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs
1 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator
Clock Stability
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging
< 1 ppm per year
Clock Calibration
< +/-0.001 ppm
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
OTHER
Operating Temperature
0-50°C, 32-122°F
Weight
2kg / 4.4 lb (approx )
Dimensions (approx)
• Width: 418 mm / 16.5”
• Height: 45 mm / 1.8”
• Depth: 145mm / 5.7″
Electrical specs
DC Universal input: 18V
Power Consumption: 25 Watts Max
In the box
• Zen Studio+ Portable Audio interface
• Quick Start Guide
• Warranty Card
• 1 USB Cable
• 1 DC Power Adapter
