The Antelope Audio Eclipse 384 is an AD/DA Converter with 64 bit clocking, and 384kHz Conversion.
Eclipse 384 is an advanced 384 kHz A/D & D/A converter clocked by Antelope's renowned 64-bit technology and a flexible monitoring system that creates a technological synergy by combining the most prominent Antelope's innovations. It provides mastering and mixing engineers an unprecedented level of productivity, sound quality and ease of use.

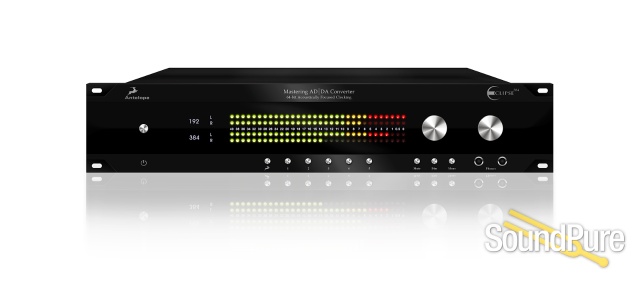

The Eclipse comprises 384 kHz A/D & D/A converters clocked by two independent 64-bit DSP Trinity-level clocks. The fully integrated monitor controller employs 0.05 dB accurate gold-plated relay attenuators and provides speaker switching, bass management and cue mix functions with integrated talkback. The Eclipse also includes two dedicated headphone amplifiers and a custom USB interface, as well as two large peak meters on the front panel. The advanced software control panel compatible with both Mac & PC, allows five nameable presets for easy recall of favorite setups.
Master clocks are becoming more and more popular for use with digital consoles and recording equipment at concerts and live events. By using the Eclipse 384, a live sound engineer is able to provide sync reference for up to four different devices, while using the main D/A for backing material, the A/D with multiple digital outs feeding redundant recording systems, and monitor DAC to check the recording post A/D conversion.
The unique dual-domain clocking system enables analog-based, more natural sounding sample rate conversion. The integrated patching/routing capabilities make monitoring of either analog or digital sources extremely simple, avoiding jitter, distortion and cabling noise. By eliminating the many input and output stages and the various power supplies, that would be present in separate devices, the noise floor can be substantially reduced and the audio quality significantly improved.

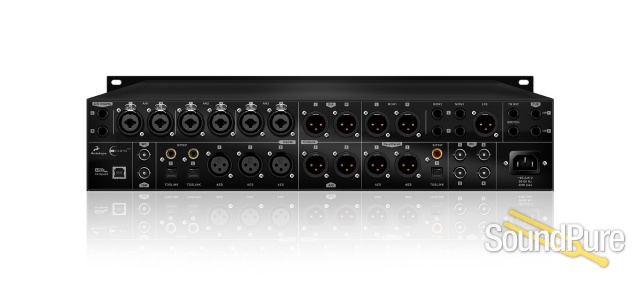

SPECIFICATION
Inputs
Analog Inputs | 3 x Combo Balanced Analog (XLR / ¼ TRS) 2 x ¼ TRS A/D Insert points 1 x ¼ TRS Talkback 1 x ¼ TRS Foot switch |
Digital Inputs | 3 x AES/EBU on XLR. 32kHz to 192kHz @ 110 Ohms terminated 2 x S/PDIF on RCA. 32kHz to 192kHz @ 75 Ohms terminated 2 x TOSLINK on optical fiber: up to 96kHz |
Outputs
Analog Outputs | 2 x Balanced XLR outputs from D/A Converter 3 x Balanced Outputs for monitors (1 x XLR and 2 x TRS) 1 x Balanced XLR LFE Out 2 x ¼ TRS Cue Mix Headphones 2 x ¼ TRS Front Headphones |
Digital Outputs | 2 x AES/EBU on XLR for the A/D converter out (32kHz to 192kHz; 384kHz for dual wire when 384kHz is selected in the clock) @ 110 Ohms terminated 2 x De-jittered AES/EBU on XLR (32kHz to 192kHz; 384kHz for dual wire when 384kHz is selected in the clock) @ 110 Ohms terminated 1 x De-jittered S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x De-jittered TOSLINK on optical fiber: up to 96kHz |
USB | USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B |
Word Clock | 1 x 10M Atomic Clock input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz square wave signal |
D/A Converter
Dynamic Range | 129dB |
THD + N | 0.0004 % |
A/D Converter
Dynamic Range | 123dB |
THD + N | 0.0004 % |
Clock Specs
Clocking System | 4th Generation Acoustically Focused Clocking 64-bit DDS Oven Controlled Crystal Oscillator |
Clocking Stability | <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF |
Clock Aging | < 1 ppm per year |
Clock Calibration | <+/_0.001 ppm |
Atomic Clock Input | 10MHz @ 1Vpp, BNC |
Sample Rates (kHz) | 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 |
Clock Generators | 2 Independent Clock Generators |
Varispeed | +/-200 cents + 12.246 % 10.910 % |
Operating Temperature | 0-50ºC/32- 122ºF |
Weight | 8 kg/17,64 lb |
Dimensions (approx.) | Width: 483 mm/19" Height: 88 mm/3.47" Depth: 282 mm/11.1" |
Power Supply | AC Universal input 95-245VAC 20 Watts Max Consumption |
