Item selected is discontinued (details below). Related products available now:

ADAM Audio S4X-H Active Studio Monitor Pair  From ADAM

Active Studio Monitor

ADAM Studio Monitors

Manufacturer's Description from ADAM


The S4X models

The S4X monitors are not just an improved versions of the famous and highly acclaimed S4A but an evolutionary development. Like their predecessors, they have been designed for medium size control rooms. Given their excessive power, the S4X are also capable of working in larger environments. Because both S4X models have identical tweeters and midrange drivers handling frequencies above 350 Hz, any combination of either model will integrate perfectly in a 5.1 or 7.1 installation.

X-ART & newly developed broadband amplifier

All models of the SX-Series are equipped with the new X-ART tweeter. The X-ART tweeter has a 4dB higher efficiency, a 3dB higher maximum sound pressure level, and an increase in frequency response up to 50 kHz. The newly designed broadband A/B amplifier has been developed by ADAM to perfectly match the needs and capabilities of the X-ART tweeter. The entire range of sound can be heard as never before.

New HexaCone-woofers

The new HexaCone-woofers are designed with larger and longer voice coils that deliver more linear excursion for higher SPL max. values. A stronger magnetic structure is added as well for an optimum in efficiency and accuracy.

Optional digital input and magnetical shielding

All SX-models (except the S1X) can be optionally retrofitted with a 24 bit/192 kHz D/A Converter featuring an AES/EBU (XLR) and a SPDIF (RCA) inputs as well as a R/L/Mono switch.

All models can optionally be magnetically shielded.



The front panel (from S2X upwards)

Six controls to change the settings for input sensitivity, lower frequencies, and higher frequencies can be found on the new, highly sophisticated front panel."

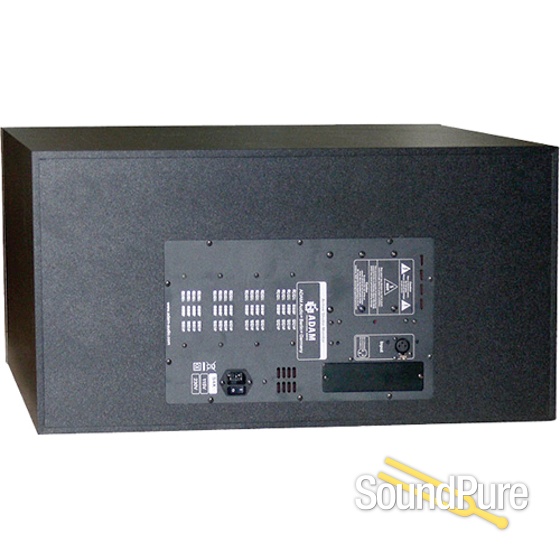

S4X-H

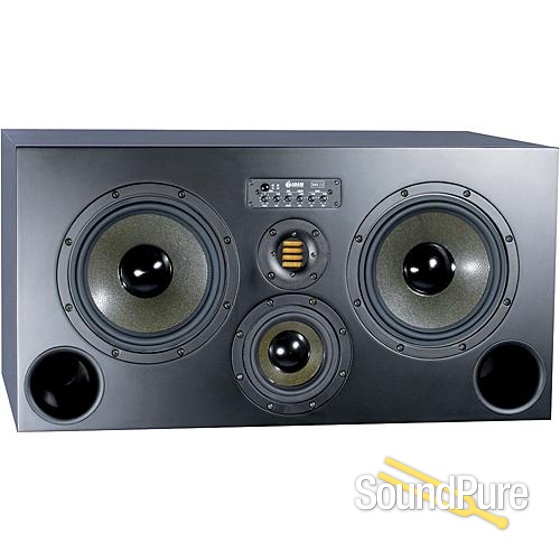

The S4X-H midfield monitor combines the X-ART tweeter with a 5" HexaCone-midrange and two redeveloped 9" HexaCone-woofers.

Each of the woofers and midrange drivers are driven by a 250 W ICE module. To allow the X-ART tweeter to extend to its highest frequencies, it is combined with a unique ADAM Audio A/B amplifier. This unique amplifier has ultra low distortion and an immense internal bandwidth of more than 1MHz. Combine this amplifier with the X-ART tweeter and you get a fascinating sound that is effortless and of highest resolution.

Improperly designed larger monitors are always at risk at compromising the overall sound with bass reproduction that is too intense. As in all ADAM Audio designed speakers, both versions of the S4X have been designed to combine both the power and volume of the bass (28 Hz at -3 dB point) with the highest possible precision. Combine this with the transparent high and midrange frequencies of the S4X and this will give an engineer a new quality level of control and performance for larger rooms.

ADAM Studio Monitors

About Manufacturer

ADAM studio monitors are state-of-the-art, no compromise speakers intended for audio engineers who are interested in the truest possible reproduction of their recordings. ADAM monitors have been constructed with one design objective only: to achieve the most realistic sound quality for each speaker in the line. Groundbreaking innovation in electro-acoustic transducers, painstaking design and superior materials are the cornerstones of ADAM Technology. The authentic reproduction of recordings of acoustical events (a frequently discussed and subjective issue) is our yardstick in the unconditional search for the finest product possible. To achieve this goal we combine years of our own musical and acoustic experience and with feedback from the critical 'golden ears' of our professional customers, and double-check the results with the most advanced measurement techniques in order to ensure the finest sound reproduction available at any price. ADAM Audio produces a complete range of both passive and active monitoring systems to suit any given studio environment, from the smallest home/project studios to the most demanding professional environments and applications.

Specifications

br> Woofer
Number:2
Basket:9"
Cone material:HexaCone

Midrange
Number:1
Type:Cone driver
Basket:6"
Cone material:HexaCone

Tweeter
Number:1
Type:Xart
Diaphragm area:4"

Built-in Amplifiers
Woofer:2
Type:PWM
Amp. power RMS / music: 250 W / 350 W
Midrange:1
Type:PWM
Amp. power RMS / music:250 W / 350 W
Tweeter:1
Type:A/B
Amp. power RMS / music: 50 W / 100 W
