ADAM Audio S3X-H Active Studio Monitor Pair  From ADAM

The NEW SX-Series

The new SX-Series is based on ADAM's highly acclaimed S-Series. However, it is not a simple revision of existing models but a fundamental transformation with no details having been overlooked and every sound crucial aspect has been evaluated. All transducers, drivers and electronics have been redesigned. The result is much more than an improvement, it is a quantum leap in professional monitoring.

X-ART & newly developed broadband amplifier

All models of the SX-Series are equipped with the new X-ART tweeter. The X-ART tweeter has a 4dB higher efficiency, a 3dB higher maximum sound pressure level, and an increase in frequency response up to 50 kHz. The newly designed broadband A/B amplifier has been developed by ADAM to perfectly match the needs and capabilities of the X-ART tweeter. The entire range of sound can be heard as never before.

New HexaCone-woofers

The new HexaCone-woofers are designed with larger and longer voice coils that deliver more linear excursion for higher SPL max. values. A stronger magnetic structure is added as well for an optimum in efficiency and accuracy.

Optional digital input and magnetical shielding

All SX-models (except the S1X) can be optionally retrofitted with a 24 bit/192 kHz D/A Converter featuring an AES/EBU (XLR) and a SPDIF (RCA) inputs as well as a R/L/Mono switch.

All models can optionally be magnetically shielded.

The front panel (from S2X upwards)

Six controls to change the settings for input sensitivity, lower frequencies, and higher frequencies can be found on the new, highly sophisticated front panel."

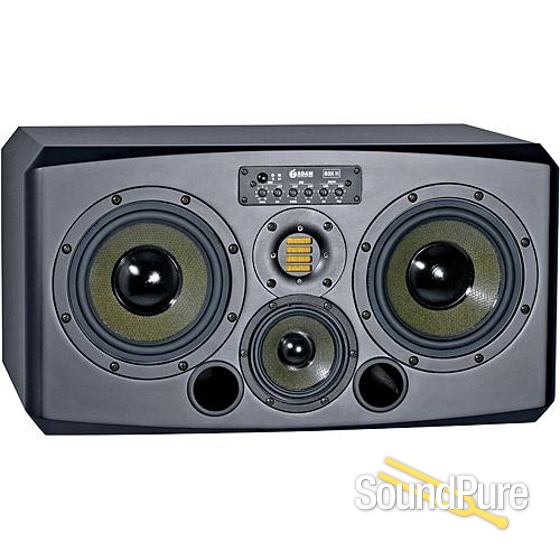

S3X-H

The S3A is one of ADAM?s most famous models and is found in many of the most prestigious recording studios all over the world. The successor of this world famous model is the S3X-H, a monitor second to none within its size and price point.

Unlike the S3A, the new X-model incorporates a 4" HexaCone-midrange as part of the redesigned construction to further improve the musically most important midrange. This new design provides more detail with improved radiation characteristics while presenting a musically coherent sound.

To produce deep, tight bass both woofers now work within the same frequency range and radiate symmetrically. This allows for a problem free installation in any multi-channel application.
