A 2 slot 500-series preamp/compressor combo!

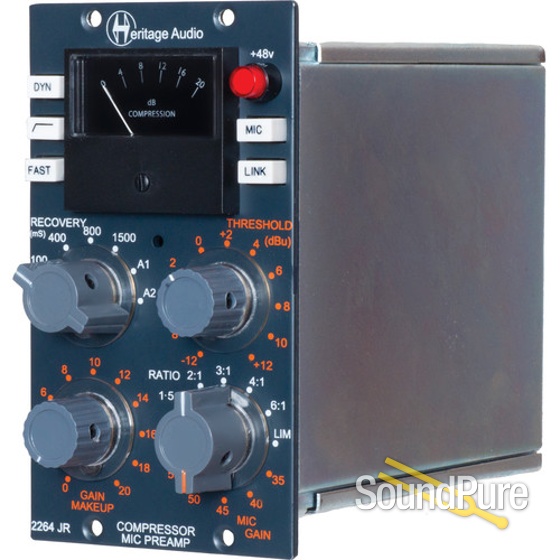

Giving you both a 2264E-style compressor and 1073-style mic preamp in a 2-slot 500 series unit, the 2264JR 500 Series Compressor and Microphone Preamplifier from Heritage Audio has a fully discrete Class A signal path, and is transformer balanced. The compressor is based on key components and the schematics from the company's 2264E rackmount compressor, while the 1073-style preamp provides up to 60 dB of gain. All rotary controls on the unit are stepped for precise recall. It provides discrete inputs for mic and line level signals. Please note, the compressor and mic preamp modes cannot be used simultaneously.
Gain reduction meter: shows the compression amount up to 20 dB
DYN switch: enables compression functions
High pass switch: enables high pass filter on the sidechain circuit
MIC switch: enables mic input and overrides compression / Line input functions
Compress recovery switch: switches between 6 time constant options, 100, 400, 800, 1500 ms, Auto1 (100 ms on peaks, 2 seconds on program material) and Auto2 (50 ms on peaks, 5 seconds on program)
Compress threshold stepped control: sets the minimum level at what compression happens, from +12 dBu down to -12 dBm in variable "smart" steps)
Compress ratio switch: allows the user to choose between 5 different compression ratios, 1.5, 2, 3, 4 and 6:1, and a LIMIT option
MIC gain stepped control: in 5 dB steps from 35 to 60 dB
Gain makeup stepped control: In 2 dB steps from 0 to 20 dB
LINK switch: allows the module to be linked to compression bus
Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.
Input Impedance | Microphone Input (Transformer Balanced and Floating): 1200 ohms Line Input (Transformer Balanced and Floating) |
Output Impedance | <75 ohms, transformer balanced and floating, 600 ohms terminated |
Maximum Output | >+26 dBm , 600 ohms terminated |
THD | <0.025% at 1 kHz, <0.05% at 100 Hz |
Frequency Response | 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) |
Gain | Maximum Microphone Gain: 60 dB Maximum Line Gain: 20 dB |
Power Consumption | Maximum Power Consumption: <110 mA @+-16VDC |
Packaging Info | |
---|---|
Package Weight | 3.75 lb |
Box Dimensions (LxWxH) | 10.0 x 7.9 x 6.3" |
