The NEW SX-Series
The new SX-Series is based on ADAM's highly acclaimed S-Series. However, it is not a simple revision of existing models but a fundamental transformation with no details having been overlooked and every sound crucial aspect has been evaluated. All transducers, drivers and electronics have been redesigned. The result is much more than an improvement, it is a quantum leap in professional monitoring.
X-ART & newly developed broadband amplifier
All models of the SX-Series are equipped with the new X-ART tweeter. The X-ART tweeter has a 4dB higher efficiency, a 3dB higher maximum sound pressure level, and an increase in frequency response up to 50 kHz. The newly designed broadband A/B amplifier has been developed by ADAM to perfectly match the needs and capabilities of the X-ART tweeter. The entire range of sound can be heard as never before.
New HexaCone-woofers
The new HexaCone-woofers are designed with larger and longer voice coils that deliver more linear excursion for higher SPL max. values. A stronger magnetic structure is added as well for an optimum in efficiency and accuracy.
Optional digital input and magnetical shielding
All SX-models (except the S1X) can be optionally retrofitted with a 24 bit/192 kHz D/A Converter featuring an AES/EBU (XLR) and a SPDIF (RCA) inputs as well as a R/L/Mono switch.
All models can optionally be magnetically shielded.
The front panel (from S2X upwards)
Six controls to change the settings for input sensitivity, lower frequencies, and higher frequencies can be found on the new, highly sophisticated front panel."

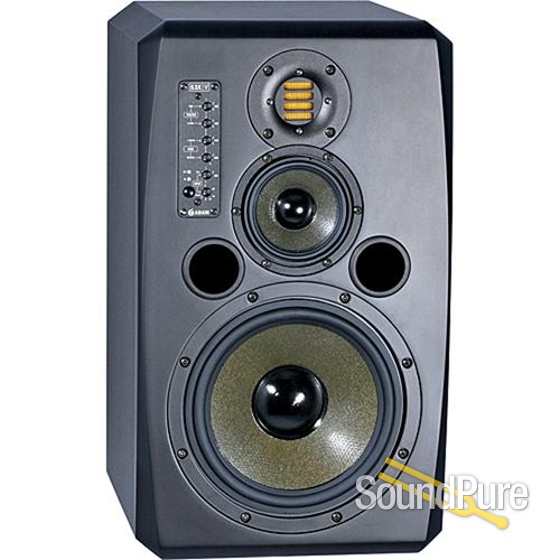

S3X-V
Using the newly developed 4" HexaCon-midrange and 9" HexaCone-woofer combined together with the X-ART tweeter creates the unique S3X-V control monitor.
A step up over the smaller models, the S3X-V is capable of producing more power and volume along with a more detailed and homogeneous sound that will impress even the most experienced sound engineer. Whether the complex sonic images of an orchestra or the smooth tone of a jazz trio, the S3X-V reveals even the finest nuances of any material. The driver assembly of the S3X-V allows long time, non-fatiguing listening sessions.
Woofer
Number:1
Basket:9"
Cone material:HexaCone
Midrange
Number:1
Type:Cone driver
Basket:4.5"
Cone material:HexaCone
Tweeter
Number:1
Type:Xart
Diaphragm area:4"
Built-in Amplifiers
Woofer:2
Type:PWM
Amp. power RMS / music: 250 W / 350 W
Midrange:1
Type:PWM
Amp. power RMS / music:250 W / 350 W
Tweeter:1
Type:A/B
Amp. power RMS / music: 50 W / 100 W
